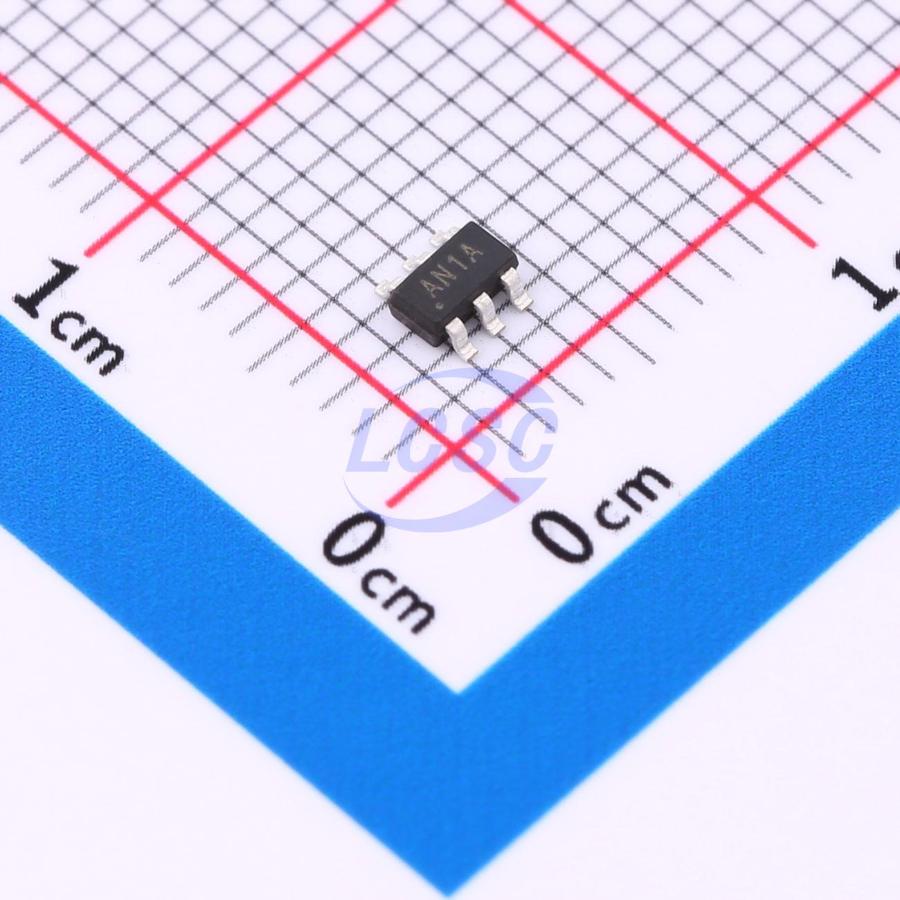

SN74LVC2G34DB(LX)
1.65V~5.5V 1 2 6.7ns@3.3V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive
Dual Buffer
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC2G34DB(LX)
- Store part #
- C41361212
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C41361212
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.47 | ₹74.70 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.47
₹74.70
excl. GST
₹88.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC2G34DB(LX)
₹74.70 for 10 + GST
Specifications
- Function
- Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 6.7ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
The SN74LVC2G34 provides two buffers. Inputs can be driven from either 3.3 V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V environment.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- 5V tolerant inputs for interfacing with 5V logic
- ±24 mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Specified from -40℃ to +125℃
- Packaging information: SOT-23-6/SOT-363
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC2G17DB(LX)#C22469940lingxingic · SOT-23-6 | lingxingic | SOT-23-6 | 190 | ₹8.12 · 190 in stock | View |
 | SN74LVC2G07DB(LX)#C22469956lingxingic · SOT-23-6 | lingxingic | SOT-23-6 | 2,150 | ₹8.67 · 2,150 in stock | View |
