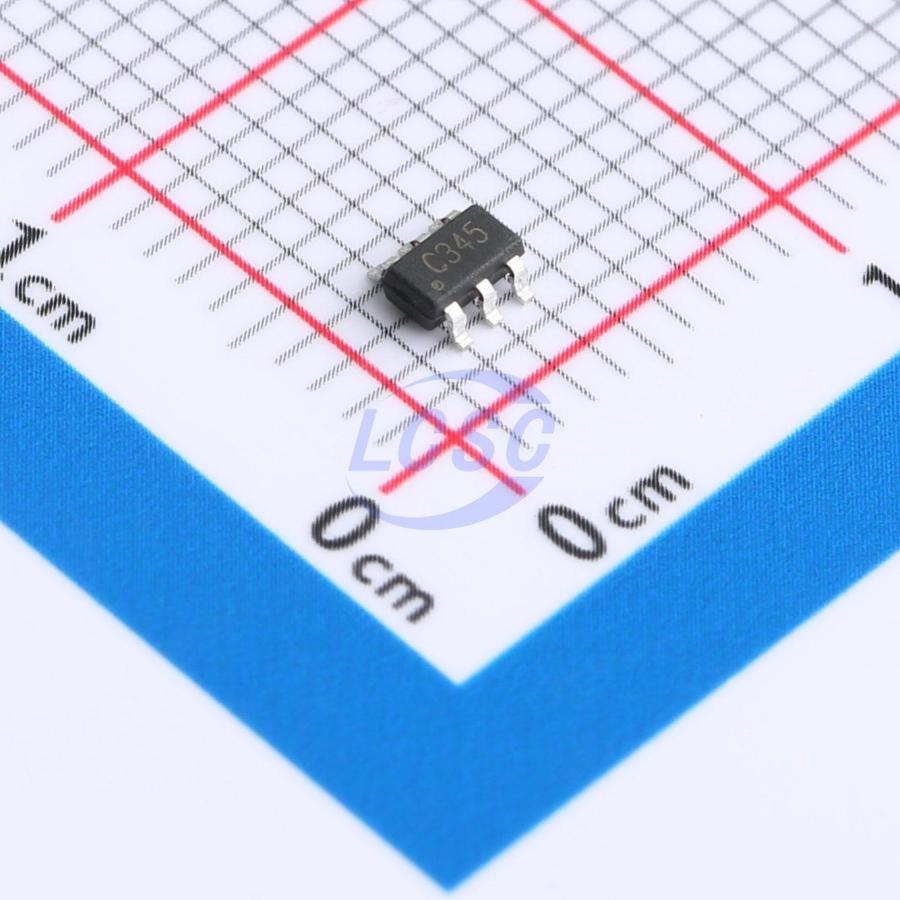

UMW

SN74LVC2G34DBVR(UMW)

StandardCMOS 1.65V~5.5V 2 1 6.6ns@5V,50pF SOT23-6 Buffers, Drivers, Receivers, Transceivers

SOT23-6RoHSActive

Dual buffer

Manufacturer: UMW
Manufacturer part #: SN74LVC2G34DBVR(UMW)
Store part #: C7394039
Package / case: SOT23-6
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

79,490 in stock

#C7394039

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹6.56	₹65.60
100+	₹5.13	₹513.00
300+	₹4.43	₹1,329.00
3,000+	₹3.89	₹11,670.00
6,000+	₹3.47	₹20,820.00
9,000+	₹3.25	₹29,250.00

Quantity (min 10, multiples of 10)

10 × ₹6.56

₹65.60

excl. GST

₹77.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC2G34DBVR(UMW)

₹65.60 for 10 + GST

Specifications

Current - Output High(IOH): 24mA
Input type: StandardCMOS
Series: 74LVC
Voltage - Supply: 1.65V~5.5V
Current - Output Low(IOL): 24mA
Output Type: Push-pull
Number of Bits per Element: 2
Channel Type: Unidirectional
Operating Temperature: -40℃~+85℃
Number of Elements: 1
Quiescent Supply Current: 10uA
Propagation Delay: 6.6ns@5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

UMW SN74LVC2G34 is a high-performance dual buffer operating over a voltage range of 1.65V to 5.5V. The device is fabricated using advanced CMOS technology to achieve ultra-high speed and strong output drive capability.

Key features

Designed for 1.65V to 5.5V VCC operation
Overvoltage-tolerant inputs
24 mA balanced output sink and source current capability
Near-zero quiescent supply current, significantly reducing system power consumption requirements
Lead-free, RoHS-compliant devices
