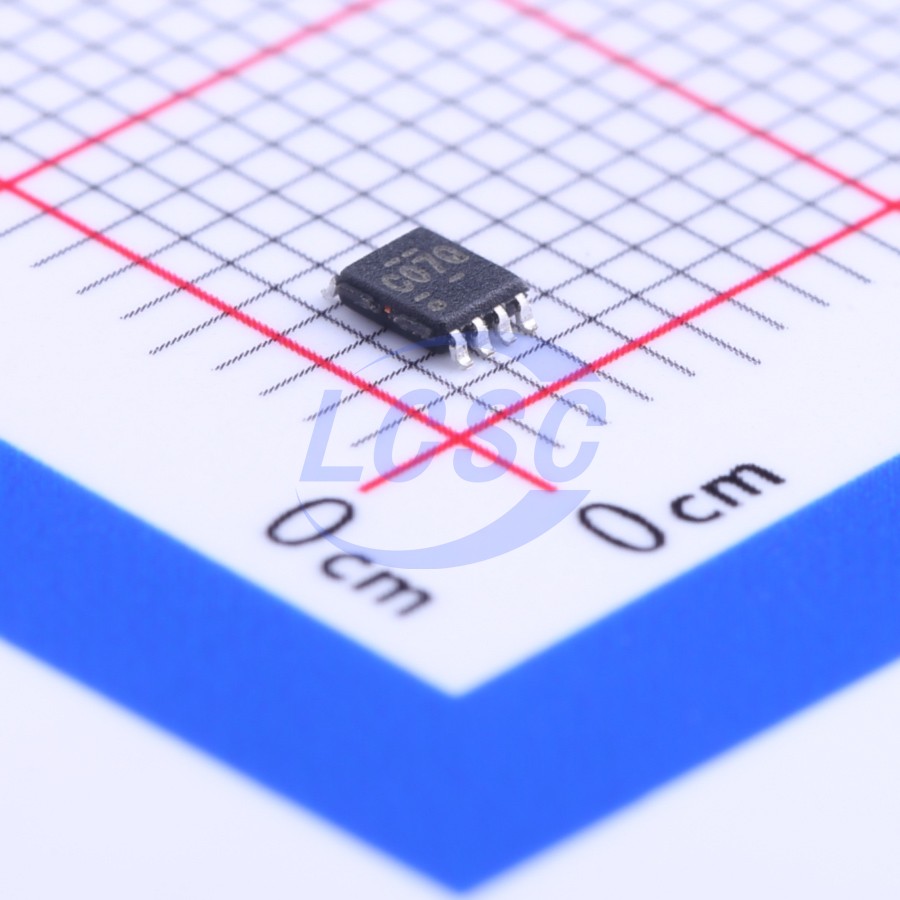

SN74LVC3G07DCUR

This triple buffer/driver is designed for 1.65 - V to 5.5 - V VCC operation. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. The output of the SN74LVC3G07 is open drain and can be connected to other open - drain outputs to implement active - low wired - OR or active - high wired - AND functions. The maximum sink current is 32 mA. This device is fully specified for partial - power - down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

• Available in the Texas Instruments NanoFree™ Package
• Supports 5 - V VCC Operation
• Max tpd of 3.7 ns at 3.3 V
• Low Power Consumption, 10 - μA Max ICC
• ±24 - mA Output Drive at 3.3 V
• Input and Open - Drain Output Accepts Voltages up to 5.5 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
• Ioff Supports Live Insertion, Partial - Power - Down Mode and Back Drive Protection
• Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22:
• 2000 - V Human - Body Model (A114 - A)
• 200 - V Machine Model (A115 - A)
• 1000 - V Charged - Device Model (C101)
