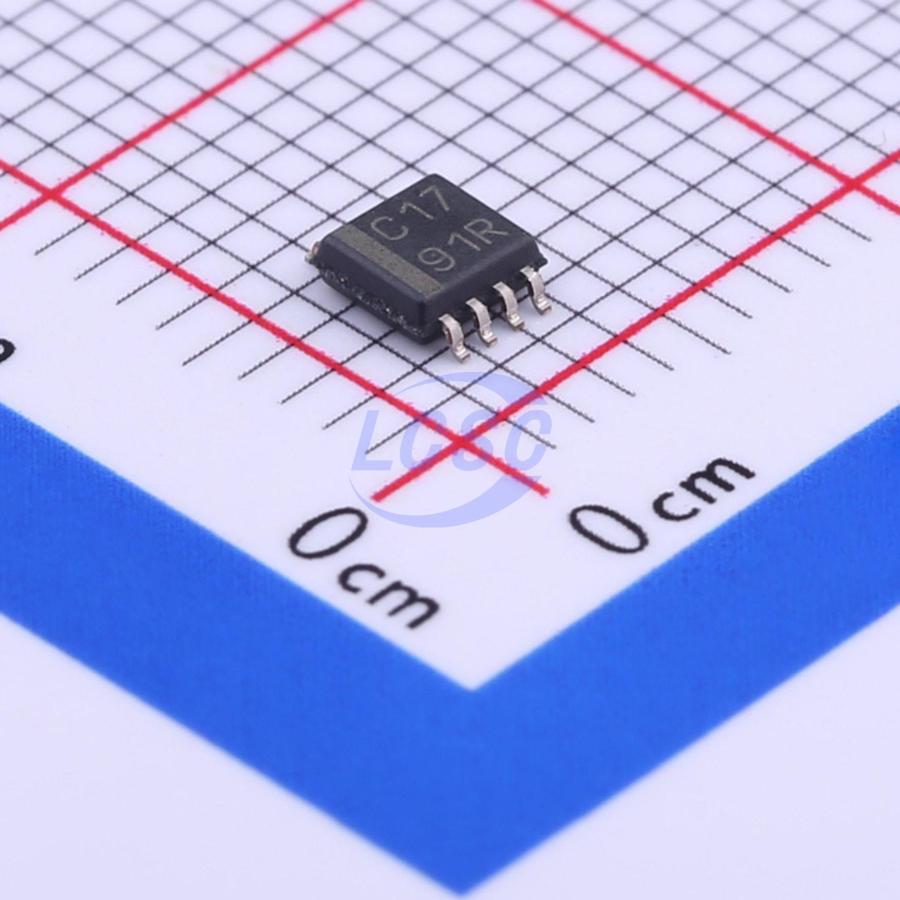

SN74LVC3G17DCTR

This triple Schmitt-trigger buffer is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC3G17 contains three buffers and performs the Boolean function Y = A. The device functions as three independent buffers but, because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. NanoFreeTM package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Key features

• Available in the Texas Instruments NanoFreeTM Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V Max
• Max tpd of 5.4 ns at 3.3V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3V
• Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25℃
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22:
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
