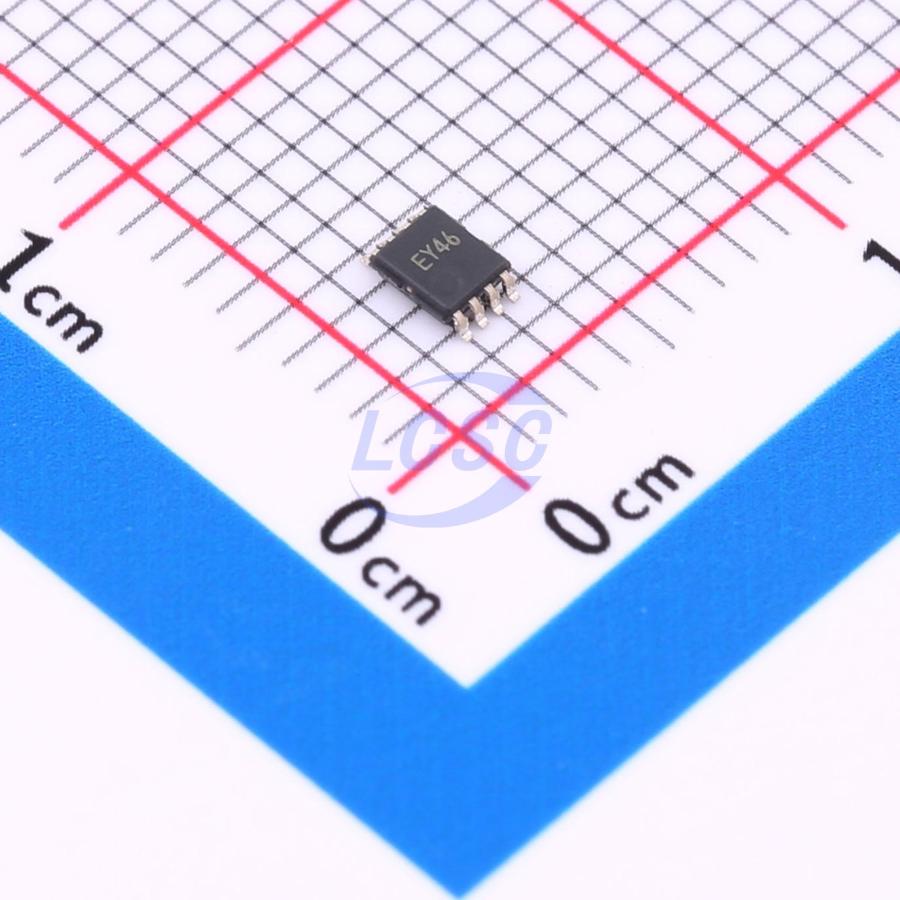

SN74LVC3G17DCU(LX)
Schmitt trigger 1.65V~5.5V 3 3 2.7ns@5V,50pF VSSOP-8 Buffers, Drivers, Receivers, Transceivers
VSSOP-8RoHSActive
Triple Buffer Schmitt Trigger
- Manufacturer
- lingxingic
- Manufacturer part #
- SN74LVC3G17DCU(LX)
- Store part #
- C26159247
- Package / case
- VSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,810 in stock
#C26159247
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.48 | ₹202.40 |
| 50+ | ₹31.74 | ₹1,587.00 |
| 150+ | ₹27.99 | ₹4,198.50 |
| 500+ | ₹23.32 | ₹11,660.00 |
| 3,000+ | ₹21.25 | ₹63,750.00 |
| 6,000+ | ₹19.99 | ₹1,19,940.00 |
5 × ₹40.48
₹202.40
excl. GST
₹238.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC3G17DCU(LX)
₹202.40 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 3
- Channel Type
- Unidirectional
- Number of Elements
- 3
- Propagation Delay
- 2.7ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The SN74LVC3G17 provides three non-inverting buffers with Schmitt trigger input. The input can be driven from either 3.3V or 5V devices. This feature allows the use of this device in a mixed 3.3V and 5V environment.
Key features
- Wide supply voltage range from 1.65V to 5.5V
- Inputs accept voltages to 5.5V
- ±24mA output drive at 3.0V
- High-impedance when VCC = 0V
- Temperature range: -40°C to +125°C
