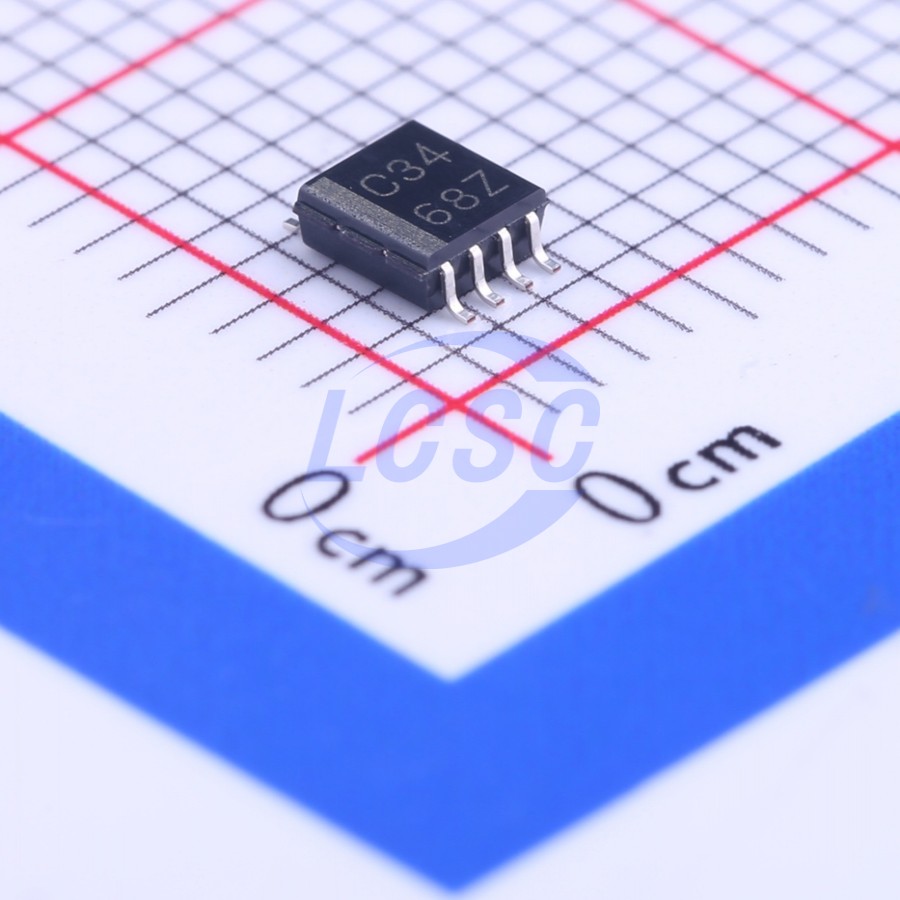

SN74LVC3G34DCTR

1.65V~5.5V 1 3 1.4ns@3.3V,50pF MSOP-8-2.8mm Buffers, Drivers, Receivers, Transceivers RoHS

MSOP-8-2.8mmROHS3 CompliantActive

Triple Buffer Gate

Manufacturer: TI
Manufacturer part #: SN74LVC3G34DCTR
Store part #: C139356
Package / case: MSOP-8-2.8mm
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,168 in stock

#C139356

Stock & price checked 16 h ago

Quantity	Unit price	Pack price
1+	₹89.66	₹89.66
10+	₹75.77	₹757.70
30+	₹66.00	₹1,980.00
100+	₹57.97	₹5,797.00
500+	₹55.37	₹27,685.00
1,000+	₹53.85	₹53,850.00

Quantity (min 1)

1 × ₹89.66

₹89.66

excl. GST

₹105.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LVC3G34DCTR

₹89.66 for 1 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Function: Power-off isolation;Level shifting
Current - Output High(IOH): 24mA
Series: 74LVC
Current - Output Low(IOL): 32mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 3
Propagation Delay: 1.4ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.139 g

Overview

The SN74LVC3G34 device is a triple buffer gate designed for 1.65-V to 5.5-V VCC operation. The SN74LVC3G34 device performs the Boolean function Y = A in positive logic. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

AV Receivers
Audio Docks: Portable
Blu-ray Players and Home Theaters
DVD Recorders and Players
Embedded PCs
MP3 Players and Recorders (Portable Audio)
Personal Digital Assistant (PDA)
Power: Telecom/Server
AC/DC Supply: Single
Controller: Analog and Digital
Solid-State Drive (SSD): Client and Enterprise
TV: LCD/Digital and High-Definition (HDTV)
Tablets: Enterprise
Video Analytics: Servers
Wireless Headsets, Keyboards, and Mice

Key features

Available in the NanoFree Package
Supports 5.5-V VCC Operation
Inputs Accept Voltages to 5.5 V
Max tpd of 4.1 ns at 3.3 V
Low Power Consumption, 10-μA Maximum ICC
±24-mA Output Drive at 3.3 V
Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down to the VCC Level
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22: 2000-V Human Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
