TIDatasheet (PDF)

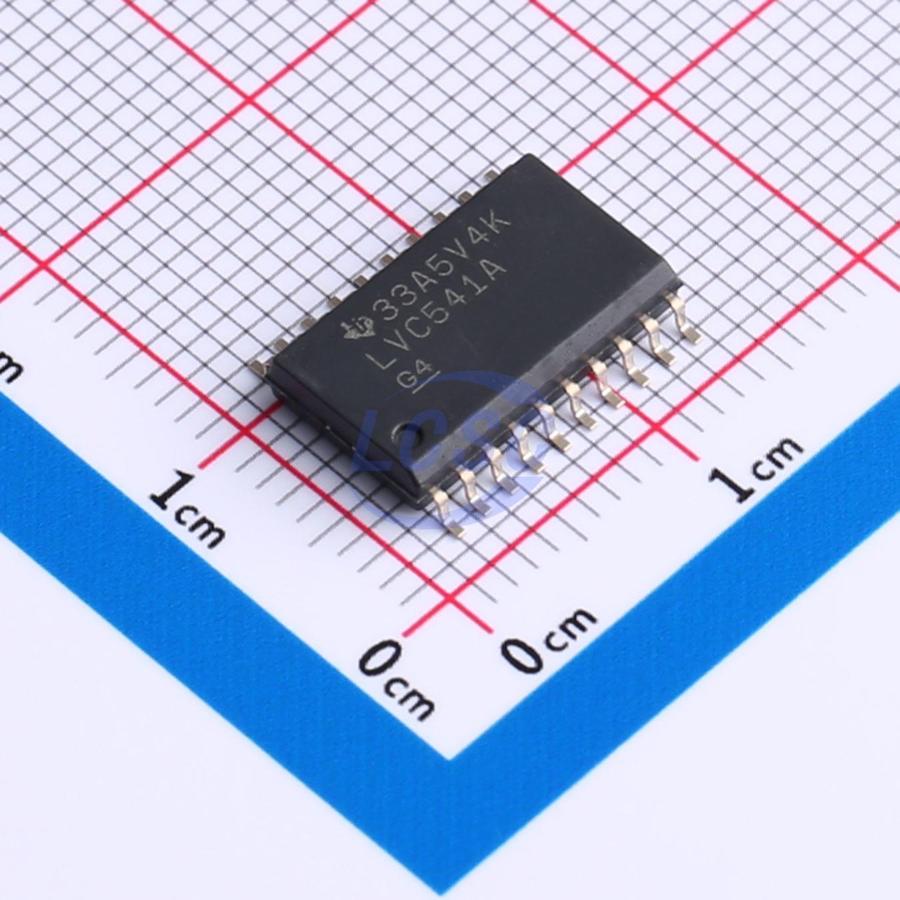

SN74LVC541ADWR
1.65V~3.6V 8 1 5.1ns@3.3V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Octal Buffers/Drivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC541ADWR
- Store part #
- C2652110
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,693 in stock
#C2652110
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.79 | ₹146.79 |
| 10+ | ₹120.99 | ₹1,209.90 |
| 30+ | ₹107.98 | ₹3,239.40 |
| 100+ | ₹95.19 | ₹9,519.00 |
| 500+ | ₹87.60 | ₹43,800.00 |
| 1,000+ | ₹83.48 | ₹83,480.00 |
1 × ₹146.79
₹146.79
excl. GST
₹173.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC541ADWR
₹146.79 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5.1ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.79 g
Overview
The SN54LVC541A octal buffer/driver is designed for 2.7-V to 3.6V VCC operation, and the SN74LVC541A octal buffer/driver is designed for 1.65V to 3.6V VCC operation.
Applications
- Servers
- PCs and Notebooks
- Network Switches
- Wearable Health and Wellness Devices
- Telecom Infrastructures
- Electronic Points of Sale
Key features
- Operate From 1.65V to 3.6V
- Inputs Accept Voltages to 5.5V
- Max tpd of 5.1 ns at 3.3V
- Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
- Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25℃
- Support Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3V VCC)
- Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
- On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
