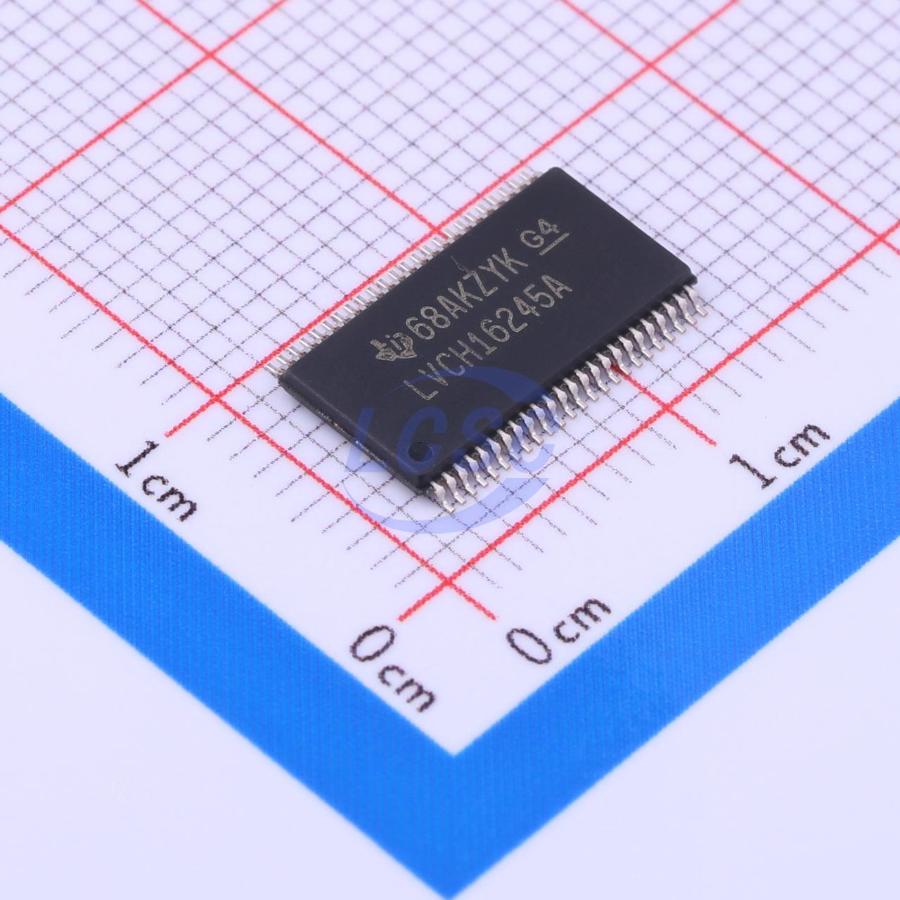

SN74LVCH16245ADGGR

1.65V~3.6V 16 2 4ns@3.3V,50pF TSSOP-48-6.2mm Buffers, Drivers, Receivers, Transceivers RoHS

TSSOP-48-6.2mmROHS3 CompliantActive

16-bit Bus Transceiver With 3-state Outputs

Manufacturer: TI
Manufacturer part #: SN74LVCH16245ADGGR
Store part #: C7036
Package / case: TSSOP-48-6.2mm
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,932 in stock

#C7036

Stock & price checked 24 h ago

Quantity	Unit price	Pack price
1+	₹171.94	₹171.94
10+	₹153.73	₹1,537.30
30+	₹136.39	₹4,091.70
100+	₹123.37	₹12,337.00
500+	₹118.17	₹59,085.00
1,000+	₹115.56	₹1,15,560.00

Quantity (min 1)

1 × ₹171.94

₹171.94

excl. GST

₹202.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

SN74LVCH16245ADGGR

₹171.94 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 1.65V~3.6V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 20uA
Function: Power-off isolation;Bus hold;Level shifting;Output enable
Current - Output High(IOH): 24mA
Series: 74LVCH
Current - Output Low(IOL): 24mA
Number of Bits per Element: 16
Channel Type: Bidirectional
Number of Elements: 2
Propagation Delay: 4ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.427 g

Overview

This 16- bit (dual- octal) noninverting bus transceiver is designed for 1.65- V to 3.6- V VCC operation. The SN74LVCH16245A device is designed for asynchronous communication between data buses. This device can be used as two 8- bit transceivers or one 16- bit transceiver. Active bus- hold circuitry holds unused or undriven data inputs at a valid logic state.

Applications

Electronic Points of Sale
Test and Measurement
Wearable Health and Fitness Devices
Tablets

Key features

Operates From 1.65 V to 3.6 V
Inputs Accept Voltages to 5.5 V
Max tpd of 4 ns at 3.3 V
Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃
Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC)
Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Bus Hold on Data Inputs Eliminates the Need for External Pullup or Pulldown Resistors
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
