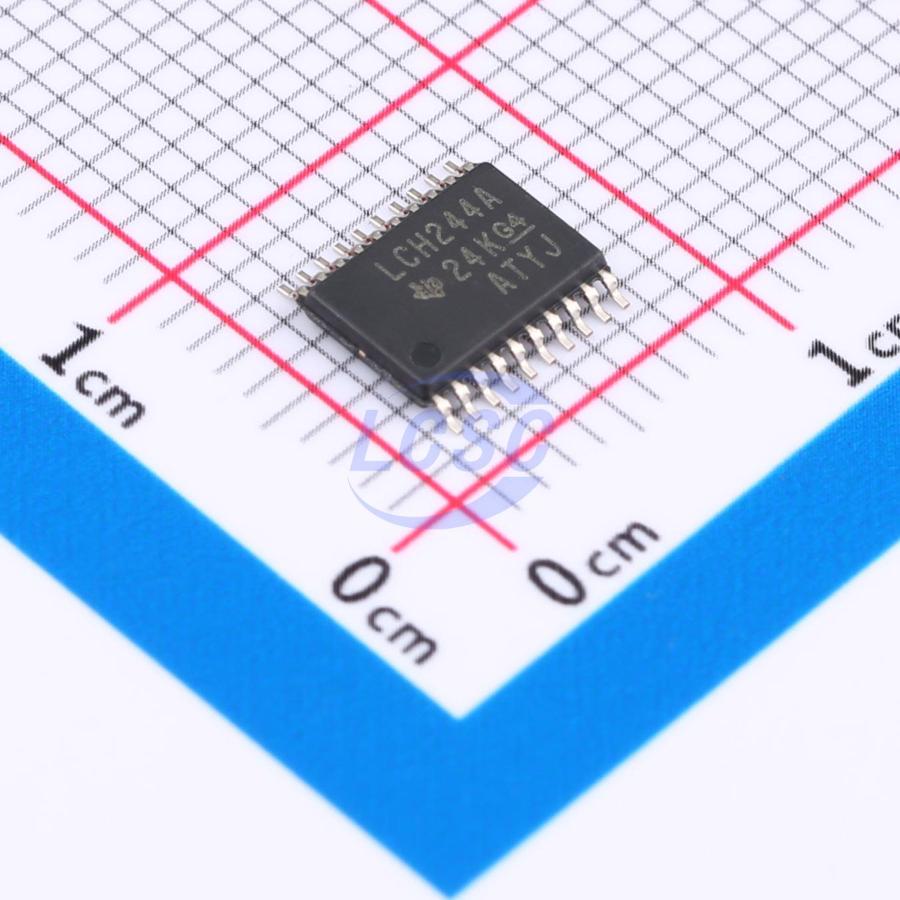

SN74LVCH244APWR

The SN54LVCH244A octal buffer/line driver is designed for 2.7-V to 3.6-V VCC operation, and the SN74LVCH244A octal buffer/line driver is designed for 1.65-V to 3.6-V VCC operation. These devices are organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, these devices pass data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators in a mixed 3.3-V/5-V system environment. These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Applications

• Mixed-voltage system level shifting
• Signal buffering
• Line driving

Key features

• Operate From 1.65 V to 3.6 V
• Inputs Accept Voltages to 5.5 V
• Max tpd of 5.9 ns at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃
• Support Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-VCC)
• Ioff Supports Partial-Power-Down Mode Operation
• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Latch-Up Performance Exceeds 250 mA Per JESD 17
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model (A114-A)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
