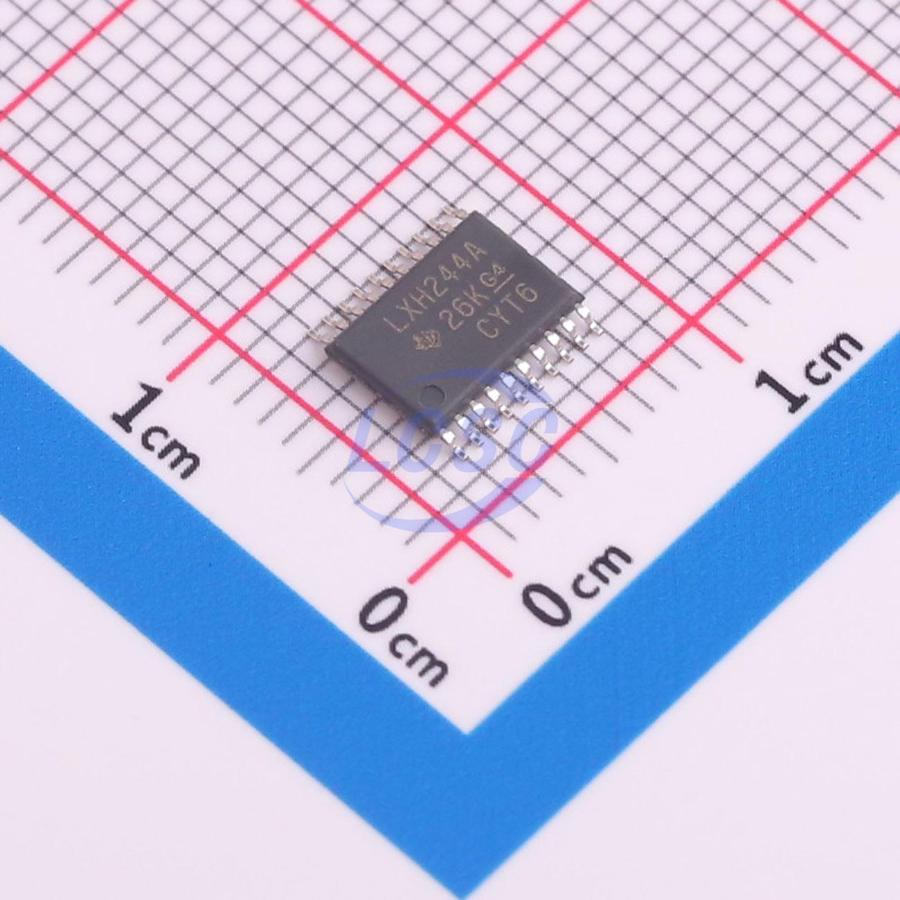

SN74LVTH244APWR

These octal buffers and line drivers are designed specifically for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. The 'LVTH244A devices are organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the devices pass data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended. These devices are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Applications

• Interface conversion between 3.3V and 5V systems
• Hot-insertion applications

Key features

• Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V Vcc)
• Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
• Support Unregulated Battery Operation Down to 2.7V
• Ioff and Power-Up 3-State
• Support Hot Insertion
• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
• Latch-Up Performance Exceeds 500 mA Per JESD 17
• ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A)
