TIDatasheet (PDF)

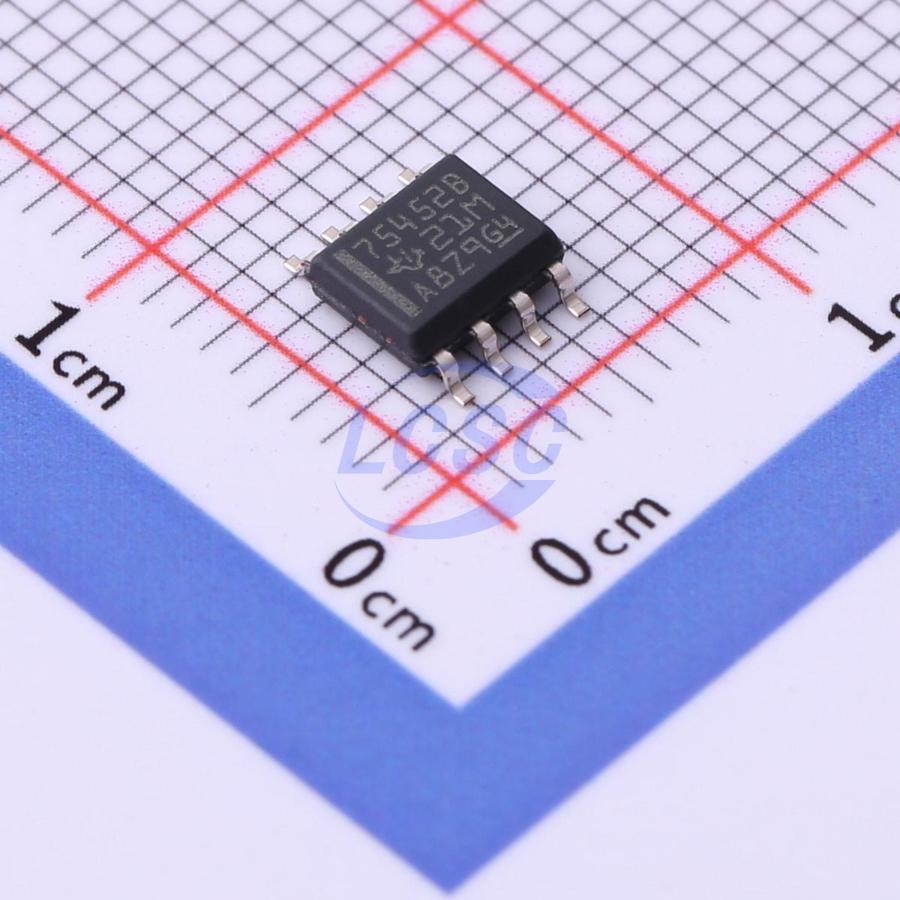

SN75452BDR
TTL-compatible CMOS 4.75V~5.25V 2 2 35ns@5V,15pF SOIC-8 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-8ROHS3 CompliantActive
Dual-Peripheral Drivers for High-Current, High-Speed Switching
- Manufacturer
- TI
- Manufacturer part #
- SN75452BDR
- Store part #
- C2861730
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,236 in stock
#C2861730
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.82 | ₹87.82 |
| 10+ | ₹71.98 | ₹719.80 |
| 30+ | ₹65.26 | ₹1,957.80 |
| 100+ | ₹56.81 | ₹5,681.00 |
| 500+ | ₹47.71 | ₹23,855.00 |
| 1,000+ | ₹45.33 | ₹45,330.00 |
1 × ₹87.82
₹87.82
excl. GST
₹103.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN75452BDR
₹87.82 for 1 + GST
Specifications
- Input type
- TTL-compatible CMOS
- Current - Output High(IOH)
- 100uA
- Series
- SN7545xB
- Voltage - Supply
- 4.75V~5.25V
- Output Type
- Open Collector
- Current - Output Low(IOL)
- 300mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- 0℃~+70℃
- Propagation Delay
- 35ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The SN5545xB and SN7545xB devices are dualperipheral drivers designed for use in systems that employ TTL logic. This family is functionally interchangeable with and replaces the SN75450 family and the SN75450A family devices manufactured previously. The speed of the devices is equal to that of the SN75450 family, and the parts are designed to ensure freedom from latch - up. Diodeclamped inputs simplify circuit design. The SNx5451B, SNx5452B, SNx5453B, and SNx5454B devices are dual peripheral AND, NAND, OR, and NOR drivers, respectively (assuming positive logic), with the output of the logic gates internally connected to the bases of the npn output transistors.
Applications
- High - Speed Logic Buffers Power Drivers
- Lamp Drivers
- LED Drivers
- Line Drivers Memory Drivers
Key features
- Characterized for Use to 300 mA
- High - Voltage Outputs up to 30 V
- No Output Latch - Up at 20 V (After Conducting 300 mA)
- High - Speed Switching
- Open - Collector Outputs
- Circuit Flexibility for Varied Applications
- TTL - Compatible Diode - Clamped Inputs
- Standard Supply Voltages
