TDSEMICDatasheet (PDF)

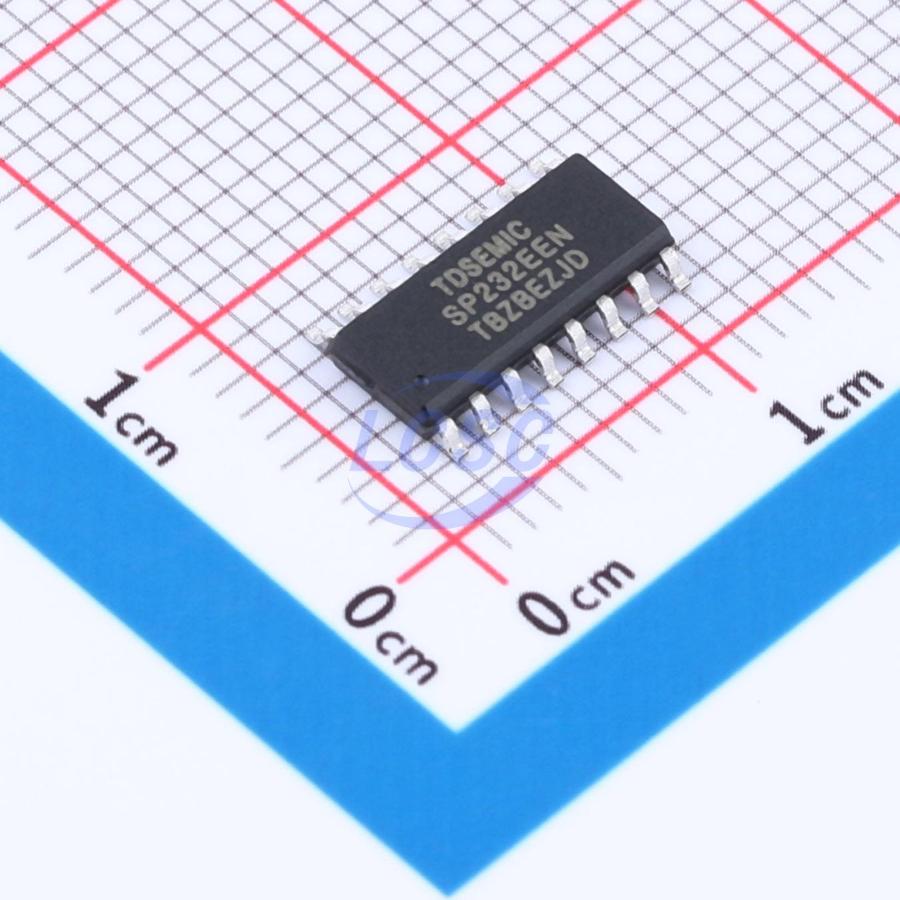

SP232EEN-TD
4.5V~5.5V Transceiver 120Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Dual channel RS-232 Drivers/Receivers
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SP232EEN-TD
- Store part #
- C42422073
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,425 in stock
#C42422073
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.50 | ₹202.50 |
| 50+ | ₹31.79 | ₹1,589.50 |
| 150+ | ₹28.07 | ₹4,210.50 |
| 500+ | ₹23.42 | ₹11,710.00 |
| 2,500+ | ₹21.35 | ₹53,375.00 |
| 5,000+ | ₹20.11 | ₹1,00,550.00 |
5 × ₹40.50
₹202.50
excl. GST
₹238.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP232EEN-TD
₹202.50 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.284 g
Overview
The SP232EEN is a dual driver/receiver of RS-232 standard with a single supply voltage and bipolar output voltage of the transmitter formed by a built-in voltage multiplying generator on four 1.0 μF external capacitors, designed for use in state-of-the-art high performance computing systems, high-speed electronic devices with high reliability of information exchange between remote objects. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable Computers
- Battery-Powered RS-232 Systems
- Interface Translation
- Low-Power Modems
- Terminals
Key features
- Output voltage levels are compatible with input levels of CMOS and TTL integrated circuits
- Meets All EIA/TIA-232E and V.28/V.24 Specifications
- Supply voltage range from 5.5V
- Low input current: 1.0 μA at 25°C
- Output current 30mA
- Available in SOP-16 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX232ECSE-TD#C42422007TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 320 | ₹51.50 · 320 in stock | View |
 | MAX232CDR-TD#C42422004TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 904 | ₹52.38 · 904 in stock | View |
 | MAX232DR-TD#C42422006TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 570 | ₹47.32 · 570 in stock | View |
 | MAX232EESE-TD#C42422008TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 5,230 | ₹53.78 · 5,230 in stock | View |
 | MAX232ESE-TD#C42422009TDSEMIC · SOP-16 | TDSEMIC | SOP-16 | 3,015 | ₹28.64 · 3,015 in stock | View |
