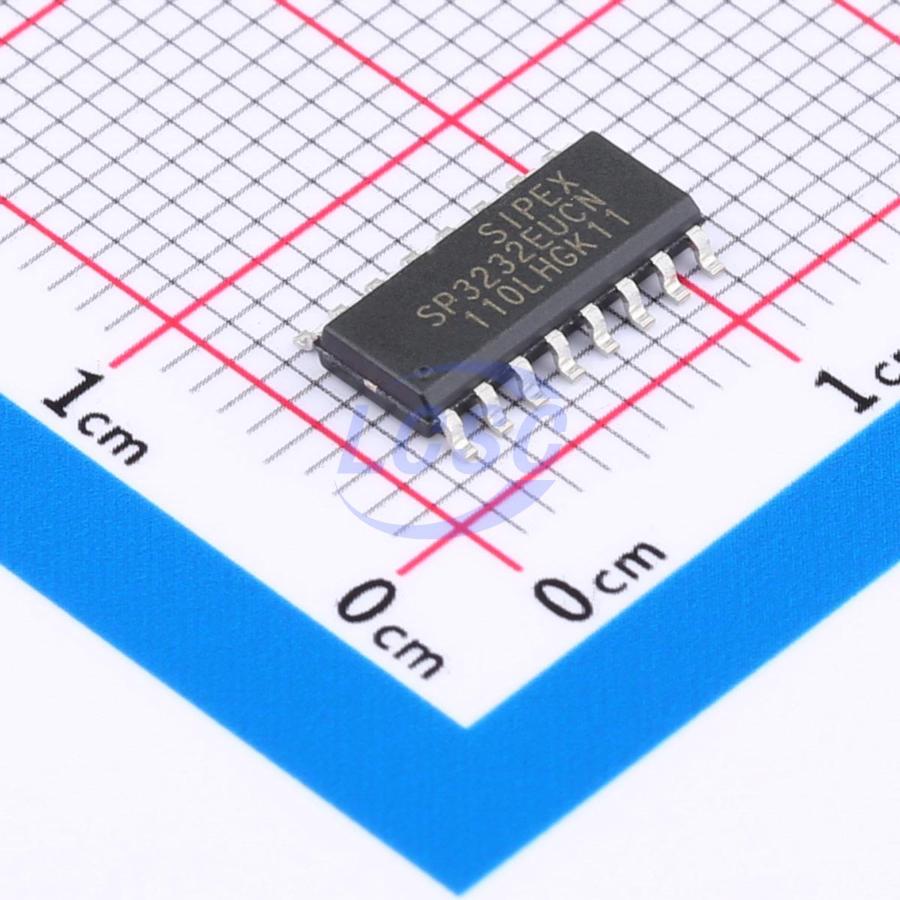

SP3232EUCN-L/TR

The SP3222EU and the SP3232EU are 2 driver, 2 receiver RS-232 transceiver solutions intended for portable or hand-held applications such as notebook or palmtop computers. Their data transmission rate of 1000 kbps meets the demands of high speed RS-232 applications. The SP3222EU/SP3232EU series has a high-efficiency, charge-pump power supply that requires only 0.1μF capacitors in 3.3V operation. This charge pump allows the SP3222EU/SP3232EU series to deliver true RS-232 performance from a single power supply ranging from +3.0V to +5.5V. The ESD tolerance of the SP3222EU/SP3232EU devices are over +/−15kV for both Human Body Model and IEC61000-4-2 Air discharge test methods. The SP3222EU device has a low-power shutdown mode where the devices' driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA.

Applications

• notebook or palmtop computers
• battery-powered, portable, or hand-held applications

Key features

• Meets true EIA/TIA-232-F Standards from a +3.0V to +5.5V power supply
• Minimum 1000kbps Data Rate
• 1μA Low Power Shutdown with Receivers active (SP3222EU)
• Interoperable with RS-232 down to a +2.7V power source
• Enhanced ESD Specifications: ±15kV Human Body Model ±15kV IEC61000-4-2 Air Discharge ±8kV IEC61000-4-2 Contact Discharge
• Ideal for Handheld, Battery Operated Applications
• Now Available in Lead Free Packaging
