TIDatasheet (PDF)

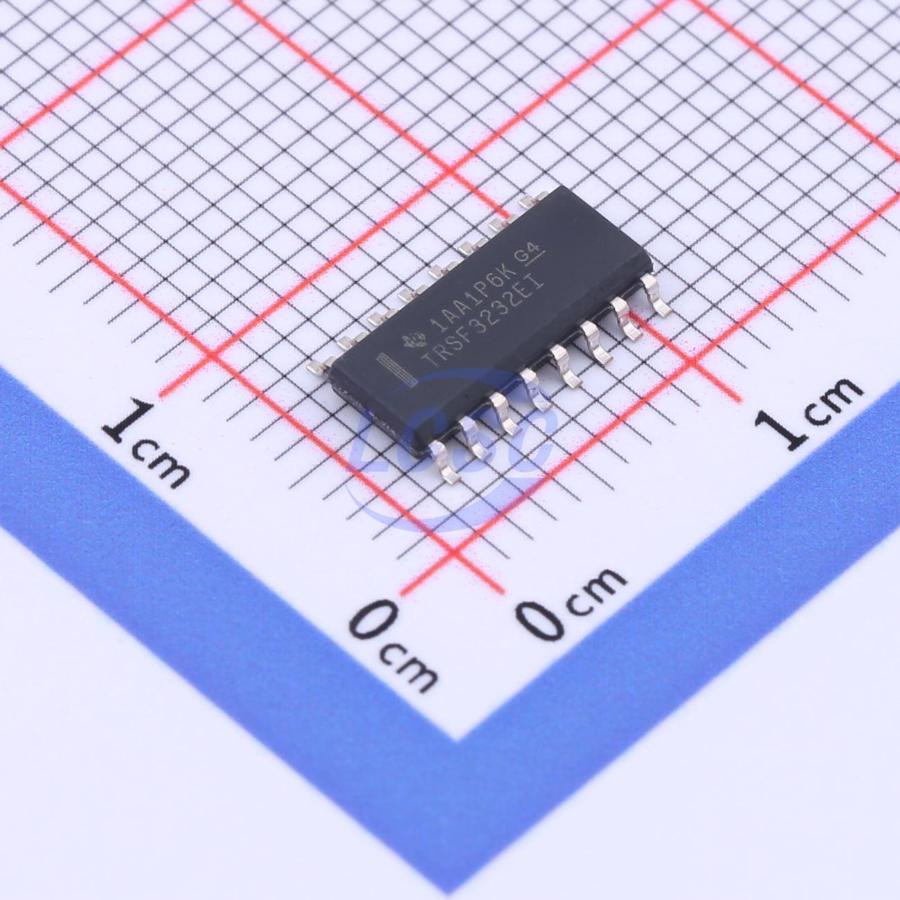

TRSF3232EIDR
Transceiver 3V~5.5V 1Mbps SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TRSF3232EIDR
- Store part #
- C1848116
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,572 in stock
#C1848116
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹185.72 | ₹185.72 |
| 10+ | ₹169.65 | ₹1,696.50 |
| 30+ | ₹159.66 | ₹4,789.80 |
| 100+ | ₹149.45 | ₹14,945.00 |
| 500+ | ₹144.88 | ₹72,440.00 |
| 1,000+ | ₹142.94 | ₹1,42,940.00 |
1 × ₹185.72
₹185.72
excl. GST
₹219.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TRSF3232EIDR
₹185.72 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
The TRSF3232E consists of two line drivers, two line receivers, and a dual charge-pump circuit, featuring pin-to-pin (serial port connection pins, including GND) ±15kV ESD protection. The device provides an electrical interface between asynchronous communication controllers and serial port connectors. The charge pump and four small external capacitors support operation from a single 3V to 5.5V supply. The TRSF3232E operates at data signaling rates up to 1Mbit/s, with driver output slew rates ranging from 14V/μs to 150V/μs.
Applications
- Industrial PC
- Wired networking
- Data center and enterprise computing
- Battery-powered systems
- PDA
- Notebook computers
- Handheld computers
- Handheld devices
Key features
- VCC supply voltage: 3V to 5.5V
- Data rate up to 1Mbit/s
- Low supply current: 300μA (typical)
- External capacitors: 4×0.1μF
- Accepts 5V logic inputs with 3.3V supply
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection on RS-232 pins
- ±15kV Human Body Model (HBM)
- ±15kV IEC 61000-4-2 air-gap discharge
- ±8kV IEC 61000-4-2 contact discharge
- QFN (3mm×3mm) package — chip-scale plastic package equivalent, 85% smaller than SOIC-16
