MaxLinearDatasheet (PDF)

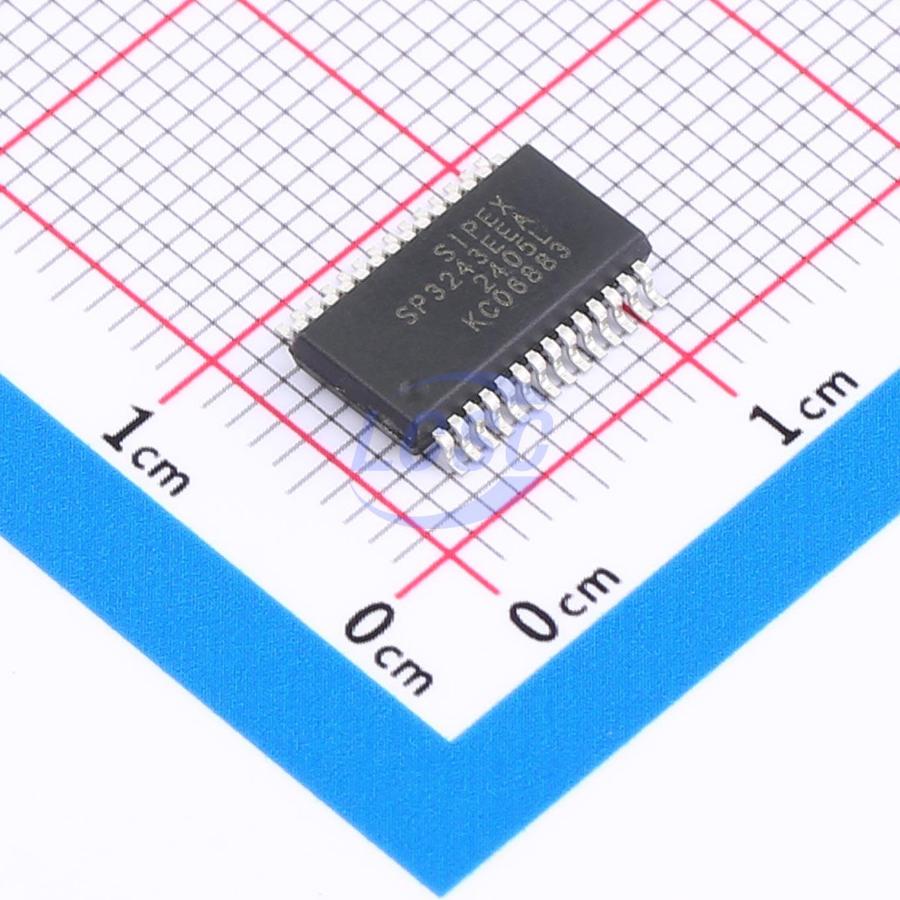

SP3243EEA-L/TR
Transceiver 3V~5.5V 120Kbps SSOP-28-208mil Drivers, Receivers, Transceivers RoHS
SSOP-28-208milROHS CompliantActive
+3.0V to +5.5V RS-232 Transceivers
- Manufacturer
- MaxLinear
- Manufacturer part #
- SP3243EEA-L/TR
- Store part #
- C6853
- Package / case
- SSOP-28-208mil
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,596 in stock
#C6853
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.85 | ₹107.85 |
| 10+ | ₹85.24 | ₹852.40 |
| 30+ | ₹73.93 | ₹2,217.90 |
| 100+ | ₹62.63 | ₹6,263.00 |
| 500+ | ₹55.88 | ₹27,940.00 |
| 1,500+ | ₹52.40 | ₹78,600.00 |
1 × ₹107.85
₹107.85
excl. GST
₹127.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
SP3243EEA-L/TR
₹107.85 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 120Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 3
- Features
- Wake-up function;Short-Circuit Protection
- Number of Receivers
- 5
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.531 g
Overview
The SP3223E and SP3243E are RS-232 transceiver solutions targeting portable and handheld applications such as notebook computers and tablet PCs. The SP3223E and SP3243E use an internal high-efficiency charge pump, requiring only 0.1 μF capacitors when operating at 3.3V. This charge pump combined with Sipex's driver architecture enables the SP3223E/SP3243E series to deliver RS-232-compliant performance from a single supply ranging from +3.3V to +5.0V. The SP3223E is a 2-driver/2-receiver device, while the SP3243E is a 3-driver/5-receiver device, making them ideal for notebook/tablet PC and PDA applications. The SP3243E includes a complementary receiver that remains active during device shutdown to monitor ring indicator signals from external devices. The AUTO ON-LINE feature allows the device to automatically "wake up" from shutdown when an RS-232 cable is connected and the attached peripheral is powered on. Otherwise, the device automatically shuts down, drawing less than 1 μA.
Applications
- Portable or handheld applications such as notebooks and PDAs
- Notebook/laptop and PDA applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WS3243FCA#C2691418NJGW · SSOP-28-208mil | NJGW | SSOP-28-208mil | 1,341 | ₹114.73 · 1,341 in stock | View |
 | SP3243EUCA-L/TR#C2671246MaxLinear · SSOP-28-208mil | MaxLinear | SSOP-28-208mil | 111 | ₹285.33 · 111 in stock | View |
 | ST3241ECPR#C2671676ST · SSOP-28-208mil | ST | SSOP-28-208mil | 5 | ₹764.68 · 5 in stock | View |
| MAX3241ECAI+T#C3200624MAXIM · SSOP-28 | MAXIM | SSOP-28 | 4 | ₹594.40 · 4 in stock | View | |
 | SP3243EBEA-L/TR#C138704MaxLinear · SSOP-28-208mil | MaxLinear | SSOP-28-208mil | 665 | ₹102.06 · 665 in stock | View |
