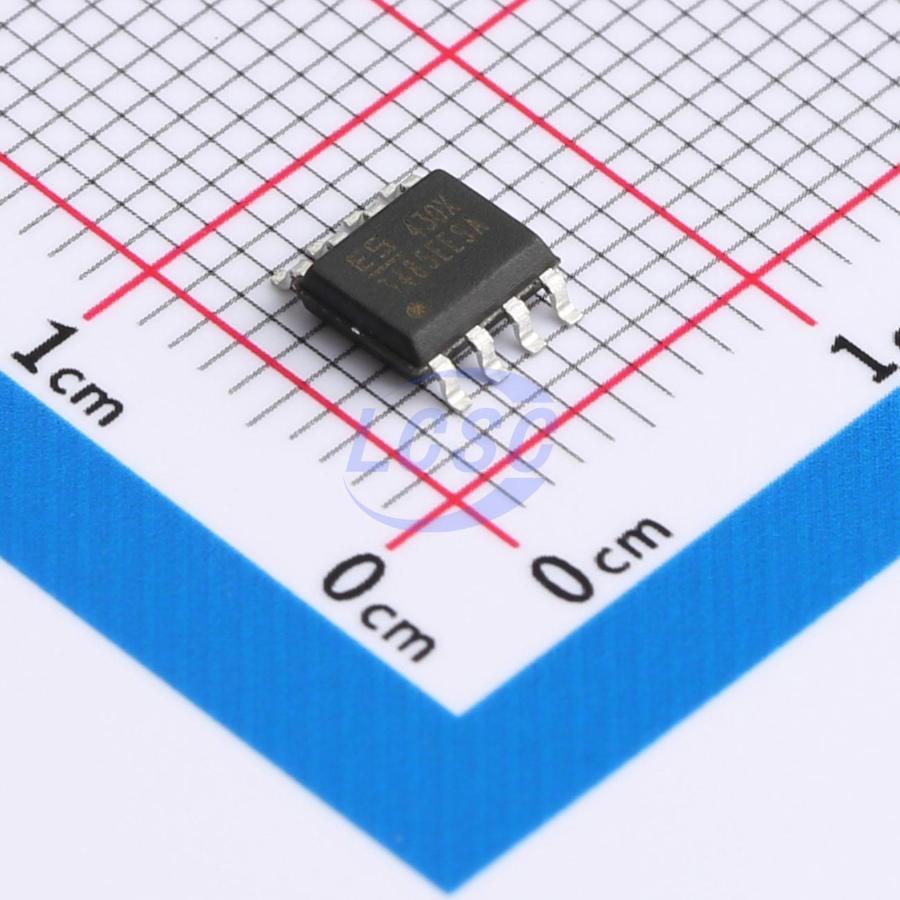

SP3485EN-L/TR
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
RS-485/RS422 Transceiver
- Manufacturer
- ElecSuper
- Manufacturer part #
- SP3485EN-L/TR
- Store part #
- C41365340
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36,620 in stock
#C41365340
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.30 | ₹141.50 |
| 50+ | ₹23.19 | ₹1,159.50 |
| 150+ | ₹20.72 | ₹3,108.00 |
| 500+ | ₹18.50 | ₹9,250.00 |
| 2,500+ | ₹14.24 | ₹35,600.00 |
| 5,000+ | ₹13.87 | ₹69,350.00 |
5 × ₹28.30
₹141.50
excl. GST
₹166.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP3485EN-L/TR
₹141.50 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 14Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode
- Number of Receivers
- 1
- Quiescent Supply Current
- 240uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
SP3485EN-L/TR is a half-duplex, low-power RS-485 transceiver that fully complies with TIA/EIA-485 standard requirements, featuring a 3.0V~5.5V wide supply voltage range, bus port ESD protection up to 15kV HBM, and a bus voltage tolerance of ±15V. It integrates one driver and one receiver, both independently enable/disable controllable. When both are disabled, the driver and receiver outputs enter a high-impedance state. With 1/8 unit load, up to 256 SP3485EN-L/TR transceivers can be connected in parallel on the same communication bus. Error-free data transmission at up to 14Mbps is supported. Operating at 3.3V, the device provides fail-safe, current limiting, and overvoltage protection.
Applications
- Bus-type networking
- Daisy-chain networking
- Bus port protection
Key features
- 3.0V~5.5V wide supply voltage range, half-duplex
- Bus port ESD protection up to 15kV HBM
- Bus fault protection voltage up to ±15V
- 1/8 unit load, supports up to 256 devices on the bus
- Driver short-circuit output protection
- Receiver open-circuit fail-safe protection
- High noise immunity
- Integrated transient voltage suppression
- Data transfer rate up to 14Mbps in electrically noisy environments
- Available in DFN3*3-8, MSOP8/VSSOP8 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3485ESA#C41365338ElecSuper · SOP-8 | ElecSuper | SOP-8 | 775 | ₹39.57 · 775 in stock | View |
 | SP3485EEN#C41365339ElecSuper · SOP-8 | ElecSuper | SOP-8 | 9,685 | ₹28.05 · 9,685 in stock | View |
 | SSP3485(ES)#C41438284ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,440 | ₹38.49 · 1,440 in stock | View |
 | MAX3485ESA+T(ES)#C41438286ElecSuper · SOP-8 | ElecSuper | SOP-8 | 765 | ₹38.01 · 765 in stock | View |
 | SP3485EIM/TR(ES)#C41438288ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,560 | ₹30.01 · 1,560 in stock | View |
