HGSEMIDatasheet (PDF)

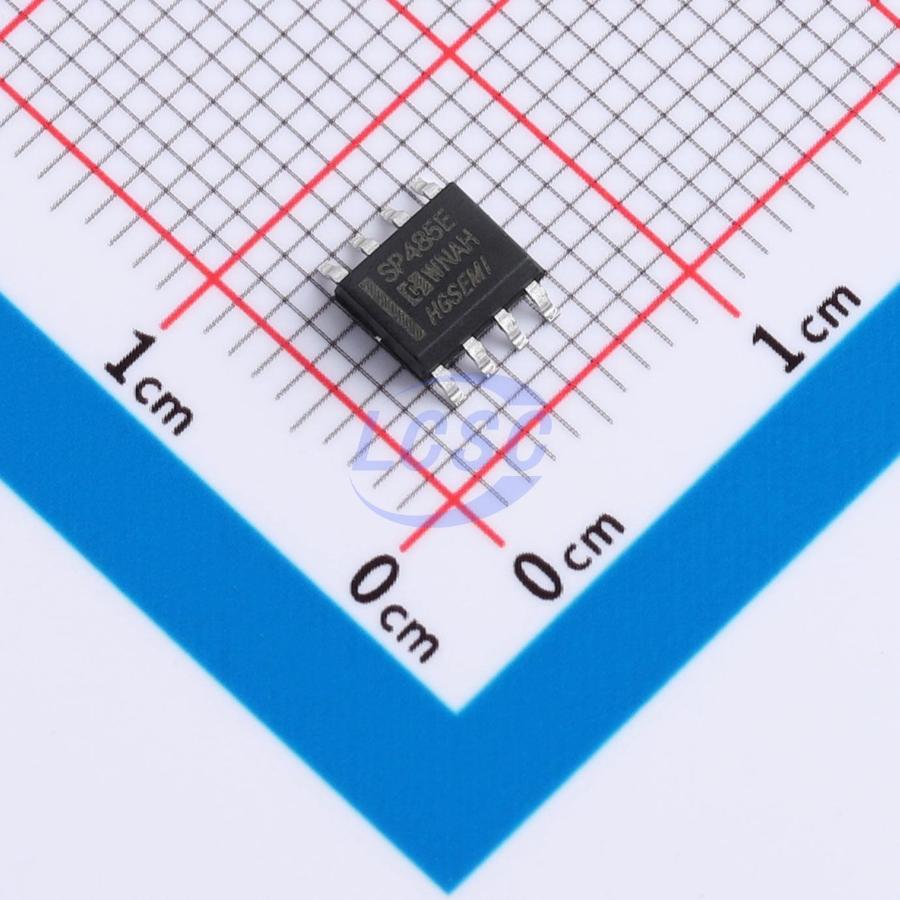

SP485EN/HG
4.5V~5.5V Transceiver 2.5Mbps 256 SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- SP485EN/HG
- Store part #
- C53049642
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C53049642
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.20 | ₹111.00 |
| 50+ | ₹17.52 | ₹876.00 |
| 150+ | ₹15.52 | ₹2,328.00 |
| 500+ | ₹13.02 | ₹6,510.00 |
| 2,500+ | ₹11.91 | ₹29,775.00 |
| 5,000+ | ₹11.25 | ₹56,250.00 |
5 × ₹22.20
₹111.00
excl. GST
₹130.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP485EN/HG
₹111.00 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 256
- ESD Protect
- ±4kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Enable shutdown;Hot-swap protection;Thermal shutdown protection;Low-power mode
- Number of Receivers
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.349 g
Overview
This device is a +5.0V single-supply RS-485/RS-422 transceiver with ±16kV ESD protection. It integrates a hot-swap feature that suppresses fault transients on the bus during power-up or hot-insertion, preventing data transmission errors. The driver slew rate is unconstrained, supporting data rates up to 2.5Mbps. Designed for half-duplex communication, the receiver features 1/8 unit load high input impedance, allowing up to 256 transceivers to be connected in parallel on the same bus. It is available in an 8-pin SOP package with both commercial and industrial temperature range options.
Applications
- RS-422/RS-485 communication
- Digital electric meters and water meters
- Industrial control
- Industrial embedded computers and peripherals
- Security surveillance systems
Key features
- Low-power shutdown mode
- DE and RE pins with hot-swap input structure
- +5.0V single-supply operation, bus supports up to 256 transceivers in parallel
- I/O pins with enhanced ESD protection, compliant with ±16kV IEC 61000-4-2
