TDSEMICDatasheet (PDF)

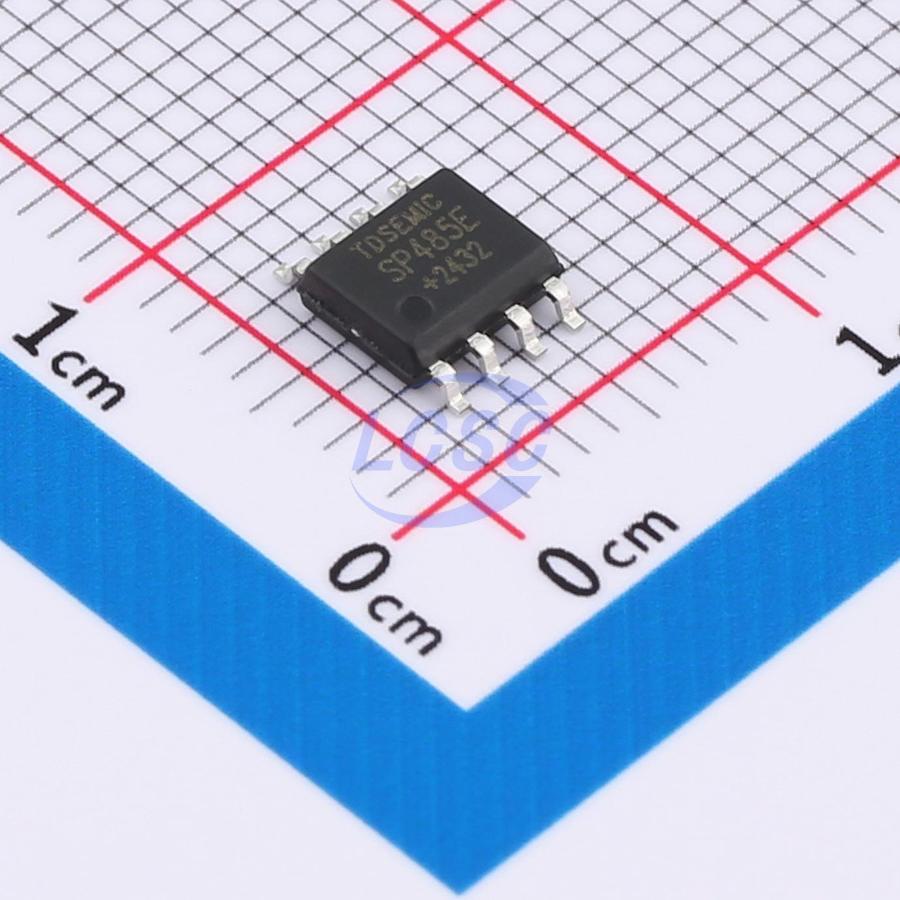

SP485EN-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
SP485EN
- Manufacturer
- TDSEMIC
- Manufacturer part #
- SP485EN-TD
- Store part #
- C41369851
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,735 in stock
#C41369851
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.44 | ₹147.20 |
| 50+ | ₹22.97 | ₹1,148.50 |
| 150+ | ₹20.19 | ₹3,028.50 |
| 500+ | ₹16.72 | ₹8,360.00 |
| 2,500+ | ₹15.19 | ₹37,975.00 |
| 5,000+ | ₹14.26 | ₹71,300.00 |
5 × ₹29.44
₹147.20
excl. GST
₹173.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP485EN-TD
₹147.20 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.151 g
Overview
The SP485ECN is a transceiver IC for RS-485 and RS-422 communication systems. The HM485 supports data transfer rates up to 2.5Mbps for both transmission and reception. The 485 operates in half-duplex mode. In addition, the 485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both the driver and receiver outputs enter a high-impedance state. The SP485ECN incorporates a failsafe function, ensuring the receiver output remains high when the input is open-circuited or short-circuited in receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level shifting
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
