TDSEMICDatasheet (PDF)

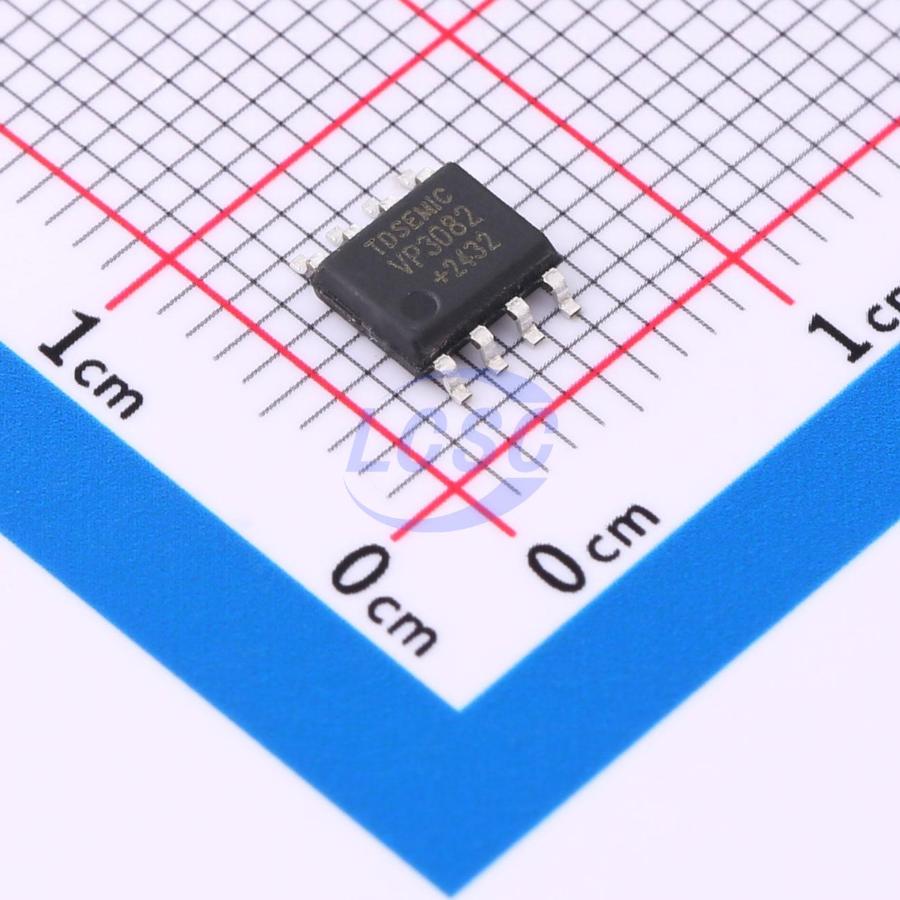

VP3082-TD
1/1 Transceiver Half RS422, RS485 SOP-8
SOP-8ROHS CompliantActive
VP3082 RS-485/RS-422 Transceiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- VP3082-TD
- Store part #
- C41369860
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,200 in stock
#C41369860
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.62 | ₹178.10 |
| 50+ | ₹27.86 | ₹1,393.00 |
| 150+ | ₹24.55 | ₹3,682.50 |
| 500+ | ₹20.41 | ₹10,205.00 |
| 2,500+ | ₹18.56 | ₹46,400.00 |
| 5,000+ | ₹17.46 | ₹87,300.00 |
5 × ₹35.62
₹178.10
excl. GST
₹210.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VP3082-TD
₹178.10 for 5 + GST
Specifications
- Voltage - Supply
- 3.3V;5V
- Type
- Transceiver
- Data Rate
- 2.5Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Nodes
- 128
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown
- Number of Receivers
- 1
- Quiescent Supply Current
- 1.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.178 g
Overview
VP3082 is a transceiver IC designed for RS-485 and RS-422 communication systems. The HM485 supports data transfer rates up to 2.5Mbps for both transmission and reception. The RS-485 operates in half-duplex mode. In addition, the RS-485 features Driver Enable (DE) and Receiver Enable (RE) pins; when disabled, both the driver and receiver outputs enter a high-impedance state. The VP3082 incorporates a failsafe function, ensuring the receiver output remains high when the input is open or short-circuited during receive mode.
Applications
- Low-power RS-485 transceiver
- Low-power RS-422 transceiver
- Level shifting
- EMI-resistant transceiver
- Industrial control LAN
Key features
- ESD protection: ±1500V - Human Body Model (HBM)
- Three-state output half-duplex bus supports up to 128 transceivers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX485ESA-TD#C41369783TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 9,030 | ₹31.71 · 9,030 in stock | View |
 | MAX487CSA-TD#C41369784TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,130 | ₹34.99 · 2,130 in stock | View |
 | MAX487ESA-TD#C41369787TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 2,305 | ₹44.57 · 2,305 in stock | View |
 | SP485EEN-TD#C41369800TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 4,435 | ₹26.68 · 4,435 in stock | View |
 | SP485EN-TD#C41369851TDSEMIC · SOP-8 | TDSEMIC | SOP-8 | 5,735 | ₹29.44 · 5,735 in stock | View |
