MaxLinearDatasheet (PDF)

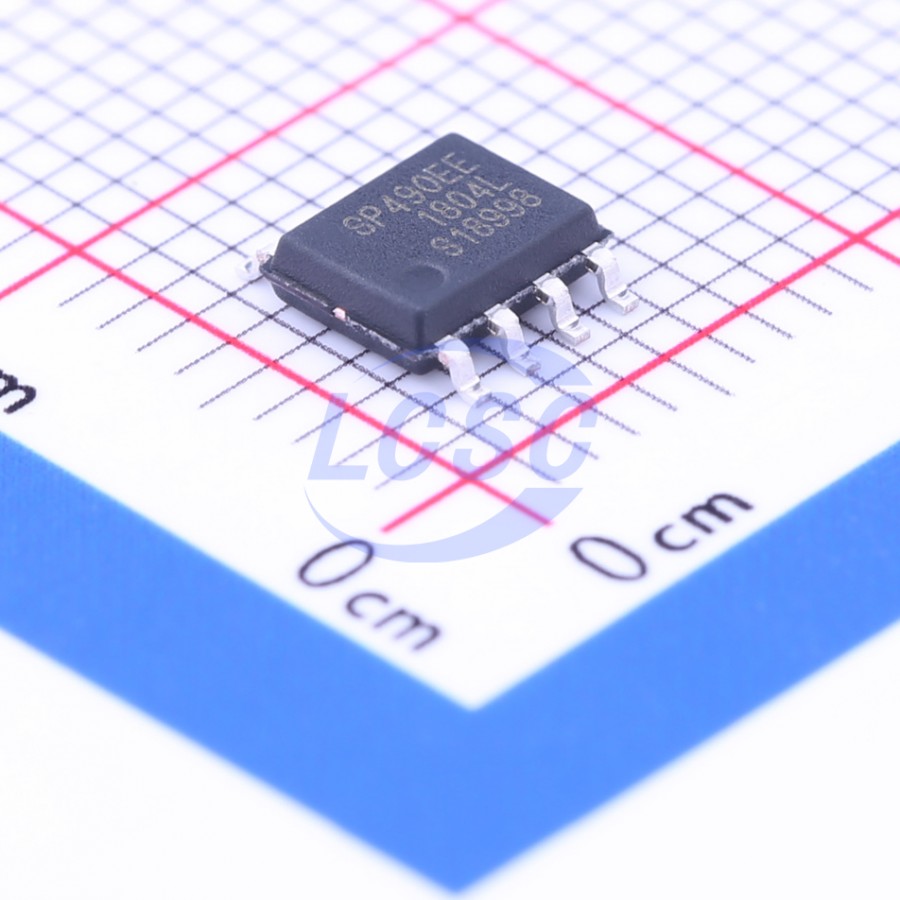

SP490EEN-L/TR
4.75V~5.25V Transceiver 10Mbps SOIC-8 Drivers, Receivers, Transceivers RoHS
SOIC-8ROHS CompliantActive
Enhanced Full Duplex RS-485 Transceivers
- Manufacturer
- MaxLinear
- Manufacturer part #
- SP490EEN-L/TR
- Store part #
- C19128
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,337 in stock
#C19128
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.85 | ₹76.85 |
| 10+ | ₹61.82 | ₹618.20 |
| 30+ | ₹54.22 | ₹1,626.60 |
| 100+ | ₹46.81 | ₹4,681.00 |
| 500+ | ₹41.58 | ₹20,790.00 |
| 1,000+ | ₹39.19 | ₹39,190.00 |
1 × ₹76.85
₹76.85
excl. GST
₹90.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SP490EEN-L/TR
₹76.85 for 1 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- Communication Mode
- Full-Duplex
- Number of Drivers
- 1
- Number of Receivers
- 1
- Quiescent Supply Current
- 900uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
Overview
The SP490E is a low power differential line driver/receiver meeting RS - 485 and RS - 422 standards up to 10Mbps. The SP491E is identical to the SP490E with the addition of driver and receiver tri - state enable lines. Both products feature ±200mV receiver input sensitivity, over wide common mode range. The SP490E is available in 8 - pin plastic DIP and 8 - pin NSOIC packages for operation over the commercial and industrial temperature ranges. The SP491E is available in 14 - pin DIP and 14 - pin NSOIC packages for operation over the commercial and industrial temperature ranges.
Key features
- Low supply voltage: +5V only
- Low-power BiCMOS process
- Enhanced ESD specifications:
- Human Body Model (HBM): ±15kV
- IEC1000-4-2 Air Discharge: ±15kV
- IEC1000-4-2 Contact Discharge: ±8kV
- Receiver input sensitivity: ±200mV
- Wide common-mode range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GB490#C2691429NJGW · SOP-8 | NJGW | SOP-8 | 450 | ₹48.41 · 450 in stock | View |
 | GB490H#C2932177NJGW · SOP-8 | NJGW | SOP-8 | 6,010 | ₹105.60 · 6,010 in stock | View |
 | CA-IF4820FS#C7422521Chipanalog · SOIC-8 | Chipanalog | SOIC-8 | 3,656 | ₹81.71 · 3,656 in stock | View |
| WS490#C2691434NJGW · SOP-8 | NJGW | SOP-8 | On request | Price on request | Quote | |
| WS491#C2691435NJGW · SOP-14 | NJGW | SOP-14 | On request | Price on request | Quote | |
