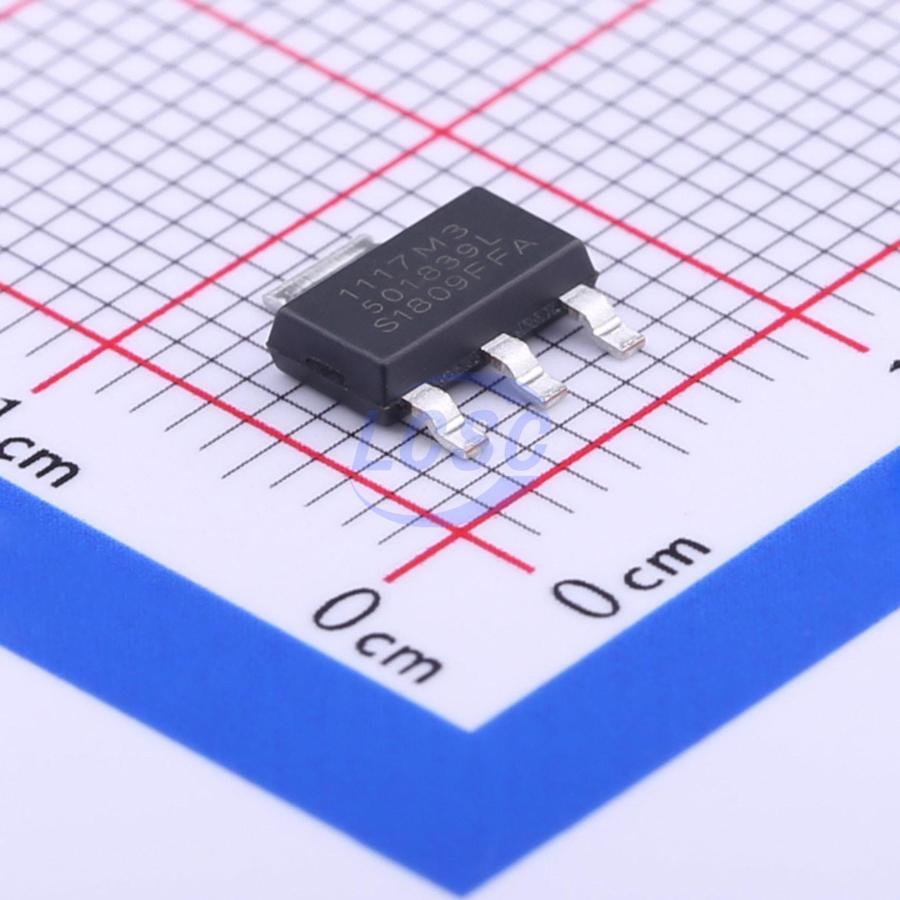

MaxLinear

SPX1117M3-L-5-0/TR

5V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223-3ROHS3 CompliantActive

800mA Low Dropout Voltage Regulator

Manufacturer: MaxLinear
Manufacturer part #: SPX1117M3-L-5-0/TR
Store part #: C21946
Package / case: SOT-223-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

40,615 in stock

#C21946

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹27.45	₹137.25
50+	₹21.45	₹1,072.50
150+	₹18.87	₹2,830.50
500+	₹15.65	₹7,825.00
2,500+	₹14.22	₹35,550.00
5,000+	₹13.36	₹66,800.00

Quantity (min 5, multiples of 5)

5 × ₹27.45

₹137.25

excl. GST

₹161.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

SPX1117M3-L-5-0/TR

₹137.25 for 5 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 5mA
Output Configuration: Positive
Operating Voltage: 12V
Output Current: 800mA
Features: Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.28 g

Overview

The SPX1117 is a low power positive-voltage regulator designed to satisfy moderate power requirements with a cost effective, small footprint solution. This device is an excellent choice for use in battery-powered applications and portable computers. The SPX1117 features very low quiescent current and a low dropout voltage of 1.1V at a full load. As output current decreases, quiescent current flows into the load, increasing efficiency. SPX1117 is available in adjustable or fixed 1.5V, 1.8V, 2.5V, 3.3V and 5V output voltages. The SPX1117 is offered in 3-pin SOT-223 and TO-263 surface mount packages. An output capacitor of 10μF provides unconditional stability while a smaller 2.2μF capacitor is sufficient for most applications.

Applications

Desktop PC Servers
Graphic/Video Cards
Industrial Equipments
Power Supplies

Key features

Guaranteed 800mA Output Current
Guaranteed 1A Peak Current
Three Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V, 3.3V and 5V
Low Quiescent Current
Low Dropout Voltage of 1.1V at 800mA
0.1% Line and 0.2% Load Regulation
Stable with 2.2μF Ceramic Capacitor
Overcurrent and Thermal Protection
Lead Free, RoHS Compliant Packages SOT223 and TO263
