STDatasheet (PDF)

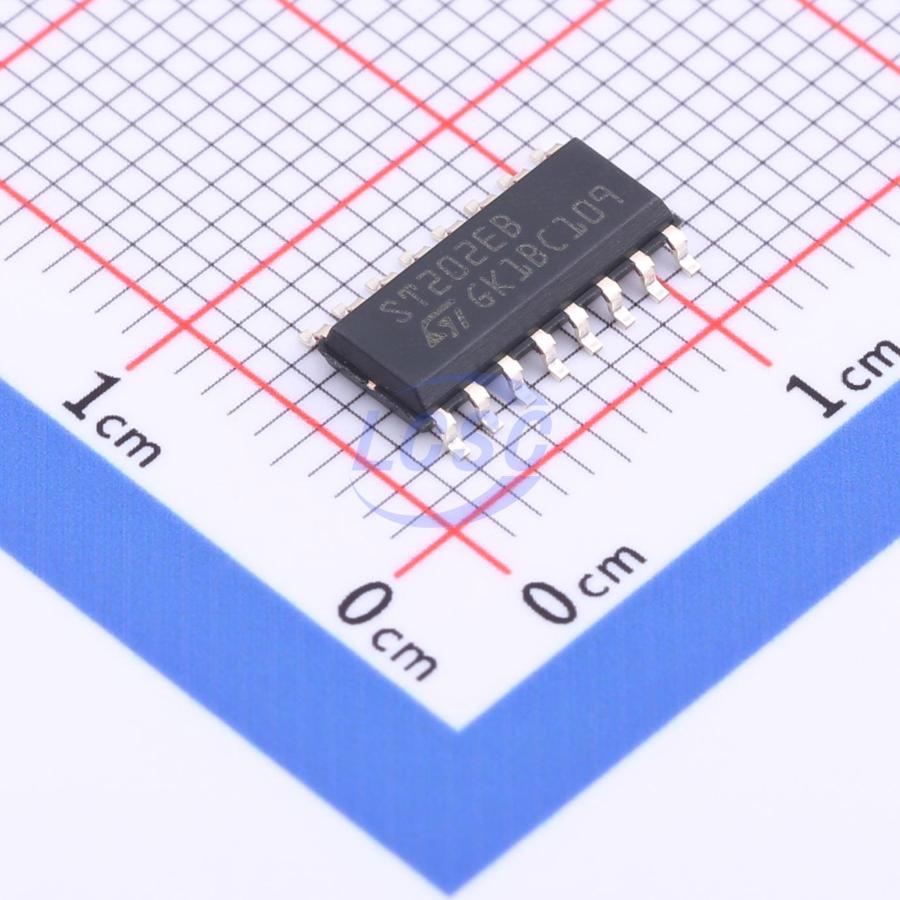

ST202EBDR
4.5V~5.5V Transceiver 230Kbps SO-16 Drivers, Receivers, Transceivers RoHS
SO-16ROHS3 CompliantActive
±15kV ESD-protected 5V RS-232 transceiver
- Manufacturer
- ST
- Manufacturer part #
- ST202EBDR
- Store part #
- C2671134
- Package / case
- SO-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,747 in stock
#C2671134
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.09 | ₹147.09 |
| 10+ | ₹119.72 | ₹1,197.20 |
| 30+ | ₹106.03 | ₹3,180.90 |
| 100+ | ₹92.56 | ₹9,256.00 |
| 500+ | ₹84.30 | ₹42,150.00 |
| 1,000+ | ₹80.17 | ₹80,170.00 |
1 × ₹147.09
₹147.09
excl. GST
₹173.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST202EBDR
₹147.09 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 230Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 10mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
The ST202EB, ST202EC, ST232EB, and ST232EC are two-driver, two-receiver devices designed for RS-232 and V.28 communications in harsh environments. Each transmitter output and receiver input is protected against ±15 kV electrostatic discharge (ESD) shocks. The drivers meet all EIA/TIA-232E and CCITT V.28 specifications at data rates up to 230 kbps, when loaded in accordance with the EIA/TIA-232E specification. The ST202EB, ST202EC, ST232EB, and ST232EC use a single 5 V supply voltage. The ST232EB and ST232EC operate with four 1 μF capacitors, while the ST202EB and ST202EC operate with four 0.1 μF capacitors, further reducing cost and board space.
Key features
- ESD protection for RS-232 I/O pins: ±15 kV human body model
- Guaranteed 230 kbps date rate
- Guaranteed slew rate range 3 to 30 V/μs
- Operates from a single 5 V power supply
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UM232EESE#C510536Union Semiconductor · SOP-16 | Union Semiconductor | SOP-16 | 2,069 | ₹64.99 · 2,069 in stock | View |
 | ADM202EARNZ-REEL#C6167ADI · SOIC-16 | ADI | SOIC-16 | 2,500 | ₹238.87 · 2,500 in stock | View |
 | ST232EBDR#C6870ST · SOIC-16 | ST | SOIC-16 | 282 | ₹84.31 · 282 in stock | View |
 | SP232EEN-L/TR#C7078MaxLinear · SOIC-16 | MaxLinear | SOIC-16 | 25,885 | ₹73.33 · 25,885 in stock | View |
 | MAX232EIDR-TUDI#C53286136Tudi · SOP-16 | Tudi | SOP-16 | 200 | ₹55.08 · 200 in stock | View |
