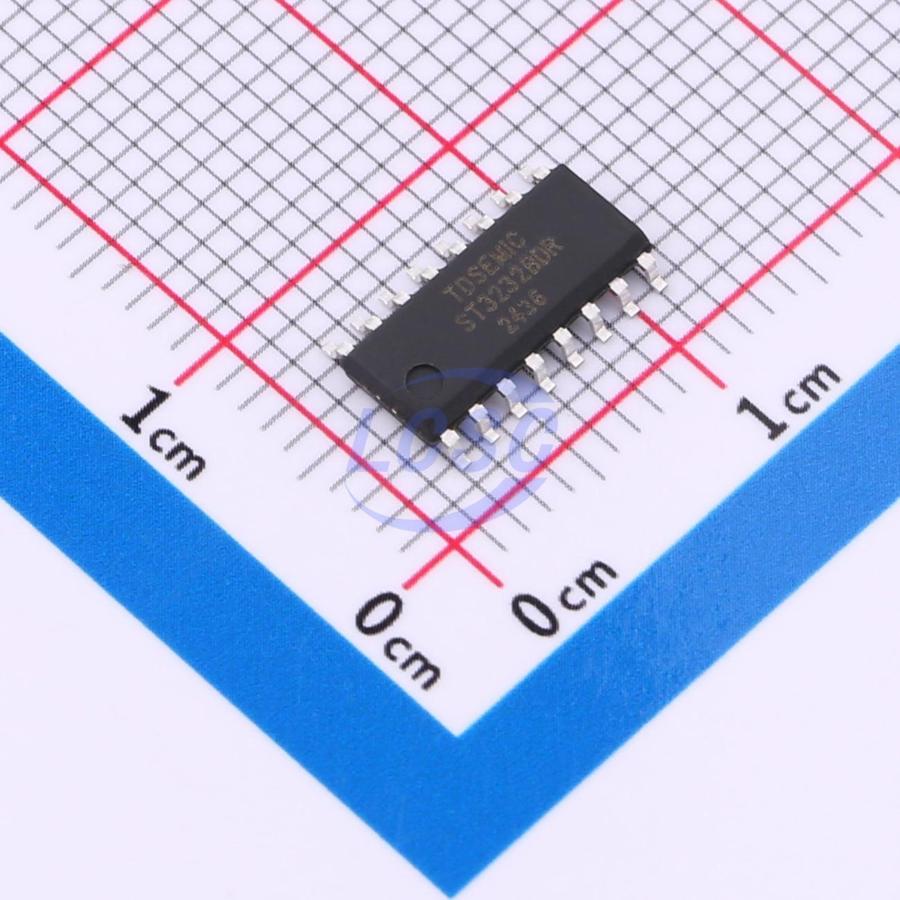

ST3232BDR-TD
Transceiver 3V~5.5V 140Kbps SOP-16 Drivers, Receivers, Transceivers
SOP-16RoHSActive
Dual-channel RS-232 driver/receiver
- Manufacturer
- TDSEMIC
- Manufacturer part #
- ST3232BDR-TD
- Store part #
- C42422093
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,394 in stock
#C42422093
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.64 | ₹45.64 |
| 10+ | ₹39.99 | ₹399.90 |
| 30+ | ₹37.39 | ₹1,121.70 |
| 100+ | ₹34.35 | ₹3,435.00 |
| 500+ | ₹33.04 | ₹16,520.00 |
| 1,000+ | ₹32.16 | ₹32,160.00 |
1 × ₹45.64
₹45.64
excl. GST
₹53.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST3232BDR-TD
₹45.64 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 140Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Automatic level shifting;Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 14mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
ST3232BDR is a dual driver/receiver compliant with the RS-232 standard, operating from a single supply voltage. The bipolar output voltage for the transmitters is generated by an internal voltage-doubling charge pump using four external 1.0μF capacitors. It is designed for state-of-the-art high-performance computing systems, high-speed electronic equipment, and highly reliable data exchange between remote devices. Input voltage levels are compatible with standard CMOS and TTL levels.
Applications
- Portable computers
- Battery-powered RS-232 systems
- Interface conversion
- Low-power modems
- Terminals
Key features
- Output voltage levels compatible with CMOS and TTL IC input levels
- Compliant with all EIA/TIA-232E and V.28/V.24 specifications
- Supply voltage range: 3.0 to 5.5V
- Low input current: 1.0μA at 25℃
- Output current: 30mA
- Static potential tolerance no less than 2kV
- SOP-16 package
