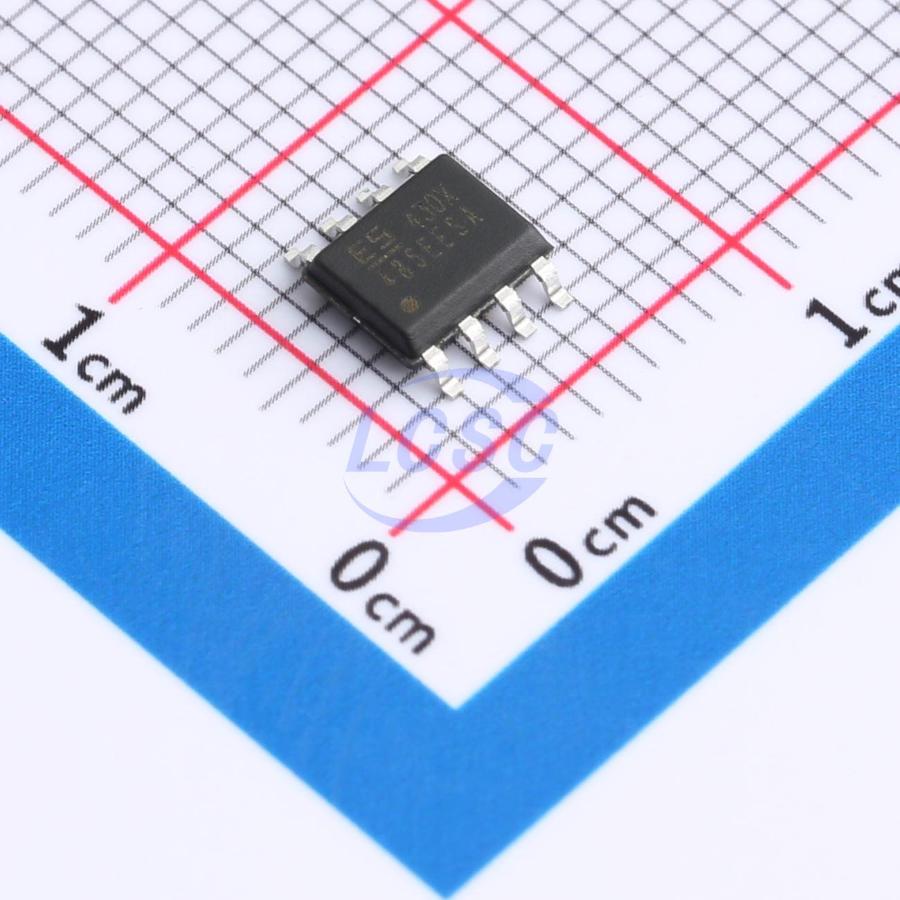

ST485EBDR(ES)
4.5V~5.5V Transceiver 10Mbps 256 SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
ST485EBDR RS-485/RS422 Transceiver
- Manufacturer
- ElecSuper
- Manufacturer part #
- ST485EBDR(ES)
- Store part #
- C41438305
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C41438305
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.92 | ₹119.60 |
| 50+ | ₹20.73 | ₹1,036.50 |
| 150+ | ₹19.36 | ₹2,904.00 |
| 500+ | ₹17.65 | ₹8,825.00 |
| 2,500+ | ₹16.89 | ₹42,225.00 |
| 5,000+ | ₹16.43 | ₹82,150.00 |
5 × ₹23.92
₹119.60
excl. GST
₹141.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ST485EBDR(ES)
₹119.60 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 10Mbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±15kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Overcurrent Protection;Low-power mode;Thermal shutdown protection
- Number of Receivers
- 1
- Quiescent Supply Current
- 300uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
ESD Protection for RS- 485 iO Pins 15kV Human Body Model 15kV IEC61000- 4- 2,Air- Gap Discharge 8kV- IEC61000- 4- 2,Contact Discharge 5V Supply Voltage Range Enhanced Slew- Rate Limiting Facilitates Error- Free Data Transmission 1uA Low- Current Shutdown Mode - 7V to +12V Common- Mode Input Voltage Range Allows up to 256 Transceivers on the Bus Thermal Shutdown Current- Limiting for Driver Overload Protection Data transmission up to 2.5Mbps
Applications
- Telecommunications
- Low- Power RS- 485 Transceivers
- Integrated Services Digital Networks
- Industrial- Control
- Local Area Networks
- Transceivers for EMI- Sensitive Applications
- Packet Switching
- Level Translators
Key features
- ESD Protection for RS- 485 iO Pins: 15kV Human Body Model, 15kV IEC61000- 4- 2 Air- Gap Discharge, 8kV IEC61000- 4- 2 Contact Discharge
- 5V Supply Voltage Range
- Enhanced Slew- Rate Limiting
- 1uA Low- Current Shutdown Mode
- - 7V to +12V Common- Mode Input Voltage Range
- Allows up to 256 Transceivers on the Bus
- Thermal Shutdown Current- Limiting for Driver Overload Protection
- Data transmission up to 2.5Mbps
- Slew- rate- limited driver which minimizes EMI and reduces reflections resulted from improperly terminated cables
- Enhanced electrostatic discharge (ESD) protection: All of the transmitter outputs and receiver inputs are protected to ±15kV using IEC61000- 4- 2 Air- Gap Discharge, ±15kV using the Human Body Model and ±8kV using IEC61000- 4- 2 Contact Discharge
- Drivers are short circuit current limited
- Fail- safe feature of the receiver input guarantees a logic- high output if both inputs are open, shorted or idle
- Power up/down mode, glitch- free driver outputs permit live insertion or removal of the transceiver into/from the data bus
- CMOS design offers significant power savings without sacrificing ruggedness against overload or ESD damage
- Typical quiescent current is only 300uA during operation and 1uA in shutdown mode
- Intended for half- duplex communication
- Available in SOP8 and DIP8 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN65LBC184DR(ES)#C41438301ElecSuper · SOP-8 | ElecSuper | SOP-8 | 885 | ₹46.91 · 885 in stock | View |
 | SP485EEN-L/TR#C41365334ElecSuper · SOP-8 | ElecSuper | SOP-8 | 25,445 | ₹24.87 · 25,445 in stock | View |
 | MAX3485EESA+T(ES)#C41438285ElecSuper · SOP-8 | ElecSuper | SOP-8 | 5 | ₹51.24 · 5 in stock | View |
 | MAX3485ED(ES)#C41438292ElecSuper · SOP-8 | ElecSuper | SOP-8 | 1,755 | ₹35.75 · 1,755 in stock | View |
 | SN65HVD75DR#C41365331ElecSuper · SOP-8 | ElecSuper | SOP-8 | 105 | ₹33.06 · 105 in stock | View |
