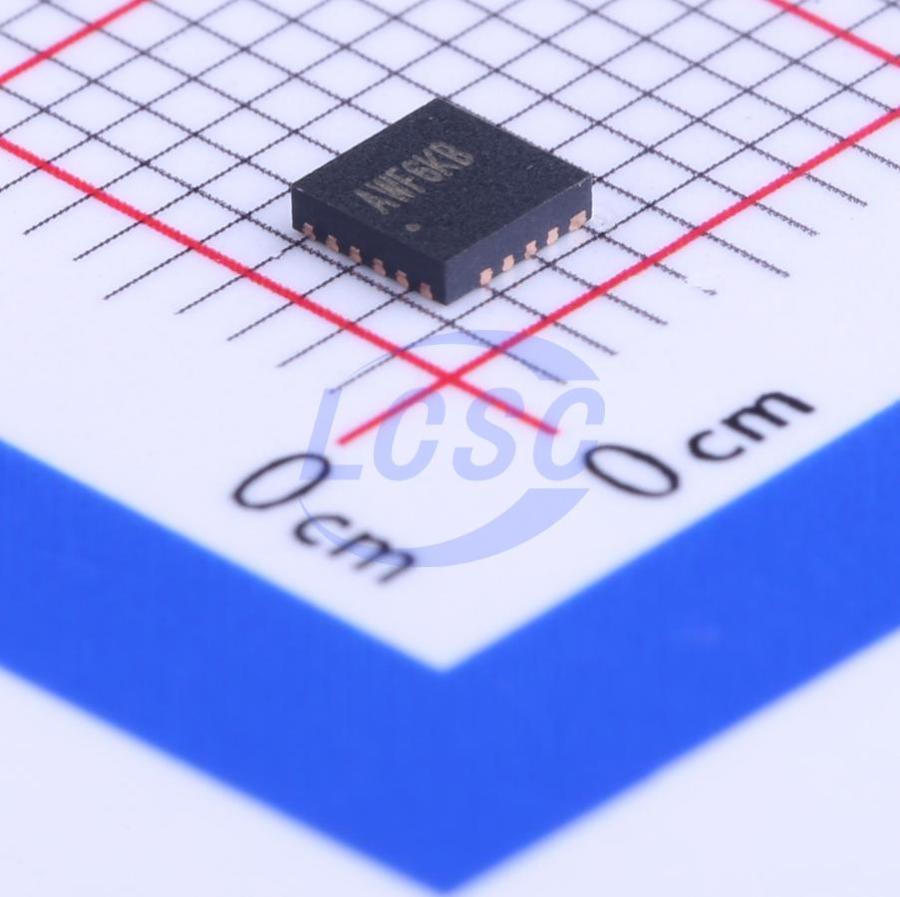

SY6982EQDC
Lithium Battery 2A QFN-16(3x3) Battery Management
High Efficiency, 2A, Two-Cell Boost Li-Ion Battery Charger
- Manufacturer
- Silergy
- Manufacturer part #
- SY6982EQDC
- Store part #
- C108510
- Package / case
- QFN-16(3x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,106 in stock
#C108510
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.67 | ₹117.67 |
| 10+ | ₹94.66 | ₹946.60 |
| 30+ | ₹83.15 | ₹2,494.50 |
| 100+ | ₹71.64 | ₹7,164.00 |
| 500+ | ₹64.92 | ₹32,460.00 |
| 1,000+ | ₹61.44 | ₹61,440.00 |
1 × ₹117.67
₹117.67
excl. GST
₹138.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SY6982EQDC
₹117.67 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Quiescent Current
- 10uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 3.6V~5.5V
- The Chip Type
- Charging IC
- Charge Current - Max
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.098 g
Overview
SY6982E is a 3.6 - 5.5V_IN, 2A two - cell synchronous boost Li - Ion battery charger integrates 1MHz switching frequency and full protection functions. The charge current up to 2A can be programmed by using the external resistor for different portable applications and indicates the charger current information simultaneous. It also has a programmable charge timeout for safety battery charge operation and a programmable input voltage threshold for adaptive input current limit. SY6982E can disconnect output when there is output short circuit or shutdown happens. It consists of 18V rating FETs with extremely low ON resistance to achieve high charge efficiency and simple peripheral circuit design. SY6982E along with small QFN3x3 footprint provides small PCB area application.
Applications
- Cellular Telephones
- PDA
- MP3 Players
- MP4 Players
- Digital Cameras
- Bluetooth Applications
- PSP Game Players
- NDS Game Players
- Notebook
Key features
- Integrated Synchronous Boost with 18V Rating Low RDSON FETs for High Charge Efficiency
- Trickle Current / Constant Current / Constant Voltage Charge Mode
- Programmable Input Voltage Threshold for Adaptive Current Limit
- Maximum 2A Constant Charge Current
- Charge Current Information Indication
- Programmable Charge Timeout
- Programmable Constant Charge Current
- Selectable Constant Voltage
- ±0.5% Battery Voltage Accuracy
- Thermal Regulation Protection
- External Shutdown Function
- Input Voltage UVLO and OVP
- Over Temperature Protection
- Output Short Circuit Protection
- Charge Status Indication
- Normal Synchronous Boost Operation When Battery Removed
