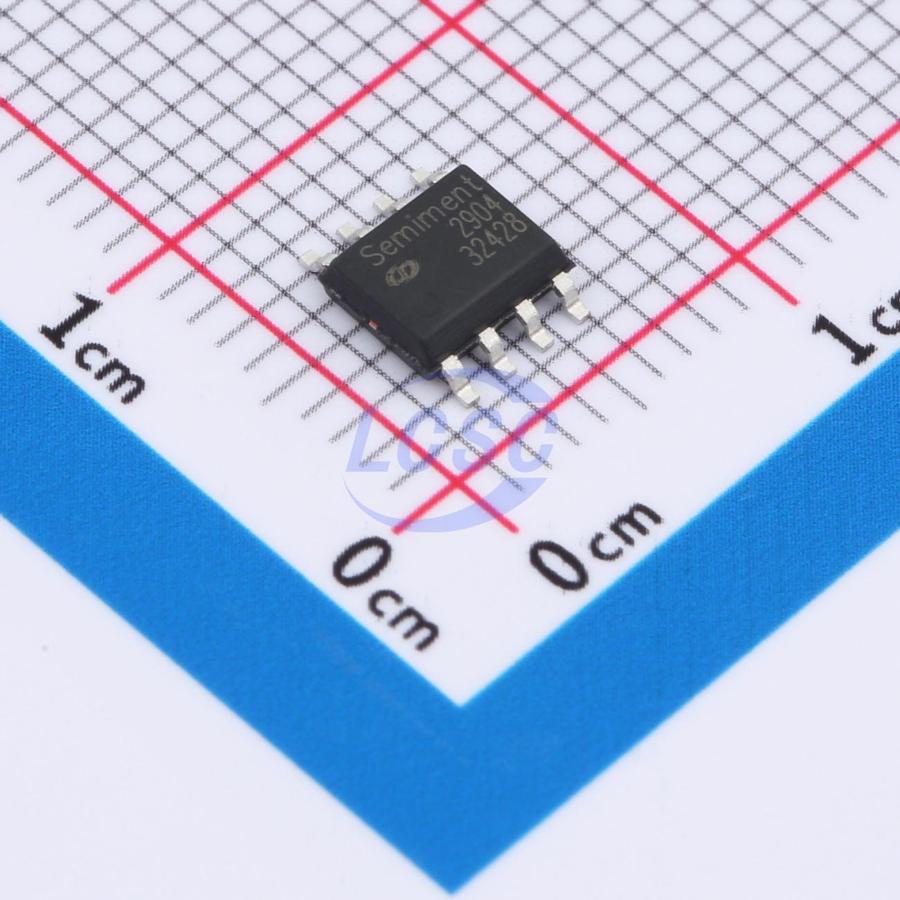

Semiment

SYLM2904APA1R

Standard (General Purpose) Amplifier 4 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8

SOP-8ROHS CompliantSold out at source

SYLM290xA High-Voltage General-Purpose Operational Amplifiers

Manufacturer: Semiment
Manufacturer part #: SYLM2904APA1R
Store part #: C41371515
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,500 in stock

#C41371515

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹10.99	₹54.95
50+	₹9.64	₹482.00
150+	₹8.96	₹1,344.00
500+	₹8.45	₹4,225.00
2,500+	₹8.06	₹20,150.00
4,000+	₹7.85	₹31,400.00

Quantity (min 5, multiples of 5)

5 × ₹10.99

₹54.95

excl. GST

₹64.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

SYLM2904APA1R

₹54.95 for 5 + GST

Specifications

Output Current: 45mA
Number of Channels: 4
Vos - Input Offset Voltage: 350uV
Slew Rate: 1V/us
Input Offset Current(Ios): 2pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 30pA
Common Mode Rejection Ratio(CMRR): 95dB
Input Offset Voltage Drift(Vos TC): 3uV/℃
Quiescent Current: 117uA
Gain Bandwidth Product: 1MHz
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.177 g

Overview

High-Voltage General-Purpose Op-Amp Series - SYLM290xA, manufactured with advanced process technology and controlled under full-flow automotive-grade standards, includes dual op-amp (SYLM2904A) and quad op-amp (SYLM2902A). Featuring proprietary circuit design techniques and classic rail-to-rail input/output swing, it delivers high consistency and symmetry across the full operating voltage and temperature range. Particularly suited for applications with stringent cost requirements and limited board space, providing excellent overall circuit compatibility and balance. The SYLM290xA integrates an overload protection circuit that enables the amplifier to activate its recovery function during overload conditions and resume normal operation within a short period, significantly enhancing circuit reliability. This op-amp is available in industry-standard packages including SOP, MSOP, and TSSOP.
