TOSHIBADatasheet (PDF)

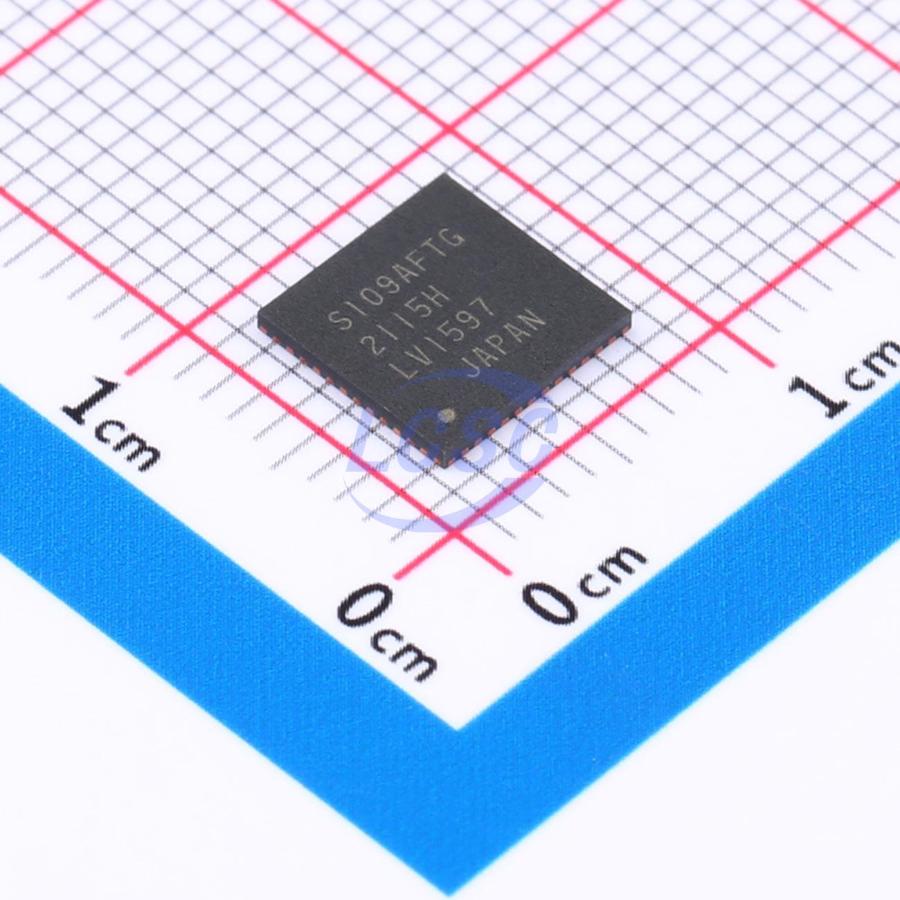

TB67S109AFTG(OSQEL)
WQFN-48 Motor Drivers, Controllers
WQFN-48RoHSActive
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB67S109AFTG(OSQEL)
- Store part #
- C5381638
- Package / case
- WQFN-48
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
142 in stock
#C5381638
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹179.49 | ₹179.49 |
| 10+ | ₹147.33 | ₹1,473.30 |
| 30+ | ₹129.73 | ₹3,891.90 |
| 100+ | ₹109.74 | ₹10,974.00 |
| 500+ | ₹101.05 | ₹50,525.00 |
| 1,000+ | ₹96.92 | ₹96,920.00 |
1 × ₹179.49
₹179.49
excl. GST
₹211.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TB67S109AFTG(OSQEL)
₹179.49 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Features
- Power-on reset;Overcurrent Protection;Over temperature protection
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -20℃~+85℃
- Step Resolution
- 32
- Output Current
- 3A
- RDS(on)
- 490mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.238 g
Overview
The TB67S109A is a two-phase bipolar stepping motor driver using a PWM chopper. The clock in decoder is built in. Fabricated with the BiCD process, rating is 50 V/4.0 A.
Key features
- BiCD process integrated monolithic IC.
- Capable of controlling 1 bipolar stepping motor.
- PWM controlled constant-current drive.
- Allows full, half, quarter, 1/8, 1/16, 1/32 step operation.
- Low on-resistance (High + Low side = 0.49Ω (typ.)) MOSFET output stage.
- High efficiency motor current control mechanism (Advanced Dynamic Mixed Decay)
- Error detection (TSD/ISD) signal output function
- Built-in error detection circuits (Thermal shutdown (TSD), over-current shutdown (ISD), and power-on reset (POR))
- Built-in VCC regulator for internal circuit use.
- Chopping frequency of a motor can be customized by external resistance and capacitor.
- Multi package lineup TB67S109AFTG: P-WQFN48-0707-0.50-003 TB67S109AFNG: HTSSOP48-P-300-0.50
