TOSHIBA

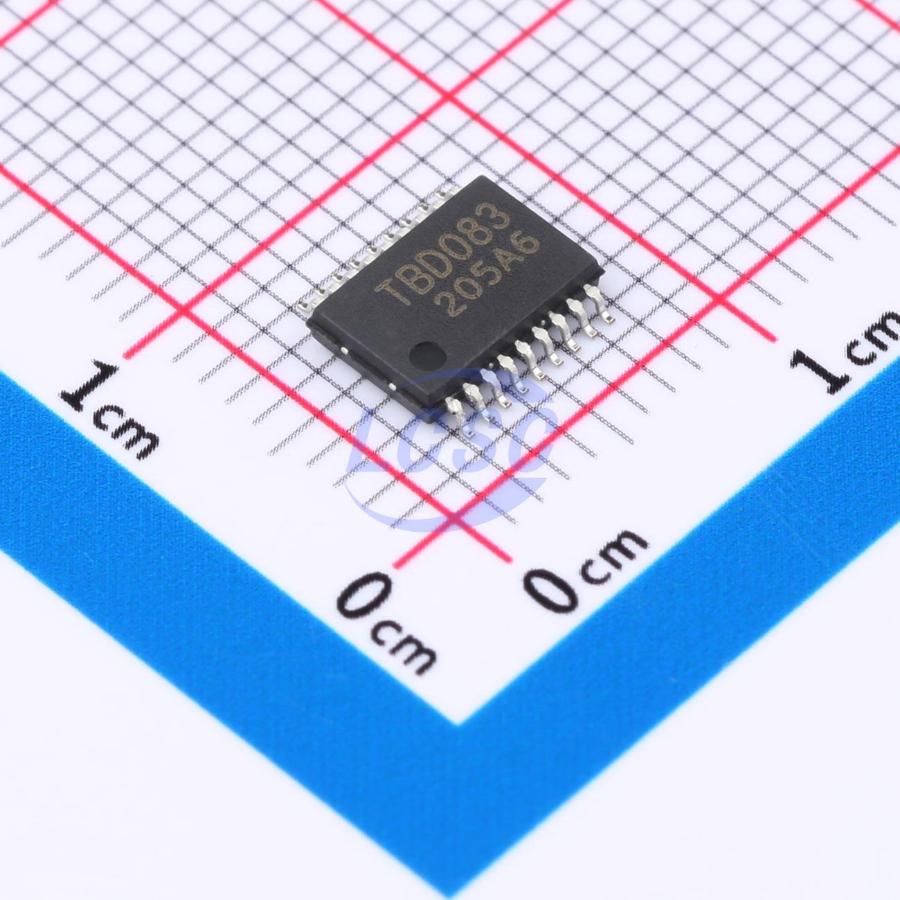

TBD62083AFNG(Z,EL)

8 1 0.4us@50V,15pF SSOP-18-225mil Buffers, Drivers, Receivers, Transceivers

SSOP-18-225milRoHSActive

8 channel sink type DMoS transistor array

Manufacturer: TOSHIBA
Manufacturer part #: TBD62083AFNG(Z,EL)
Store part #: C4153827
Package / case: SSOP-18-225mil
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,116 in stock

#C4153827

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹94.54	₹94.54
10+	₹75.89	₹758.90
30+	₹66.57	₹1,997.10
100+	₹57.25	₹5,725.00
500+	₹51.61	₹25,805.00
1,000+	₹48.79	₹48,790.00

Quantity (min 1)

1 × ₹94.54

₹94.54

excl. GST

₹111.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

TBD62083AFNG(Z,EL)

₹94.54 for 1 + GST

Specifications

Series: TB62083ASeries
Current - Output Low(IOL): 500mA
Number of Bits per Element: 8
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+85℃
Propagation Delay: 0.4us@50V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

TB62083A series and TB62084A series are DMOS transistor array with 8 circuits. It has a clamp diode for switching inductive loads built-in in each output.

Key features

8 circuits built-in
High voltage : V = 50V (MAX)
High current : IOUT = 500 mA/ch (MAX)
Input voltage(output on) : TBD62083A series 2.5 V (MIN) TBD62084A series 7.0 V (MIN)
Input voltage(output off) : TBD62083A series 0.6 V (MAX) TBD62084A series 1.0 V (MAX)
Package : PG type P-DIP18-300-2.54-001 FG type SOP18-P-375-1.27 FNG type SSOP18-P-225-0.65 FWG type P-SOP18-0812-1.27-001
