MICROCHIPDatasheet (PDF)

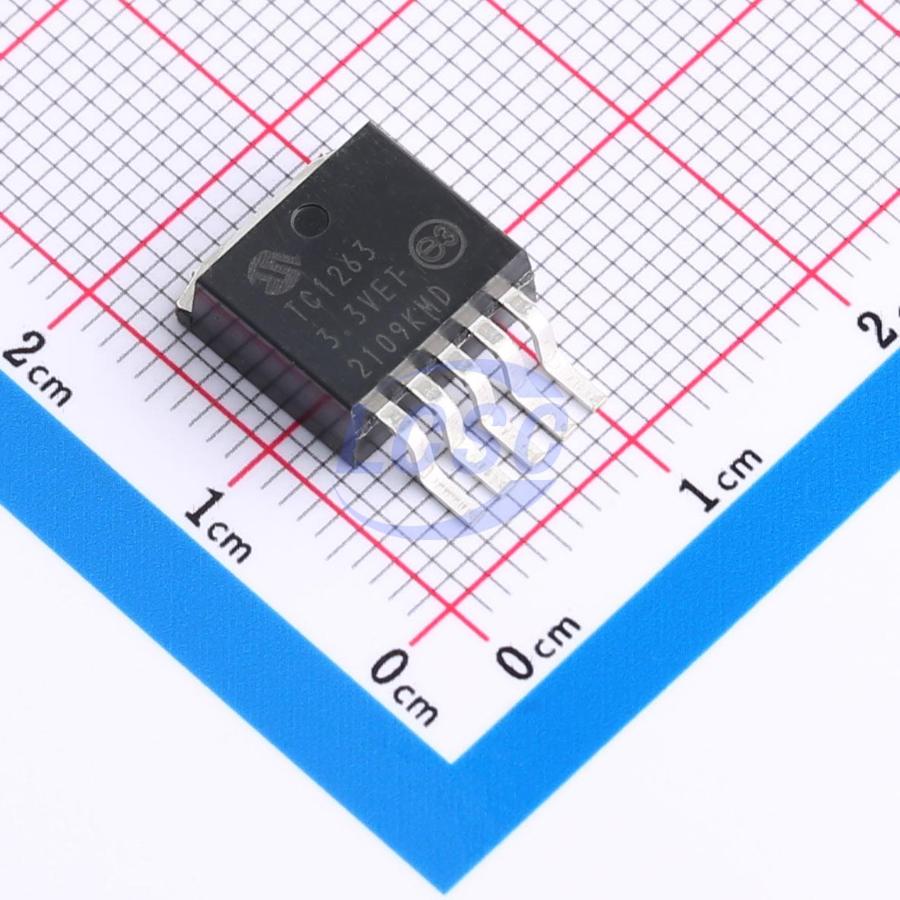

TC1263-3.3VETTR
3.3V Positive Fixed TO-252-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-5ROHS3 CompliantActive
500 mA Fixed-Output CMOS Low Dropout Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC1263-3.3VETTR
- Store part #
- C632867
- Package / case
- TO-252-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C632867
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.39 | ₹241.39 |
| 10+ | ₹236.10 | ₹2,361.00 |
| 30+ | ₹232.44 | ₹6,973.20 |
| 100+ | ₹228.98 | ₹22,898.00 |
1 × ₹241.39
₹241.39
excl. GST
₹284.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
TC1263-3.3VETTR
₹241.39 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Features
- Enable control;Operating status indication;Over Current Protection;Thermal shutdown;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 21.88 g
Overview
The TC1263 is a fixed-output, high-accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1263’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 μA at full load (20 to 60 times lower than in bipolar regulators). TC1263 key features include ultra low noise operation, very low dropout voltage (typically 350 mV at full load) and fast response to step changes in load. The TC1263 incorporates both overtemperature and overcurrent protection. The TC1263 is stable with an output capacitor of only 1 μF and has a maximum output current of 500 mA. It is available in 8-Pin SOIC, 5-Pin TO-220 and 5-Pin DDPAK packages.
Applications
- Battery-Operated Systems
- Portable Computers
- Medical Instruments
- Instrumentation
- Cellular/GSM/PHS Phones
- Linear Post-Regulators for SMPS
- Pagers
Key features
- Very Low Dropout Voltage
- 500 mA Output Current
- High-Output Voltage Accuracy
- Standard or Custom Output Voltages
- Overcurrent and Overtemperature Protection
- SHDN Input for Active Power Management
- ERROR Output Can Be Used as a Low Battery Detector (SOIC only)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC1265-3.3VETTR#C632876MICROCHIP · TO-252-5 | MICROCHIP | TO-252-5 | 23 | ₹302.41 · 23 in stock | View |
 | NCV5661DT33RKG#C904649onsemi · DPAK-5 | onsemi | DPAK-5 | 71 | ₹224.91 · 71 in stock | View |
 | LF33CPT-TR#C2971029ST · TO-252-5 | ST | TO-252-5 | 27 | ₹241.42 · 27 in stock | View |
 | BD433M5WFPJ-CZE2#C2981754ROHM · TO252-J5(F) | ROHM | TO252-J5(F) | 31 | ₹216.16 · 31 in stock | View |
| NCV5500DT33RKG#C603959onsemi · DPAK-5 | onsemi | DPAK-5 | 3 | ₹98.44 · 3 in stock | View | |
