TC74HC00AF(EL,F)
1uA 2V~6V 13ns@6V,50pF SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive

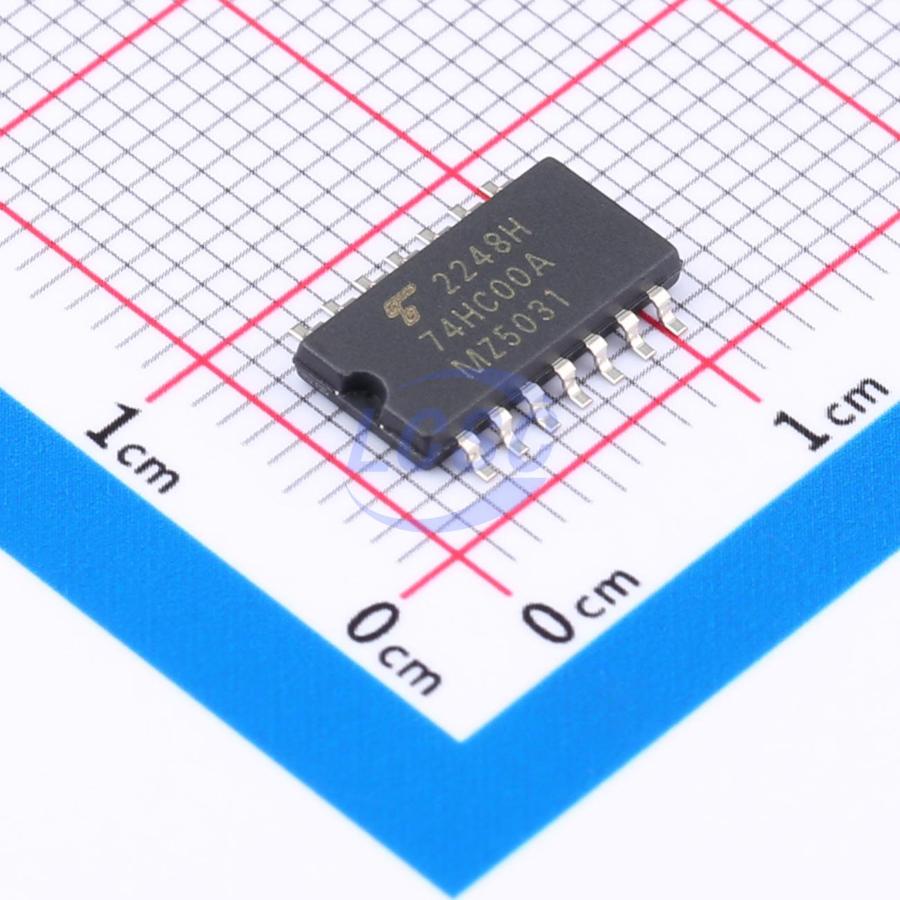

TC74HC00AP, TC74HC00AF Quad 2-Input NAND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74HC00AF(EL,F)
- Store part #
- C5381644
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,579 in stock
#C5381644
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.93 | ₹68.93 |
| 10+ | ₹54.80 | ₹548.00 |
| 30+ | ₹47.84 | ₹1,435.20 |
| 100+ | ₹40.88 | ₹4,088.00 |
| 500+ | ₹36.53 | ₹18,265.00 |
| 1,000+ | ₹34.36 | ₹34,360.00 |
1 × ₹68.93
₹68.93
excl. GST
₹81.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TC74HC00AF(EL,F)
₹68.93 for 1 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Logic Family
- 74HC Series
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.13V;5.63V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 13ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
The TC74HC00A is a high speed CMOS 2-INPUT NAND GATE fabricated with silicon gate C²MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 3 stages including buffer output, which provide high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tₚd = 6 ns (typ.) at VCC = 5 V
- Low power dissipation: Icc = 1 μA (max) at Ta = 25°C
- High noise immunity: Vₙᵢₕ = Vₙᵢₗ = 28% VCC (min)
- Output drive capability: 10 LSTTL loads
- Symmetrical output impedance: |IOH| = IOL = 4 mA (min)
- Balanced propagation delays: tₚₗₕ ≈ tₚₕₗ
- Wide operating voltage range: VCC(opr) = 2 to 6 V
- Pin and function compatible with 74LS00
