onsemiDatasheet (PDF)

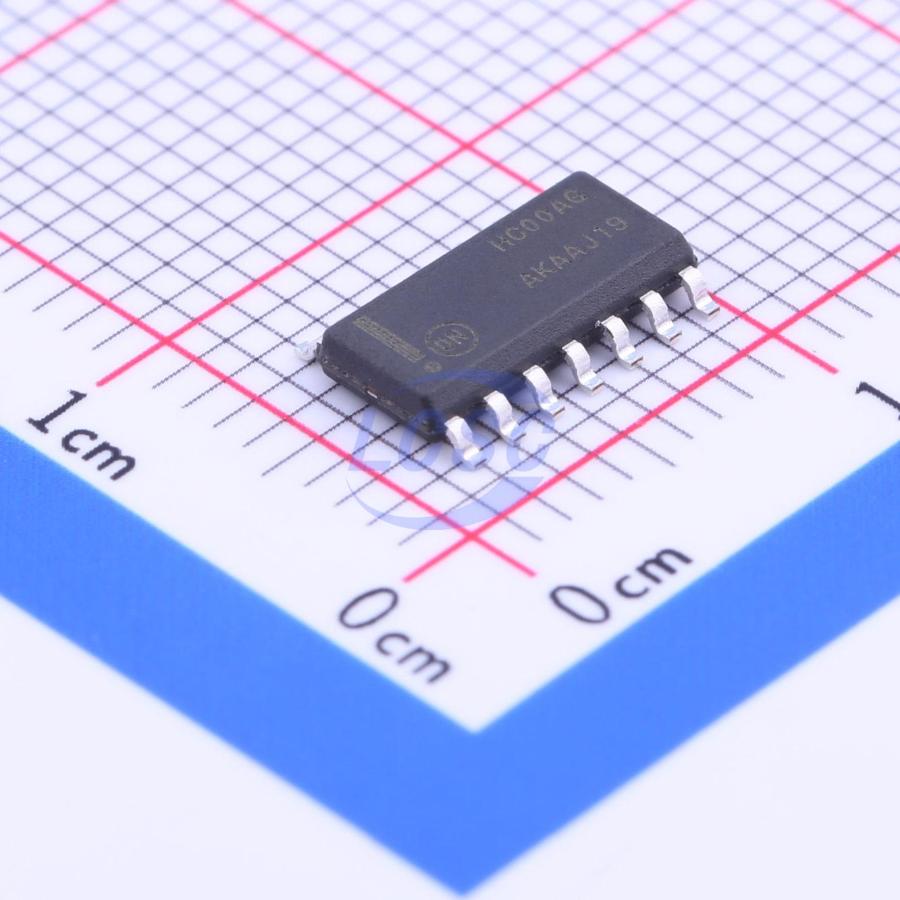

MC74HC00ADR2G
StandardCMOS 2V~6V 13ns@6V,50pF 1uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-Input NAND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- MC74HC00ADR2G
- Store part #
- C48203
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,660 in stock
#C48203
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.87 | ₹184.35 |
| 50+ | ₹29.91 | ₹1,495.50 |
| 150+ | ₹26.94 | ₹4,041.00 |
| 500+ | ₹23.22 | ₹11,610.00 |
| 2,500+ | ₹18.95 | ₹47,375.00 |
| 5,000+ | ₹17.95 | ₹89,750.00 |
5 × ₹36.87
₹184.35
excl. GST
₹217.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74HC00ADR2G
₹184.35 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 13ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The MC74HC00A is identical in pinout to the LS00. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
Key features
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS and TTL
- Operating Voltage Range: 2 to 6 V
- Low Input Current: 1 μA
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance With the JEDEC Standard No. 7 A Requirements
- Chip Complexity: 32 FETs or 8 Equivalent Gates
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC00ADG#C233526onsemi · SOIC-14 | onsemi | SOIC-14 | 60 | ₹77.30 · 60 in stock | View |
 | TC74HC00AF(EL,F)#C5381644TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 1,579 | ₹76.48 · 1,579 in stock | View |
 | SN74HC00QDRQ1#C2863044TI · SOIC-14 | TI | SOIC-14 | 4 | ₹55.78 · 4 in stock | View |
 | MC74HC132ADG#C233531onsemi · SOIC-14 | onsemi | SOIC-14 | 220 | ₹51.32 · 220 in stock | View |
 | SN74HC00DTR(XBLW)#C41361404XBLW · SOP-14 | XBLW | SOP-14 | 1,590 | ₹13.14 · 1,590 in stock | View |
