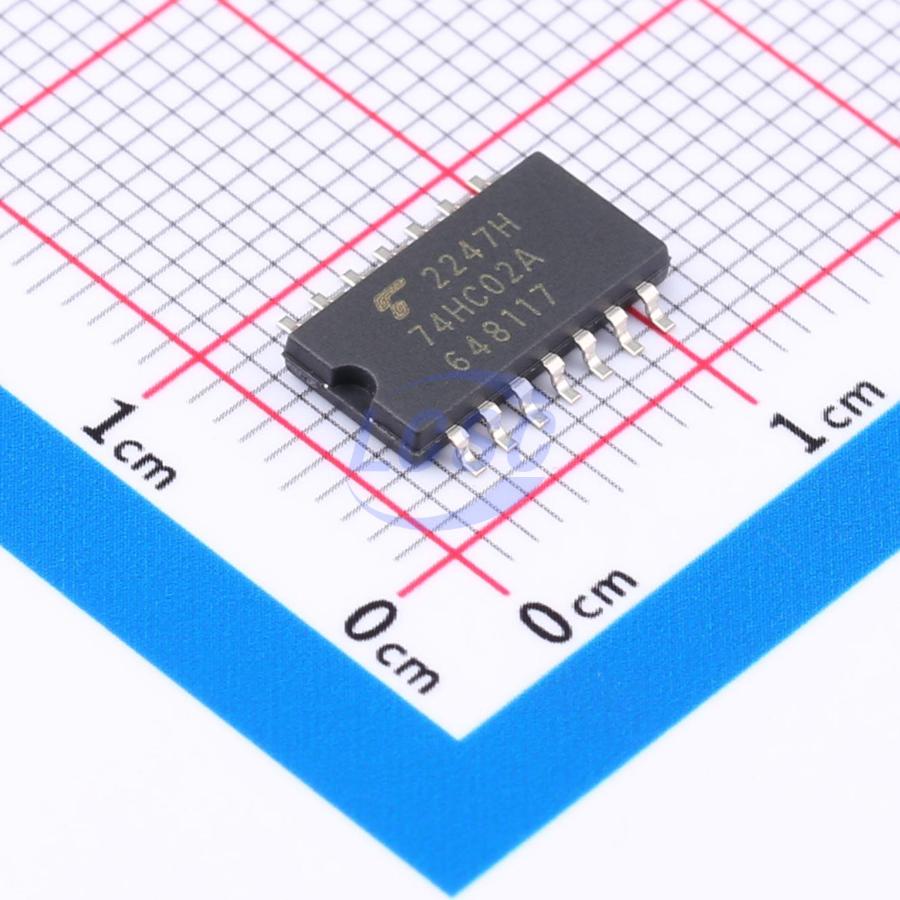

TC74HC02AF(EL,F)
1uA 2V~6V 13ns@6V,50pF SOP-14 Gates and Inverters RoHS
SOP-14ROHS3 CompliantActive
Quad 2-Input NOR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74HC02AF(EL,F)
- Store part #
- C5381645
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,688 in stock
#C5381645
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.91 | ₹39.91 |
| 10+ | ₹34.49 | ₹344.90 |
| 30+ | ₹32.32 | ₹969.60 |
| 100+ | ₹29.50 | ₹2,950.00 |
| 500+ | ₹28.21 | ₹14,105.00 |
| 1,000+ | ₹27.56 | ₹27,560.00 |
1 × ₹39.91
₹39.91
excl. GST
₹47.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TC74HC02AF(EL,F)
₹39.91 for 1 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Logic Family
- 74HC Series
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.13V;5.63V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 13ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.289 g
Overview
The TC74HC02A is a high speed CMOS 2-INPUT NOR GATE fabricated with silicon gate C²MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 3 stages, including a buffer output, which provide high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tₚd = 6 ns (typ.) at VCC = 5 V
- Low power dissipation: Icc = 1 μA (max) at Ta = 25°C
- High noise immunity: ΔVₙᵢₕ = Vₙᵢₗ = 28% VCC (min)
- Output drive capability: 10 LSTTL loads
- Symmetrical output impedance: |IOH| = IOL = 4 mA (min)
- Balanced propagation delays: tₚₗₕ ≈ tₚₕₗ
- Wide operating voltage range: VCC(opr) = 2 to 6 V
- Pin and function compatible with 74LS02
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC02ADG#C233598onsemi · SOIC-14 | onsemi | SOIC-14 | 448 | ₹57.37 · 448 in stock | View |
 | MC74HC02ADR2G#C7328onsemi · SOIC-14 | onsemi | SOIC-14 | 675 | ₹22.24 · 675 in stock | View |
 | SN74HC02DTR(XBLW)#C49242132XBLW · SOP-14 | XBLW | SOP-14 | 2,290 | ₹13.38 · 2,290 in stock | View |
| MM74HC02M#C897296onsemi · SOIC-14 | onsemi | SOIC-14 | 3 | ₹40.80 · 3 in stock | View | |
 | SN74HC7002DR#C2862343TI · SOIC-14 | TI | SOIC-14 | 100 | ₹481.98 · 100 in stock | View |
