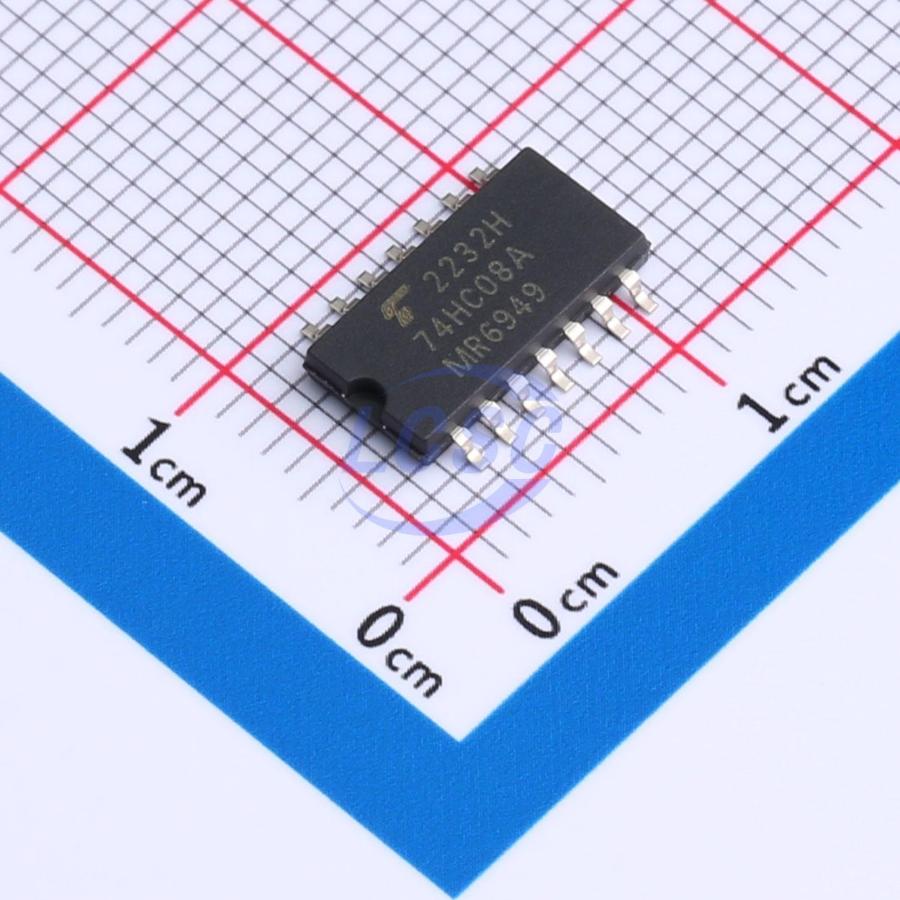

TC74HC08AF(EL,F)
10uA 2V~6V 6ns@5V,15pF SOP-14 Gates and Inverters
SOP-14RoHSActive
Quad 2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74HC08AF(EL,F)
- Store part #
- C5221834
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,482 in stock
#C5221834
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.79 | ₹77.79 |
| 10+ | ₹63.89 | ₹638.90 |
| 30+ | ₹56.72 | ₹1,701.60 |
| 100+ | ₹49.77 | ₹4,977.00 |
| 500+ | ₹45.64 | ₹22,820.00 |
| 1,000+ | ₹43.46 | ₹43,460.00 |
1 × ₹77.79
₹77.79
excl. GST
₹91.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TC74HC08AF(EL,F)
₹77.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.13V;5.63V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Propagation Delay
- 6ns@5V,15pF
- Output Logic Level - Low
- 100mV;330mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The TC74HC08A is a high speed CMOS 2-INPUT AND GATE fabricated with silicon gate C²MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 2-stages including buffer output, which provide high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge or transient excess voltage.
Key features
- High speed: tpd = 6 ns (typ.) at VCC = 5 V
- Low power dissipation: Icc = 1 μA (max) at Ta = 25℃
- High noise immunity: ΔVNIH = VNIL = 28% VCC (min)
- Output drive capability: 10 LSTTL loads
- Symmetrical output impedance: IIOHI = IOL = 4 mA (min)
- Balanced propagation delays: tpLH ≈ tpHL
- Wide operating voltage range: VCC(opr) = 2 to 6 V
- Pin and function compatible with 74LS08
