TOSHIBADatasheet (PDF)

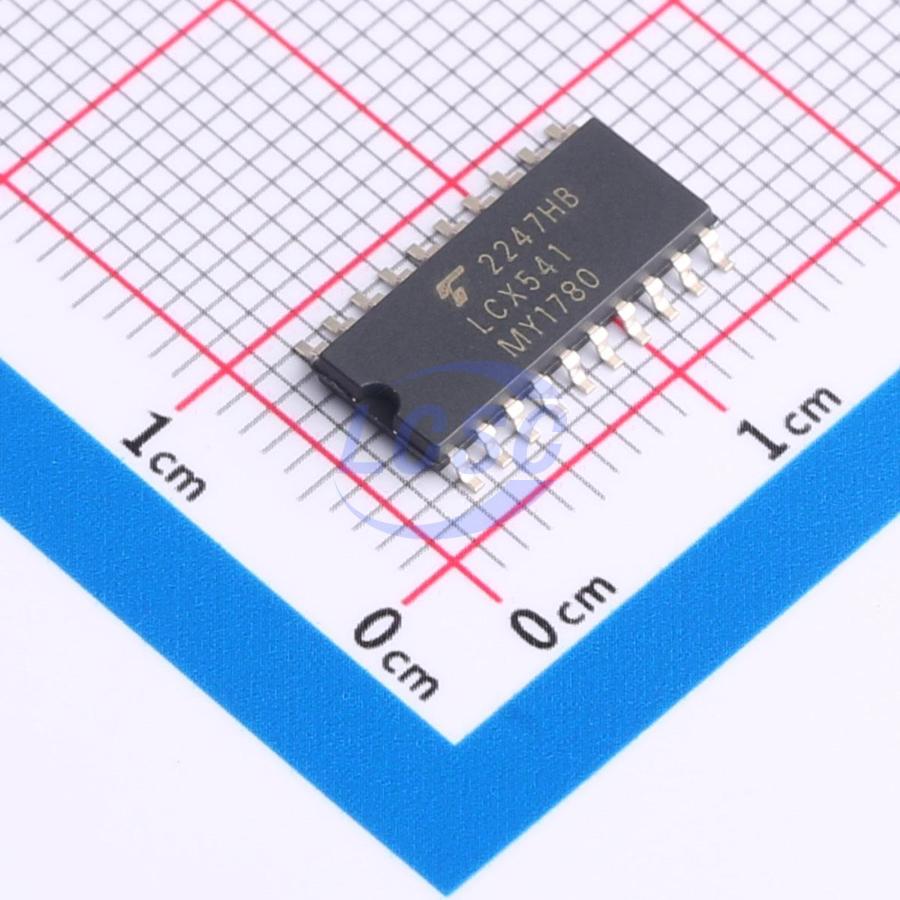

TC74LCX541F(EL,K,F
1.65V~3.6V 8 1 6.5ns@3.3V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
SOP-20ROHS CompliantActive
Low-Voltage Octal Bus Buffer with 5-V Tolerant Inputs and Outputs
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74LCX541F(EL,K,F
- Store part #
- C5349738
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C5349738
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹103.37 | ₹103.37 |
| 10+ | ₹82.69 | ₹826.90 |
| 30+ | ₹72.25 | ₹2,167.50 |
| 100+ | ₹62.02 | ₹6,202.00 |
| 500+ | ₹55.92 | ₹27,960.00 |
| 1,000+ | ₹52.67 | ₹52,670.00 |
1 × ₹103.37
₹103.37
excl. GST
₹121.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TC74LCX541F(EL,K,F
₹103.37 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LCX
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 6.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
The TC74LCX541 is a high-performance CMOS octal bus buffer. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. The device is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5 V supply environment for both inputs and outputs. The TC74LCX541 is a non-inverting 3-state buffer having two activelow output enables. When either OE1 or OE2 are high, the terminal outputs are in the high-impedance state. This device is designed to be used with 3-state memory address drivers, etc. All inputs are equipped with protection circuits against static discharge.
Key features
- Low-voltage operation: VCC = 1.65 to 3.6 V
- High-speed operation: tpd = 6.5 ns (max) (VCC = 3.0 to 3.6 V)
- Output current: |IOH|/IOL = 24 mA (min) (ΔVCC = 3.0 V)
- Available in JEITA SOP, VSSOP (US)
- Power-down protection provided on all inputs and outputs
- Pin and function compatible with the 74 series (74AC/VHC/HC/F/ALS/LS etc.) 541 type
