TOSHIBADatasheet (PDF)

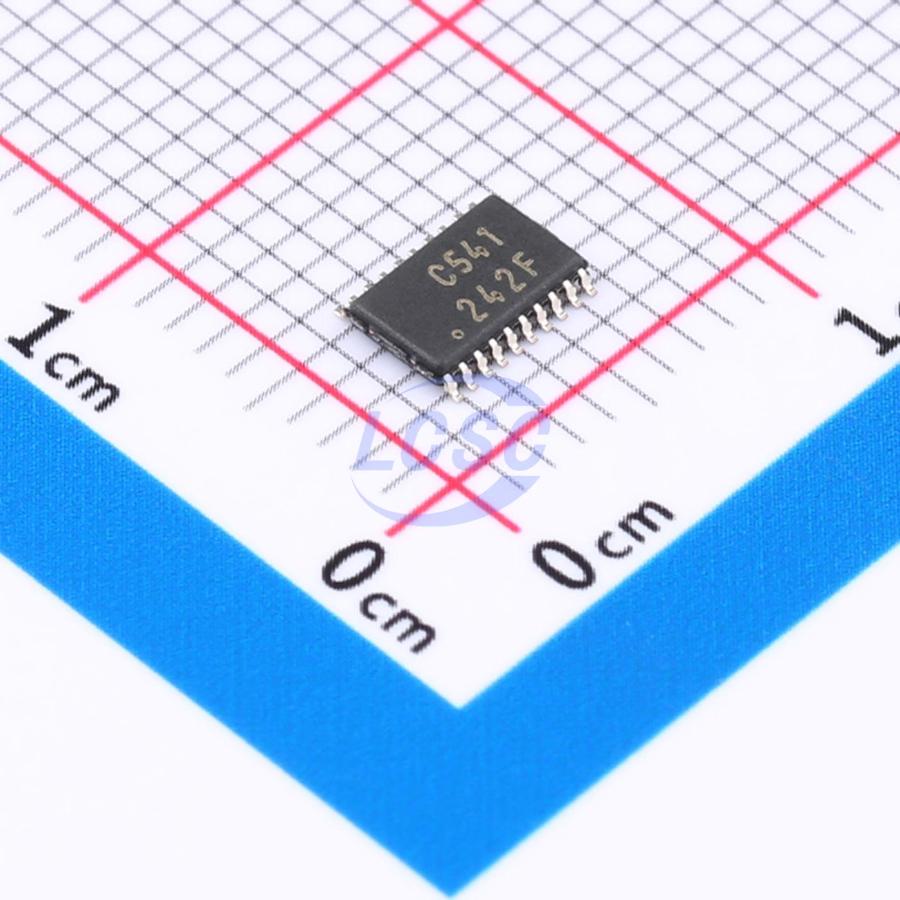

TC74VHC541FK(EL,K
2V~5.5V 8 1 5ns@5V,50pF VSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
VSSOP-20ROHS CompliantActive
Octal Bus Buffer, Inverted/Non-Inverted, 3-State Outputs
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC74VHC541FK(EL,K
- Store part #
- C5381654
- Package / case
- VSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,179 in stock
#C5381654
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.91 | ₹52.91 |
| 10+ | ₹47.06 | ₹470.60 |
| 30+ | ₹44.24 | ₹1,327.20 |
| 100+ | ₹41.20 | ₹4,120.00 |
| 500+ | ₹39.47 | ₹19,735.00 |
| 1,000+ | ₹38.61 | ₹38,610.00 |
1 × ₹52.91
₹52.91
excl. GST
₹62.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TC74VHC541FK(EL,K
₹52.91 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- TC74VHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.101 g
Overview
The TC74VHC540/TC74VHC541 are advanced high speed CMOS OCTAL BUS BUFFERs fabricated with silicon gate I²CMOS technology. They achieve the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The TC74VHC540 is an inverting type, and the TC74VHC541 is a noninverting type. An input protection circuit ensures that 0 to 5.5 V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 V to 3.3 V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Key features
- High speed: tpd = 3.7 ns (typ.) at VCC = 5 V
- Low power dissipation: ICC = 4 μA (max) at Ta = 25℃
- High noise immunity: V NIH = V NIL = 28% VCC (min)
- Power down protection is provided on all inputs.
- Balanced propagation delays: tpLH ≃ tpHL
- Wide operating voltage range: VCC (opr) = 2 V to 5.5 V
- Low noise: VOLP = 1.0 V (max)
- Pin and function compatible with 74ALS540/541
