TOSHIBADatasheet (PDF)

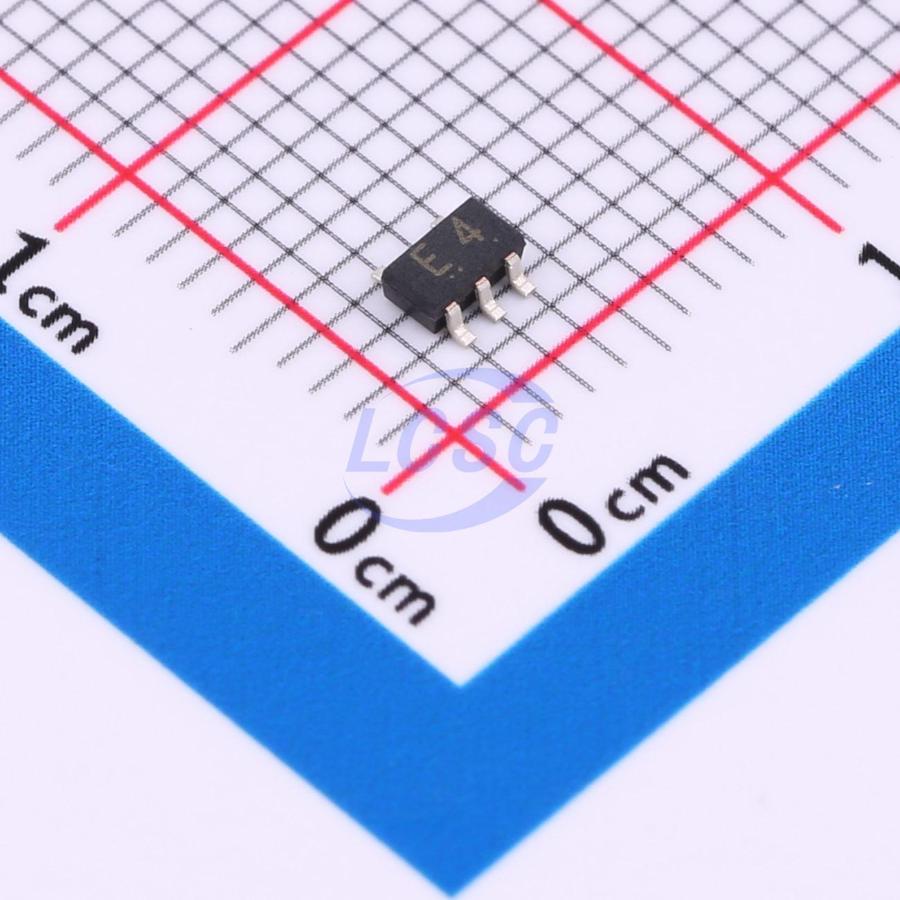

TC7S32F(TE85L,F)
2V~6V 7ns@5V,15pF 1uA SSOP-5 Gates and Inverters
SSOP-5RoHSActive
2-Input OR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S32F(TE85L,F)
- Store part #
- C5331564
- Package / case
- SSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,505 in stock
#C5331564
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.21 | ₹71.05 |
| 50+ | ₹11.14 | ₹557.00 |
| 150+ | ₹9.60 | ₹1,440.00 |
| 500+ | ₹8.44 | ₹4,220.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹7.05 | ₹42,300.00 |
5 × ₹14.21
₹71.05
excl. GST
₹83.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S32F(TE85L,F)
₹71.05 for 5 + GST
Specifications
- Logic Family
- TC7S
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 7ns@5V,15pF
- Output Logic Level - Low
- 100mV;260mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 2mA
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Key features
- High Speed: tₚd = 7 ns (typ.) at VCC = 5 V
- Low power dissipation: ICC = 1 μA (max) at Ta = 25 °C
- High noise immunity: Vₙₕ = Vₙₗ = 28% VCC (min)
- Output drive capability: 5 LSTTL Loads
- Symmetrical Output Impedance: |Iₒₕ| = Iₒₗ = 2 mA (min)
- Balanced propagation delays: tₚₗₕ ≈ tₚₕₗ
- Wide operating voltage range: VCC = 2 to 6 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC7S32FU,LF#C7121123TOSHIBA · SSOP-5 | TOSHIBA | SSOP-5 | 2,310 | ₹20.81 · 2,310 in stock | View |
