TOSHIBADatasheet (PDF)

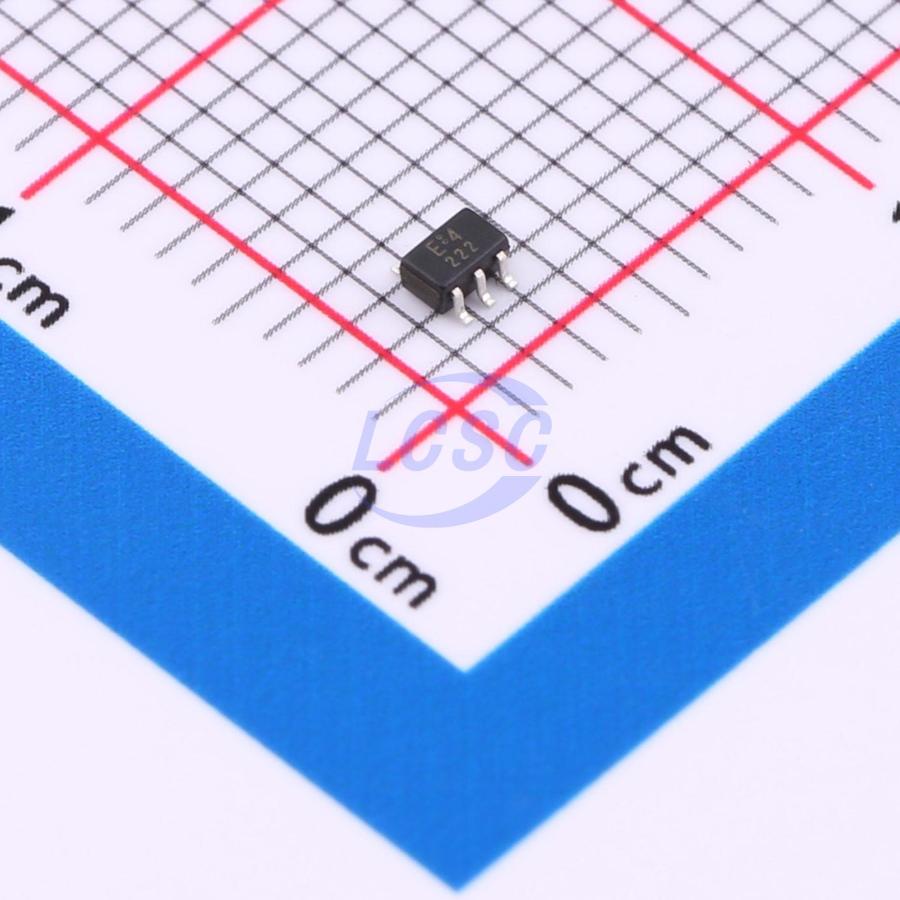

TC7S32FU,LF
OR Gate IC 1 Channel SSOP-5
SSOP-5ROHS3 CompliantActive
2-Input OR Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7S32FU,LF
- Store part #
- C7121123
- Package / case
- SSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C7121123
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.81 | ₹104.05 |
| 50+ | ₹16.27 | ₹813.50 |
| 150+ | ₹14.33 | ₹2,149.50 |
| 500+ | ₹11.89 | ₹5,945.00 |
| 3,000+ | ₹10.81 | ₹32,430.00 |
| 6,000+ | ₹10.16 | ₹60,960.00 |
5 × ₹20.81
₹104.05
excl. GST
₹122.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7S32FU,LF
₹104.05 for 5 + GST
Specifications
- Logic Family
- TC7S Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;170mV;180mV;260mV
- Propagation Delay
- 17ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 5.68V~5.8V;5.9V~6V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- High Speed: tₚd = 7 ns (typ.) at VCC = 5 V
- Low power dissipation: ICC = 1 μA (max) at Ta = 25 °C
- High noise immunity: Vₙₕ = Vₙₗ = 28% VCC (min)
- Output drive capability: 5 LSTTL Loads
- Symmetrical Output Impedance: |Iₒₕ| = Iₒₗ = 2 mA (min)
- Balanced propagation delays: tₚₗₕ ≈ tₚₕₗ
- Wide operating voltage range: VCC = 2 to 6 V
