TOSHIBADatasheet (PDF)

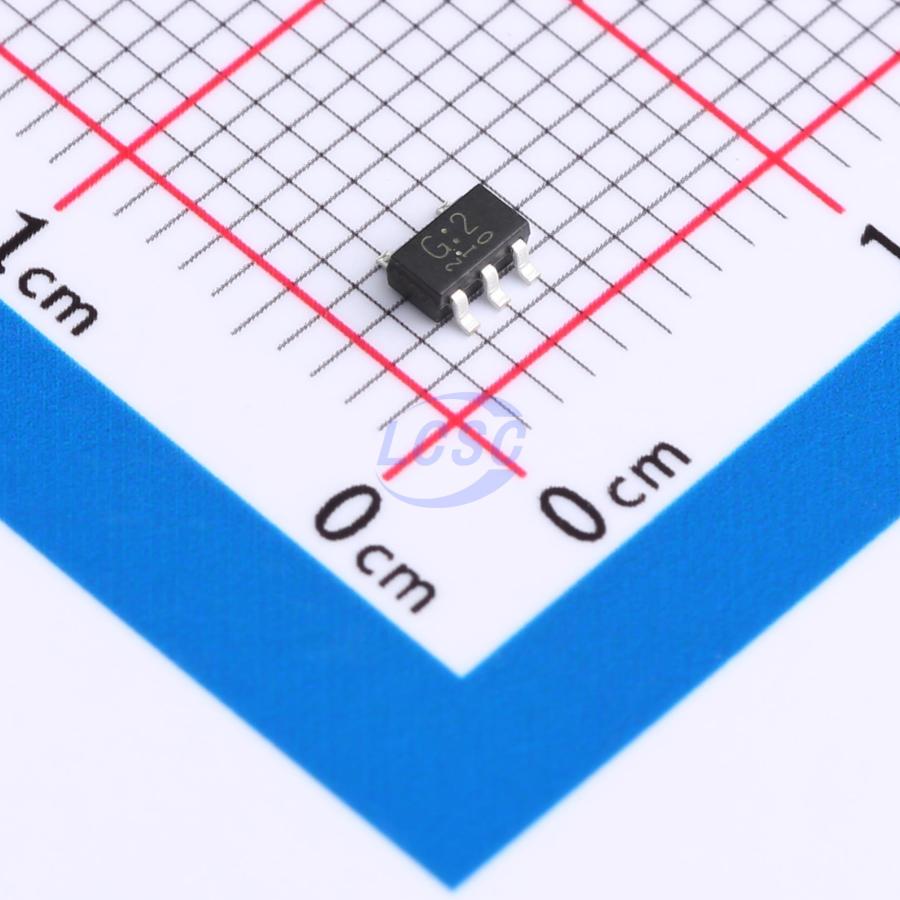

TC7SET08F,LJ(CT
AND Gate IC 1 Channel SC-74A(SOT-753)
SC-74A(SOT-753)ROHS3 CompliantActive
CMOS Digital Integrated Circuits 2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SET08F,LJ(CT
- Store part #
- C5156506
- Package / case
- SC-74A(SOT-753)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C5156506
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.68 | ₹138.40 |
| 50+ | ₹21.64 | ₹1,082.00 |
| 150+ | ₹19.06 | ₹2,859.00 |
| 500+ | ₹15.12 | ₹7,560.00 |
| 3,000+ | ₹13.69 | ₹41,070.00 |
| 6,000+ | ₹12.82 | ₹76,920.00 |
5 × ₹27.68
₹138.40
excl. GST
₹163.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SET08F,LJ(CT
₹138.40 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Logic Family
- TC7SET Series
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.94V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 4.5V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 4.2ns@5V,15pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.076 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125℃
- High-speed operation: tpd = 4.2 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
- Low power consumption: ICC = 2.0 μA (max.) (Ta = 25℃)
- TTL output compatible: VIL = 0.8 V (max.), VIH = 2.0 V (min.)
- 5.5 V tolerant inputs
- Balanced propagation delay: tpLH ≈ tpHL
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT1G08DBVR#C113521TI · SOT-23-5 | TI | SOT-23-5 | 18,010 | ₹11.92 · 18,010 in stock | View |
 | 74AHCT1G08W5-7#C460500DIODES · SOT-25-5 | DIODES | SOT-25-5 | 270 | ₹13.55 · 270 in stock | View |
 | 74AHCT1G08W5-TP#C54780775TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.85 · 2,960 in stock | View |
 | 74AHCT1G08GV-Q100,#C554563Nexperia · SC-74A | Nexperia | SC-74A | 200 | ₹16.76 · 200 in stock | View |
 | SN74AHCT1G08DBVR(UMW)#C20617901UMW · SOT-23-5 | UMW | SOT-23-5 | 530 | ₹6.91 · 530 in stock | View |
