TOSHIBADatasheet (PDF)

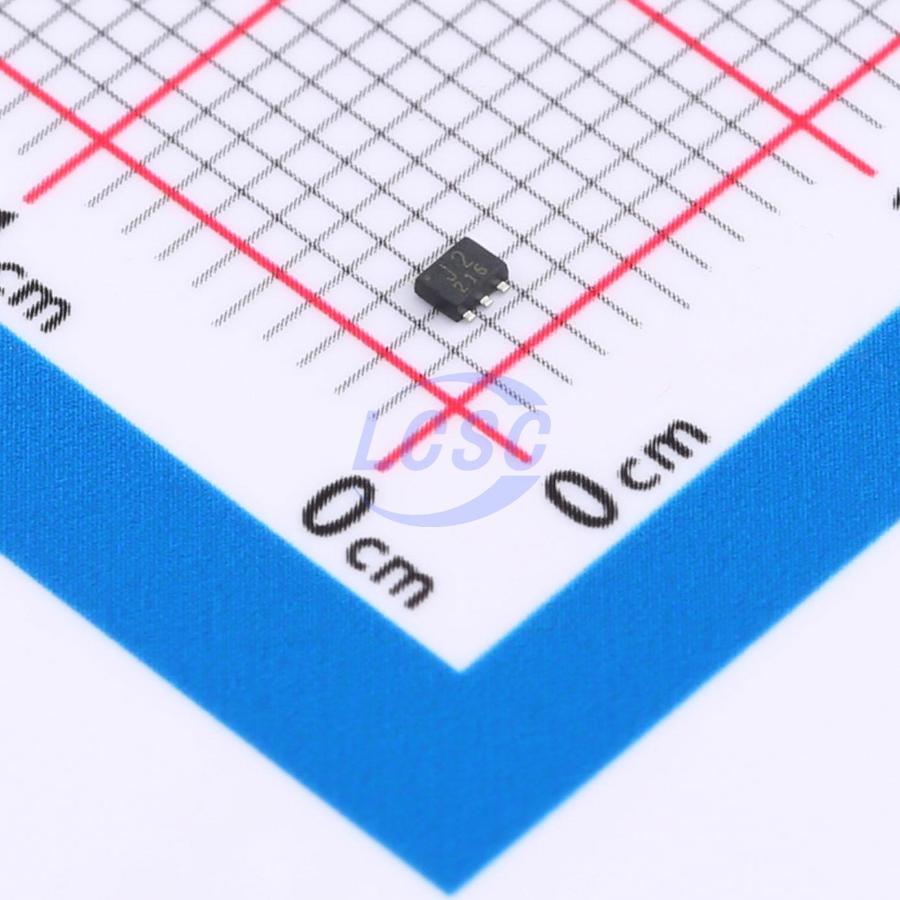

TC7SZ08FE,LJ(CT
AND Gate IC 1 Channel SOT-553
SOT-553ROHS3 CompliantActive
2-Input AND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ08FE,LJ(CT
- Store part #
- C7121131
- Package / case
- SOT-553
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,200 in stock
#C7121131
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.43 | ₹72.15 |
| 50+ | ₹11.31 | ₹565.50 |
| 150+ | ₹9.75 | ₹1,462.50 |
| 500+ | ₹8.57 | ₹4,285.00 |
| 2,500+ | ₹7.63 | ₹19,075.00 |
| 4,000+ | ₹7.17 | ₹28,680.00 |
5 × ₹14.43
₹72.15
excl. GST
₹85.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC7SZ08FE,LJ(CT
₹72.15 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input;Rear drive protection
- Logic Family
- TC7SZ Series
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 2.4ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.079 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 2.4 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC1G08X5#C48543228TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,705 | ₹11.05 · 3,705 in stock | View |
 | 74LVC1G08Z-7#C842517DIODES · SOT-553-5 | DIODES | SOT-553-5 | 3,970 | ₹12.77 · 3,970 in stock | View |
 | NL17SZ08XV5T2G#C146773onsemi · SOT-553-5 | onsemi | SOT-553-5 | 10 | ₹10.23 · 10 in stock | View |
 | NL17SZ08XV5T2GH#C4469396onsemi · SOT-553-5 | onsemi | SOT-553-5 | 100 | ₹13.90 · 100 in stock | View |
 | TC7SZ08FE,LJ#C5351370TOSHIBA · SOT-553 | TOSHIBA | SOT-553 | 5 | ₹20.97 · 5 in stock | View |
