TOSHIBADatasheet (PDF)

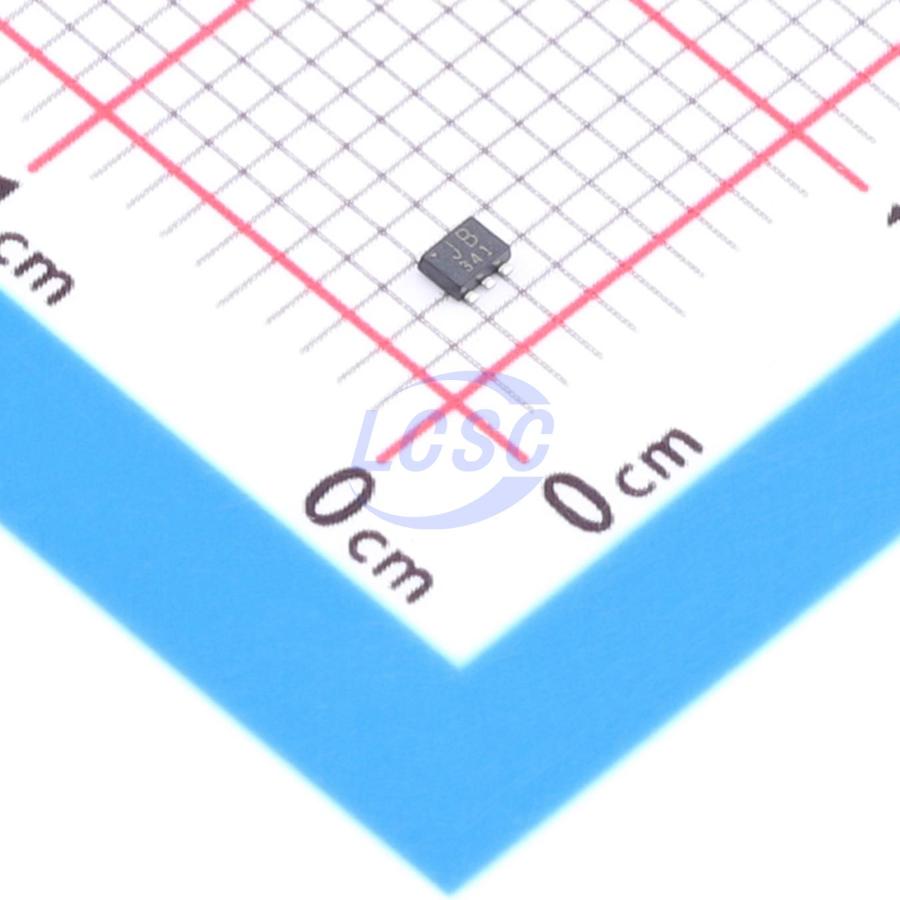

TC7SZ125FE,LJ(CT
1.65V~5.5V 1 1 2.6ns@5V,50pF SOT-553-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-553-5ROHS3 CompliantActive
Bus Buffer with 3-State Output
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ125FE,LJ(CT
- Store part #
- C2676800
- Package / case
- SOT-553-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,820 in stock
#C2676800
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.89 | ₹59.45 |
| 50+ | ₹10.37 | ₹518.50 |
| 150+ | ₹9.62 | ₹1,443.00 |
| 500+ | ₹9.04 | ₹4,520.00 |
| 2,500+ | ₹8.59 | ₹21,475.00 |
| 4,000+ | ₹8.36 | ₹33,440.00 |
5 × ₹11.89
₹59.45
excl. GST
₹70.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC7SZ125FE,LJ(CT
₹59.45 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 2uA
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Bus Buffer with 3-State Output
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 2.6 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TC7SZ126FE,LJ(CT#C2675580TOSHIBA · SOT-553-5 | TOSHIBA | SOT-553-5 | 3,390 | ₹15.65 · 3,390 in stock | View | |
 | TP74LVC1G07X5#C48543227TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 500 | ₹11.66 · 500 in stock | View |
 | TP74LVC1G17X5#C48543231TECH PUBLIC · SOT-553 | TECH PUBLIC | SOT-553 | 3,970 | ₹11.05 · 3,970 in stock | View |
 | 74LVC1G126Z-7#C842518DIODES · SOT-553-5 | DIODES | SOT-553-5 | 10 | ₹12.21 · 10 in stock | View |
 | 74LVC1G125Z-7#C460527DIODES · SOT-553-5 | DIODES | SOT-553-5 | 5 | ₹16.06 · 5 in stock | View |
