TOSHIBADatasheet (PDF)

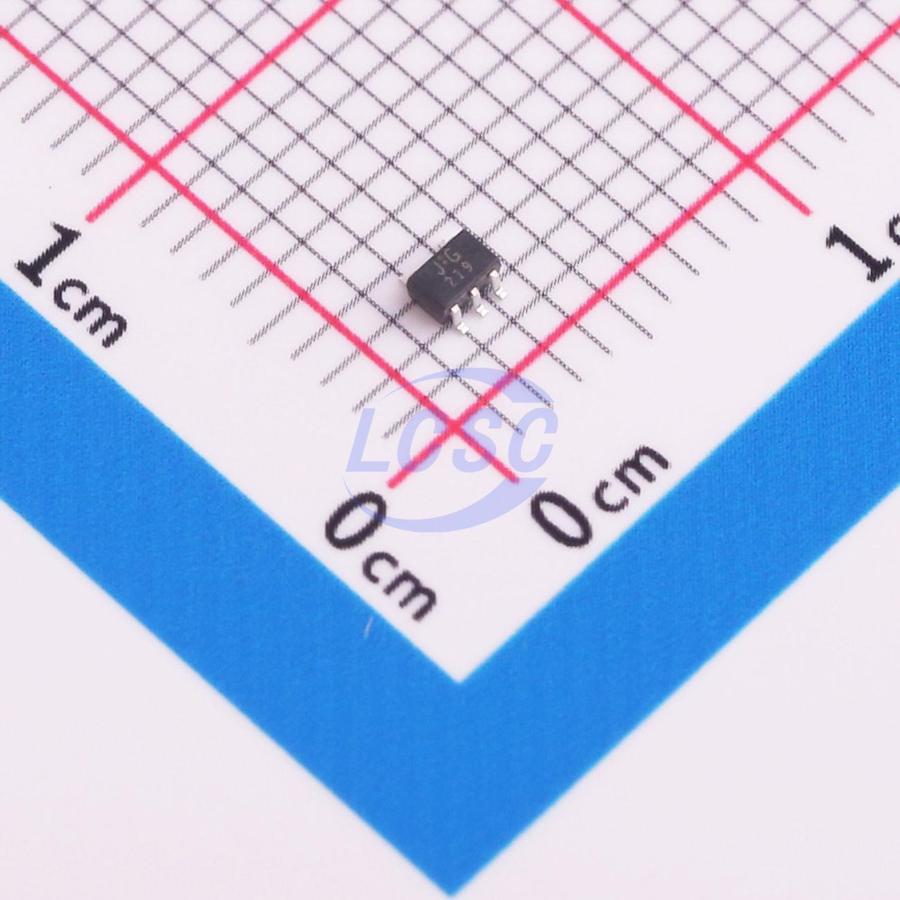

TC7SZ34FU,LJ(CT
1 Element 1 Bit per Element SSOP-5
SSOP-5ROHS3 CompliantActive
CMOS Digital Integrated Circuits
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ34FU,LJ(CT
- Store part #
- C5956626
- Package / case
- SSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,230 in stock
#C5956626
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.24 | ₹76.20 |
| 50+ | ₹12.01 | ₹600.50 |
| 150+ | ₹10.40 | ₹1,560.00 |
| 500+ | ₹9.18 | ₹4,590.00 |
| 3,000+ | ₹8.22 | ₹24,660.00 |
| 6,000+ | ₹7.73 | ₹46,380.00 |
5 × ₹15.24
₹76.20
excl. GST
₹89.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ34FU,LJ(CT
₹76.20 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Series
- TC7SZ
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 2uA
- Propagation Delay
- 2.4ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T(opr) = -40 to 125 °C
- High output current: ±24 mA (min) at V(CC) = 3.0 V
- Super high speed operation: t(pd) = 2.4 ns (typ.) at V(CC) = 5.0 V, C(L) = 50 pF
- Operation voltage range: V(CC) = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V(CC)
