TOSHIBADatasheet (PDF)

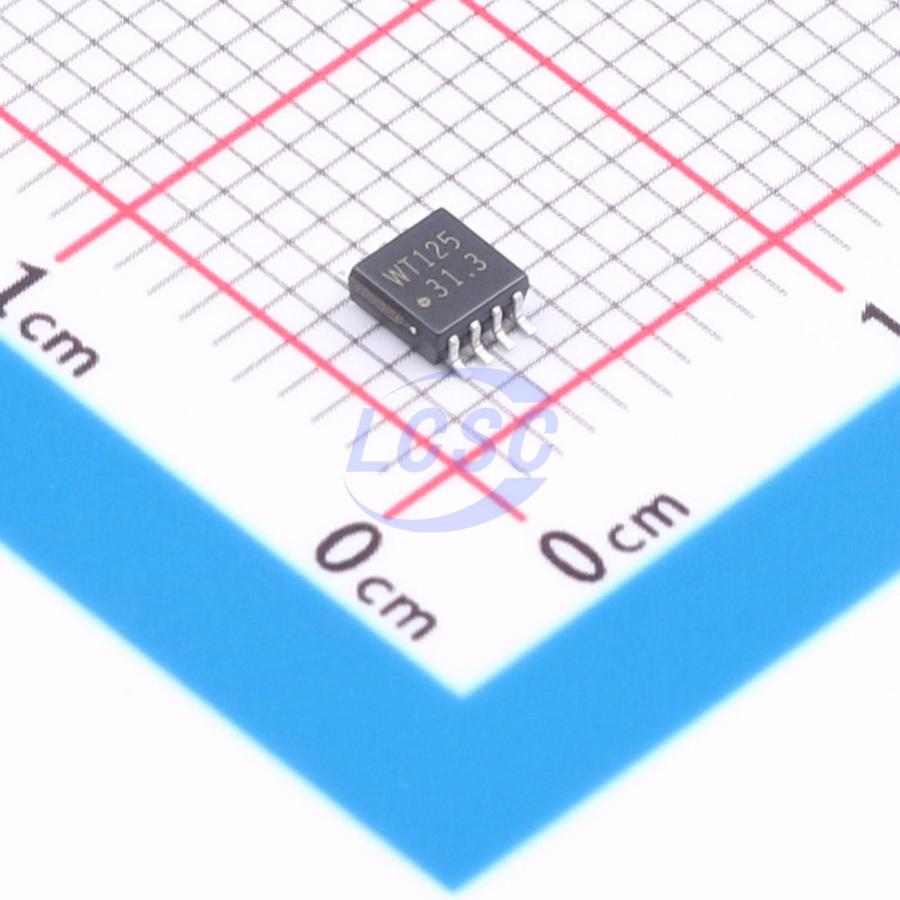

TC7WT125FU,LF
4.5V~5.5V 2 13ns@5V,50pF SM-8 Buffers, Drivers, Receivers, Transceivers RoHS
SM-8ROHS3 CompliantActive
Dual Bus Buffer
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WT125FU,LF
- Store part #
- C2676176
- Package / case
- SM-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,635 in stock
#C2676176
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.17 | ₹135.85 |
| 50+ | ₹23.52 | ₹1,176.00 |
| 150+ | ₹21.96 | ₹3,294.00 |
| 500+ | ₹20.00 | ₹10,000.00 |
| 3,000+ | ₹19.14 | ₹57,420.00 |
| 6,000+ | ₹18.61 | ₹1,11,660.00 |
5 × ₹27.17
₹135.85
excl. GST
₹160.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WT125FU,LF
₹135.85 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 2uA
- Propagation Delay
- 13ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
The TC7WT125FU is a high speed CMOS Dual Bus Buffers fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The input threshold levels are compatible with TTL output voltage. The require 3 - state control input G to be set high to place the output Y into the high impedance. All inputs are equipped with protection circuits against static discharge or transient excess voltage. Weight: 0.02 g (typ.)
Key features
- High speed: tpd = 13 ns (typ.) at VCC = 5 V
- Low power dissipation: Icc = 2 μA (max) at Ta = 25℃
- High noise immunity: VIL = 0.8 V (max), VIH = 2.0 V (min)
- Output drive capability: 15 LSTTL loads
- Symmetrical output impedance: IIOHI = IOL = 6 mA (min)
