TOSHIBADatasheet (PDF)

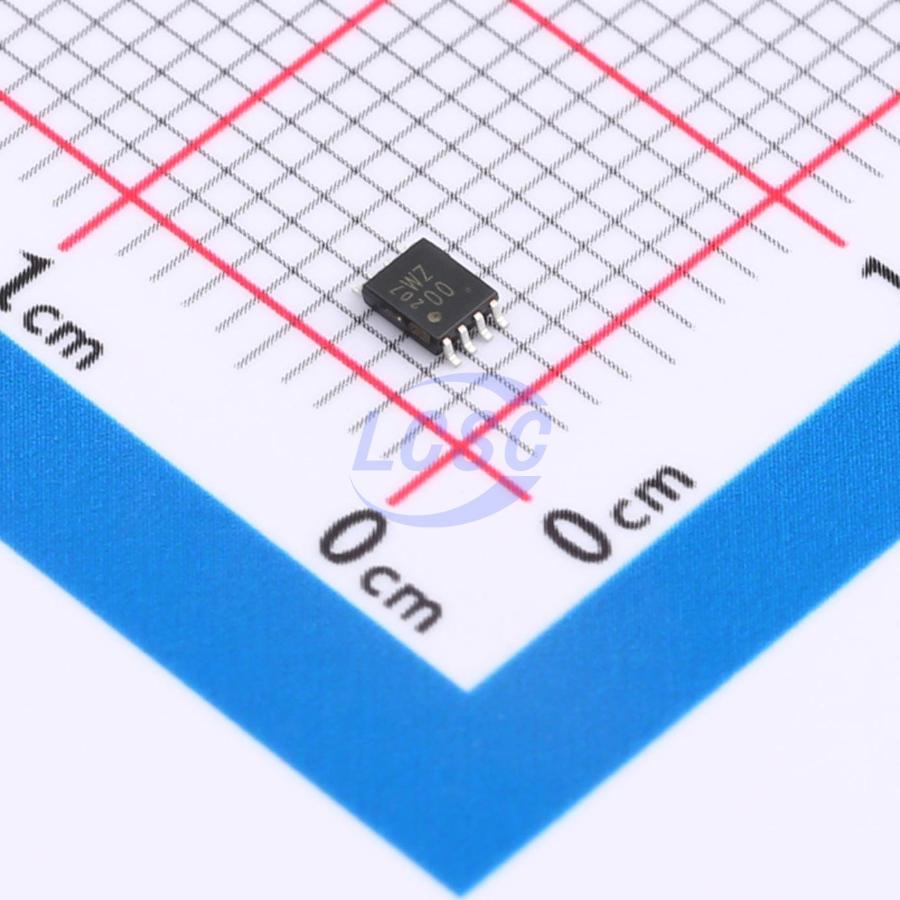

TC7WZ00FK,LJ(CT
10uA 1.65V~5.5V 3.6ns@5V,50pF SSOP-8 Gates and Inverters RoHS
SSOP-8ROHS3 CompliantActive
Dual 2-Input NAND Gate
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ00FK,LJ(CT
- Store part #
- C6552002
- Package / case
- SSOP-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,980 in stock
#C6552002
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.08 | ₹60.40 |
| 50+ | ₹11.77 | ₹588.50 |
| 150+ | ₹11.58 | ₹1,737.00 |
| 500+ | ₹11.38 | ₹5,690.00 |
5 × ₹12.08
₹60.40
excl. GST
₹71.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ00FK,LJ(CT
₹60.40 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input;Rear drive protection
- Logic Family
- TC7WZ Series
- Operating Temperature
- -40℃~+85℃
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 3.6ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Dual 2-Input NAND Gate
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T opr = -40 to 125 °C
- High output current: ±24 mA (min) (V CC = 3.0 V)
- Super high speed operation: t pd = 2.4 ns (typ.) (V CC = 5.0 V, C L = 50 pF)
- Operation voltage range: V CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V CC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC2G132DCTR#C2870897TI · SSOP-8 | TI | SSOP-8 | 5,039 | ₹82.75 · 5,039 in stock | View |
