TOSHIBADatasheet (PDF)

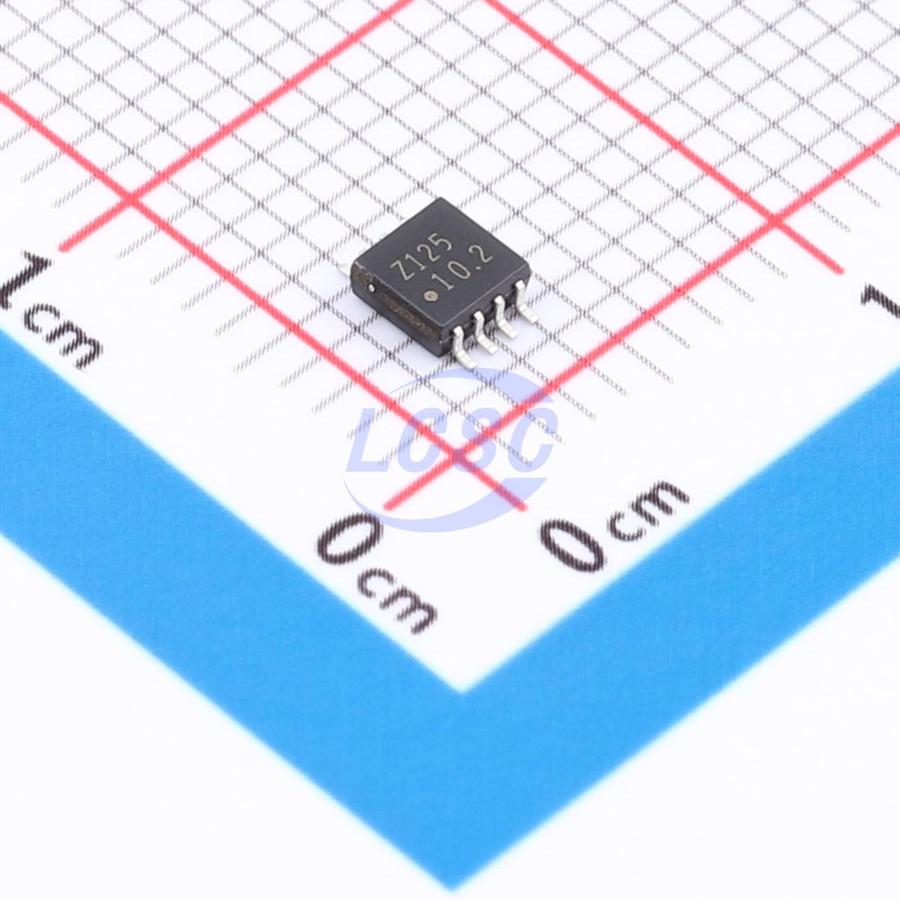

TC7WZ125FULJ(CT
1.65V~5.5V 2 2.6ns@5V,50pF SM-8 Buffers, Drivers, Receivers, Transceivers RoHS
SM-8ROHS CompliantActive
CMOS Digital Integrated Circuits
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ125FULJ(CT
- Store part #
- C28616475
- Package / case
- SM-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C28616475
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹49.98 | ₹49.98 |
| 10+ | ₹44.12 | ₹441.20 |
| 30+ | ₹41.29 | ₹1,238.70 |
| 100+ | ₹38.25 | ₹3,825.00 |
| 500+ | ₹36.51 | ₹18,255.00 |
| 1,000+ | ₹35.64 | ₹35,640.00 |
1 × ₹49.98
₹49.98
excl. GST
₹58.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ125FULJ(CT
₹49.98 for 1 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Channel Type
- Bidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.052 g
Overview
Dual Bus Buffer with 3-State Output
Key features
- Wide operating temperature range: Topr = -40 to 125 ℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 2.6 ns (typ.) at VCC = 5.0 Vz, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
