TOSHIBADatasheet (PDF)

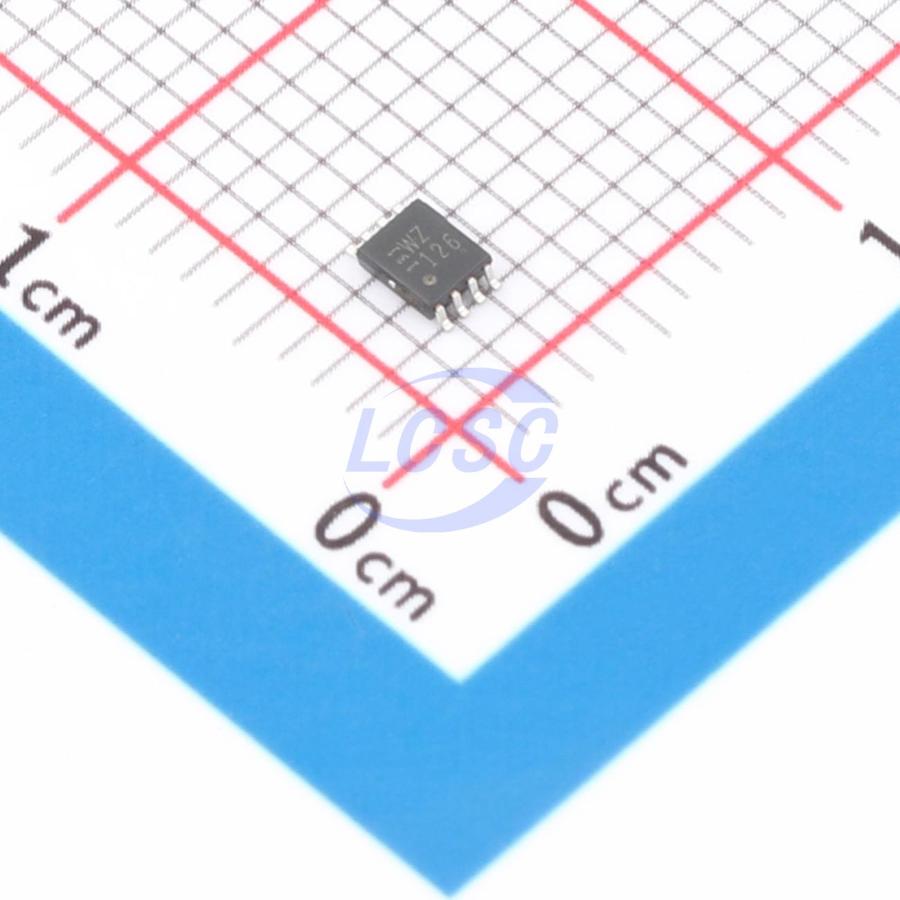

TC7WZ126FK,LXGJ(CT
1.65V~5.5V 1 2 2.6ns@5V,50pF US-8 Buffers, Drivers, Receivers, Transceivers
US-8RoHSActive
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ126FK,LXGJ(CT
- Store part #
- C7421351
- Package / case
- US-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C7421351
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.66 | ₹138.30 |
| 50+ | ₹24.36 | ₹1,218.00 |
| 150+ | ₹22.94 | ₹3,441.00 |
| 500+ | ₹21.17 | ₹10,585.00 |
| 3,000+ | ₹20.37 | ₹61,110.00 |
| 6,000+ | ₹19.91 | ₹1,19,460.00 |
5 × ₹27.66
₹138.30
excl. GST
₹163.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ126FK,LXGJ(CT
₹138.30 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Bidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
Dual Bus Buffer with 3-State Output
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T opr = -40 to 125 ℃
- High output current: ±24 mA (min) at V CC = 3.0 V
- Super high speed operation: t pd = 2.6 ns (typ.) at V CC = 5.0 V, C L = 50 pF
- Operation voltage range: V CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V CC
