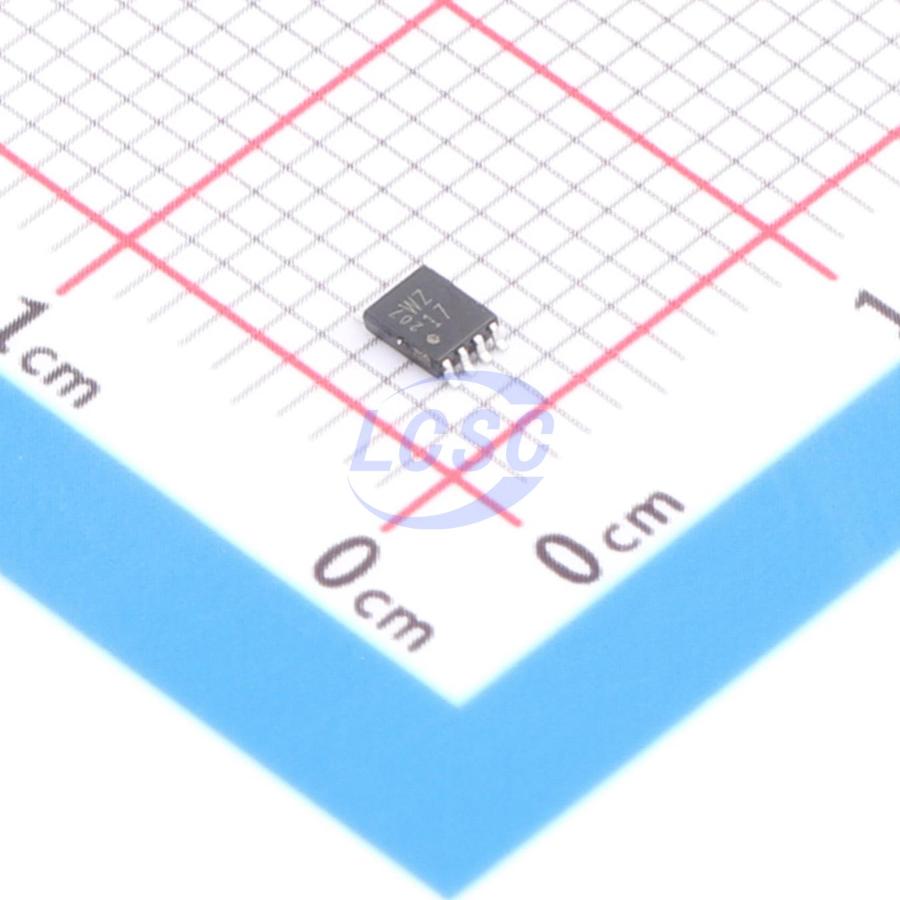

TC7WZ17FK,LJ(CT
Schmitt trigger 1.65V~5.5V 3 3.7ns@5V,50pF US-8 Buffers, Drivers, Receivers, Transceivers
US-8Active
CMOS Digital Integrated Circuits Silicon Monolithic
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7WZ17FK,LJ(CT
- Store part #
- C37792205
- Package / case
- US-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,893 in stock
#C37792205
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹46.50 | ₹46.50 |
| 10+ | ₹40.42 | ₹404.20 |
| 30+ | ₹37.81 | ₹1,134.30 |
| 100+ | ₹34.35 | ₹3,435.00 |
| 500+ | ₹33.04 | ₹16,520.00 |
| 1,000+ | ₹32.16 | ₹32,160.00 |
1 × ₹46.50
₹46.50
excl. GST
₹54.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7WZ17FK,LJ(CT
₹46.50 for 1 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Channel Type
- Bidirectional
- Number of Elements
- 3
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.7ns@5V,50pF
Packaging & compliance
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
Triple Schmitt Buffer
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: Topr = -40 to 125 ℃
- High output current: ±24 mA (min) at VCC = 3.0 V
- Super high speed operation: tpd = 3.7 ns (typ.) at VCC = 5.0 V, CL = 50 pF
- Operation voltage range: VCC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V VCC
