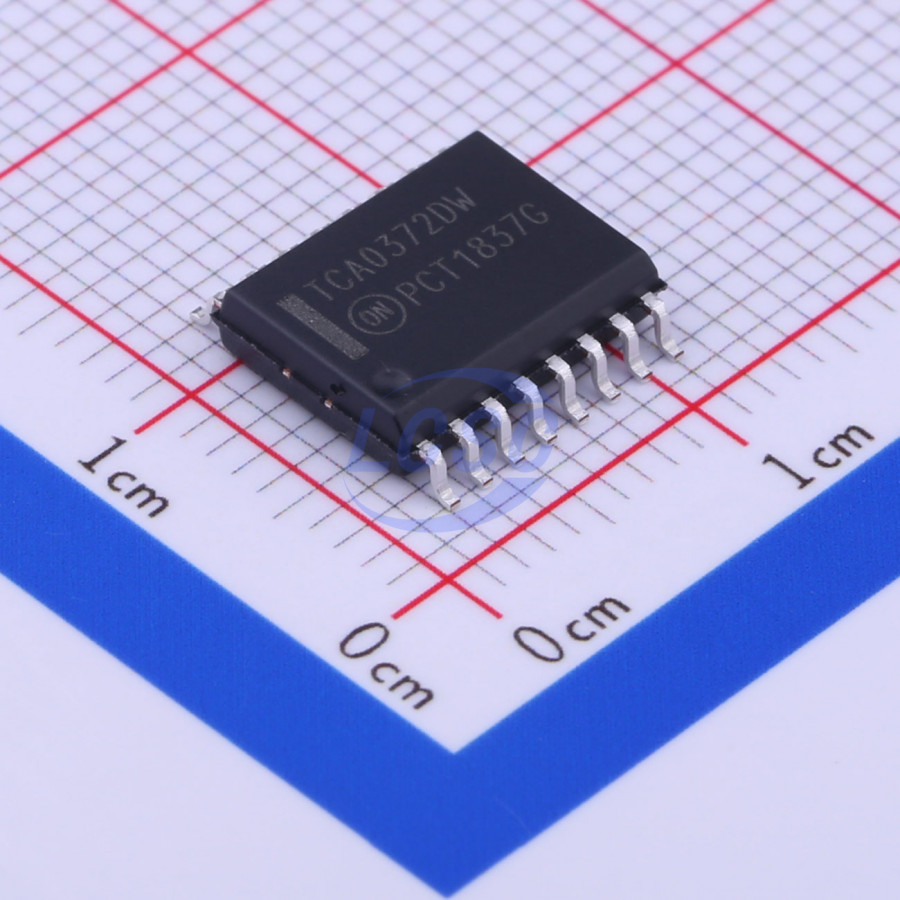

TCA0372DWR2G
1A 1 15mV 1.4V/us 90dB 500nA 5mA 1.4MHz SOIC-16-300mil Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-16-300milROHS3 CompliantActive
1.0 A Output Current, Dual Power Operational Amplifiers
- Manufacturer
- onsemi
- Manufacturer part #
- TCA0372DWR2G
- Store part #
- C362060
- Package / case
- SOIC-16-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,651 in stock
#C362060
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹182.89 | ₹182.89 |
| 10+ | ₹152.48 | ₹1,524.80 |
| 30+ | ₹135.54 | ₹4,066.20 |
| 100+ | ₹116.64 | ₹11,664.00 |
| 500+ | ₹96.01 | ₹48,005.00 |
| 1,000+ | ₹92.09 | ₹92,090.00 |
1 × ₹182.89
₹182.89
excl. GST
₹215.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TCA0372DWR2G
₹182.89 for 1 + GST
Specifications
- Output Current
- 1A
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 15mV
- Slew Rate
- 1.4V/us
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 500nA
- Input Offset Voltage Drift(Vos TC)
- 20uV/℃
- Quiescent Current
- 5mA
- Gain Bandwidth Product
- 1.4MHz
- Input Voltage Noise Density
- 22nV/√Hz@100kHz
- Dual Supply
- -40V~40V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.1 g
Overview
The TCA0372 is a monolithic circuit intended for use as a power operational amplifier in a wide range of applications, including servo amplifiers and power supplies. No deadband crossover distortion provides better performance for driving coils.
Applications
- servo amplifiers
- power supplies
Key features
- Output Current to 1.0 A
- Slew Rate of 1.3 V/µs
- Wide Bandwidth of 1.1 MHz
- Internal Thermal Shutdown
- Single or Split Supply Operation
- Excellent Gain and Phase Margins
- Common Mode Input Includes Ground
- Zero Deadband Crossover Distortion
- NCV devices are AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TCA0372BDWR2G#C604820onsemi · SOIC-16-300mil | onsemi | SOIC-16-300mil | 144 | ₹135.59 · 144 in stock | View |
 | TLE2144IDWR#C2060353TI · SOIC-16-300mil | TI | SOIC-16-300mil | 1 | ₹996.06 · 1 in stock | View |
