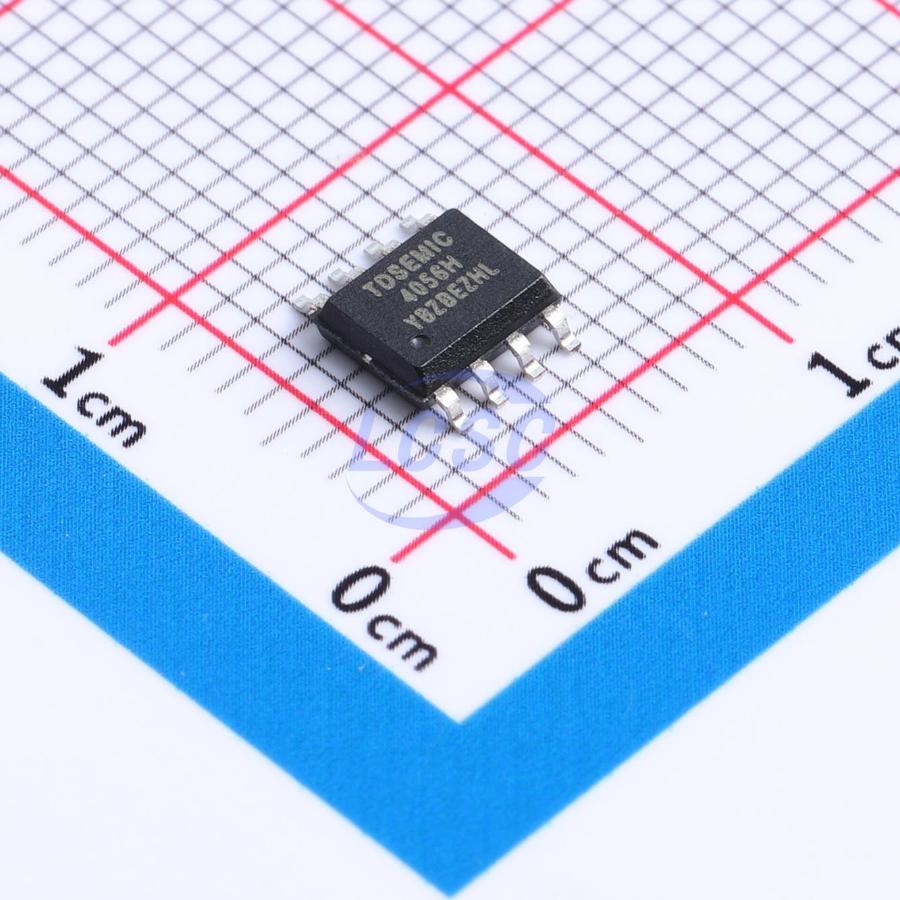

TD4056H
Lithium Battery 1.2A SOP-8-EP Battery Management RoHS
- Manufacturer
- TDSEMIC
- Manufacturer part #
- TD4056H
- Store part #
- C50675579
- Package / case
- SOP-8-EP
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,860 in stock
#C50675579
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.18 | ₹71.80 |
| 100+ | ₹6.32 | ₹632.00 |
| 300+ | ₹5.89 | ₹1,767.00 |
| 1,000+ | ₹5.56 | ₹5,560.00 |
| 4,000+ | ₹5.29 | ₹21,160.00 |
| 8,000+ | ₹5.16 | ₹41,280.00 |
10 × ₹7.18
₹71.80
excl. GST
₹84.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TD4056H
₹71.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Support
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overvoltage protection;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1.2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.112 g
Overview
This IC is a linear lithium battery charger with a 33V maximum input voltage rating and 1.2A maximum charge current, employing trickle/constant-current/constant-voltage charging. The charge voltage is set to 4.2V or 4.35V, and the charge current is programmable via an external resistor. When the battery voltage reaches 4.2V or 4.35V and the charge current drops to C/5 or C/10 of the programmed value, the IC terminates charging and enters standby mode. When the power supply is removed, the IC automatically enters a low-power standby state. This IC is suitable for USB power and adapter power operation. Thanks to the internal PMOSFET architecture and reverse-charge protection circuitry, no external sense resistors or isolation diodes are required.
Applications
- Neck massager gun
- E-cigarette
- Bluetooth earphone
- GPS
- Wearable device
Key features
- Recommended operating voltage: 4.5V~5.5V
- Maximum input voltage rating: 33V
- Hot-plug support at 28V (RC snubber on input)
- OVP threshold: 6.8V (typical)
- Programmable charge current up to 1.2A
- Preset charge voltage of 4.20V or 4.35V with ±1% accuracy
- No external MOSFET, sense resistor, or isolation diode required
- Constant current/constant voltage operation
- Charge status, charge termination, battery absent, and fault status indication
- Standby quiescent current: 1.0μA (typical)
- OV battery charge activation support
- BAT pin reverse polarity protection
- 2.9V trickle charge; C/5 or C/10 charge termination
- Automatic recharge
- Soft-start inrush current limiting
- Charge current derating begins at junction temperature 130°C; charging disabled at 155°C
- Operating temperature range: -40°C to 105°C
- Package options: ESOP8, DFN8 (3×3), DFN8 (2×2), PDFN8 (3×3), SOT23-5, SOT23-6
