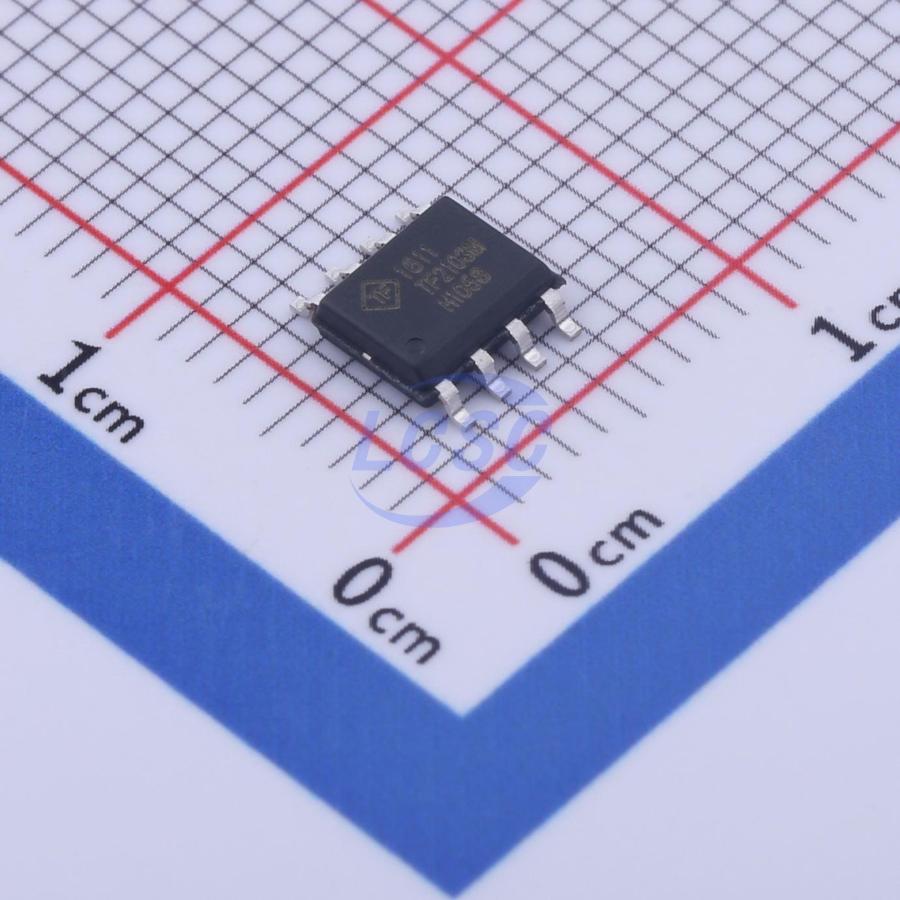

TF2103M-TAH
10V~20V 600mA 290mA SOIC-8 Gate Drivers
Half-Bridge Gate Driver
- Manufacturer
- TFSS
- Manufacturer part #
- TF2103M-TAH
- Store part #
- C2683770
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,925 in stock
#C2683770
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.34 | ₹50.34 |
| 10+ | ₹39.56 | ₹395.60 |
| 30+ | ₹34.88 | ₹1,046.40 |
| 100+ | ₹29.13 | ₹2,913.00 |
| 500+ | ₹26.43 | ₹13,215.00 |
| 1,000+ | ₹24.82 | ₹24,820.00 |
1 × ₹50.34
₹50.34
excl. GST
₹59.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TF2103M-TAH
₹50.34 for 1 + GST
Specifications
- Quiescent Current
- 350uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.338 g
Overview
The TF2103M is a high voltage, high speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half bridge configuration. High voltage process enables the TF2103M high side to switch to 600V in a bootstrap operation. The TF2103M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction. TF2103M has a fixed internal deadtime of 420ns (typical). The TF2103M is offered in a SOIC-8(N) and PDIP-8 package and operates over an extended -40 °C to +125 °C temperature range.
Applications
- Motor Controls
- DC-DC Converters
- AC-DC Inverters
- Motor Drives
Key features
- Floating high-side driver in bootstrap operation to 600V
- Drives two N-channel MOSFETs or IGBTs in a half bridge configuration
- Designed for enhanced performance in noisy motor applications
- 290mA source/600mA sink output current capability
- Outputs tolerant to negative transients
- Internal dead time of 420ns to protect MOSFETs
- Wide low side gate driver supply voltage: 10V to 20V
- Logic input (HIN and LIN*) 3.3V capability
- Schmitt triggered logic inputs
- Undervoltage lockout for Vcc (logic and low side supply)
- Extended temperature range: -40°C to +125°C
