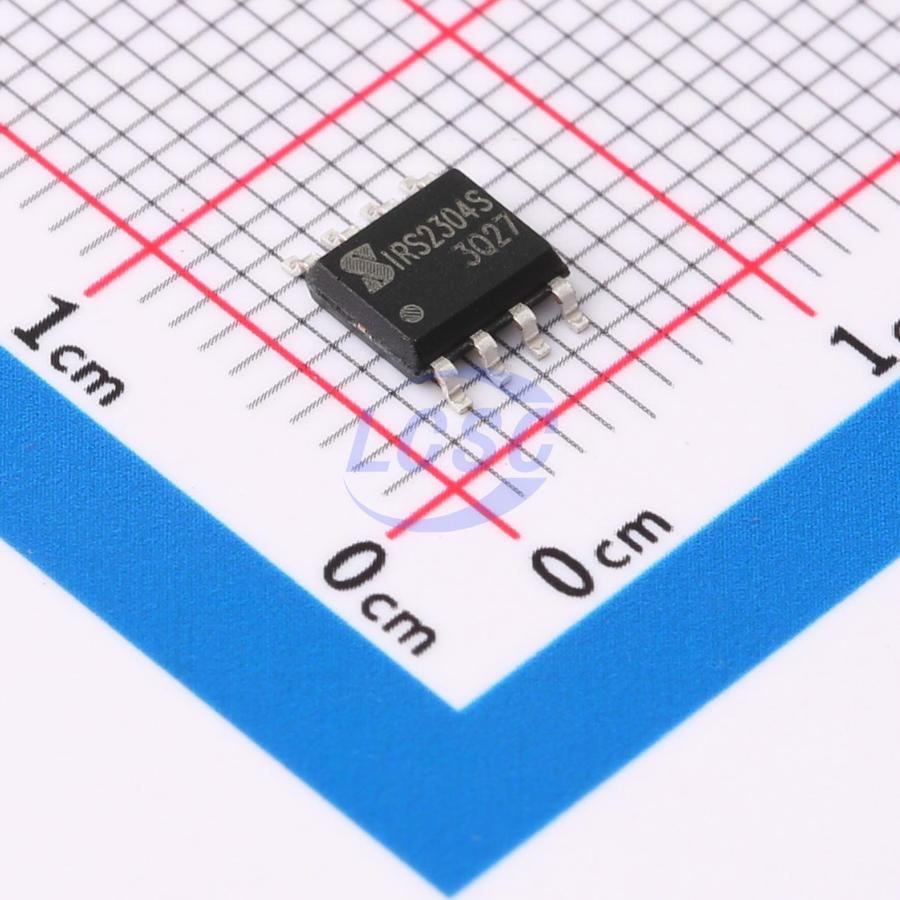

IRS2304STRPBF-JSM
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
High-voltage high and low side driver with integrated bootstrap diode
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IRS2304STRPBF-JSM
- Store part #
- C17701708
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,596 in stock
#C17701708
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.77 | ₹58.77 |
| 10+ | ₹52.05 | ₹520.50 |
| 30+ | ₹48.58 | ₹1,457.40 |
| 100+ | ₹45.33 | ₹4,533.00 |
| 500+ | ₹44.45 | ₹22,225.00 |
| 1,000+ | ₹43.37 | ₹43,370.00 |
1 × ₹58.77
₹58.77
excl. GST
₹69.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRS2304STRPBF-JSM
₹58.77 for 1 + GST
Specifications
- Low Level Delay Time
- 250ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 60uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
The IRS2304S is a high-voltage, high-speed power MOSFET driver with independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up immune CMOS technology enable a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, with logic levels as low as 3.3V. The floating channel can be used to drive an N-channel power MOSFET in a high-side configuration with operating voltages up to 600V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +650V
- Compatible with 3.3V, 5V, and 15V input logic
- Negative transient voltage tolerant with dV/dt immunity
- Allowable negative Vs capability: -9V
- Undervoltage lockout for both channels
- VCC undervoltage lockout threshold: 8.7V/7.7V
- VBS undervoltage lockout threshold: 8.2V/7.3V
- Turn-on/turn-off propagation delay: Ton/Toff = 250ns/150ns
- Propagation delay matching time < 50ns
- Cross-conduction prevention, dead time 130ns
- Typical output source/sink current capability: 0.6A/1A
- Wide operating temperature range: -40°C ~ 125°C
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L6388ED013TR-JSM#C17701712JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 13,199 | ₹52.47 · 13,199 in stock | View |
 | LN4201SF-G#C17701718JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 3,005 | ₹28.56 · 3,005 in stock | View |
 | TF2103M-TR#C17701704JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 60 | ₹50.87 · 60 in stock | View |
 | LF2103NTR-JSM#C17701707JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 89 | ₹57.63 · 89 in stock | View |
 | IR2304STRPBF-JSM#C17701715JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 4,285 | ₹52.07 · 4,285 in stock | View |
